ctrlX I/O (IP20)
ctrlX I/O opens up completely new possibilities for connectivity and networking. On the one hand, the I/O range is used for horizontal and vertical integration
on the other hand, it represents a functional extension of the control platform ctrlX CORE. This provides users with comprehensive communication and performance enhancements, as well as I/O modules geared towards future technologies such as 5G, TSN and AI.
The setup is compact, modular and robust - resulting in high savings on the top hat rail: up to 50% less space is required in the control cabinet. Mounting and wiring can be realized without tools. The flexible and powerful solution features, among other things, openness for the EtherCAT ecosystem, flexible machine topologies and diverse communication standards. Web-based configuration and diagnostics, Plug & Run, and integrated monitoring functions take engineering to a new level. ctrlX I/O is perfectly tailored to ctrlX CORE. The mapping in the ctrlX Data Layer enables simple I/O access by all apps or applications. Field and management levels are easily linked even without PLC. Bus Coupler The ctrlX I/O bus modules XB-xx-xx enable the integration of ctrlX I/O in the EtherCAT® network. They provide topology modules for EtherCAT® decoupling or expansion within the I/O station. The bus couplers supply the I/O station with power for the logic and peripheral level. In addition, they monitor the current and voltage supply values.
The setup is compact, modular and robust - resulting in high savings on the top hat rail: up to 50% less space is required in the control cabinet. Mounting and wiring can be realized without tools. The flexible and powerful solution features, among other things, openness for the EtherCAT ecosystem, flexible machine topologies and diverse communication standards. Web-based configuration and diagnostics, Plug & Run, and integrated monitoring functions take engineering to a new level. ctrlX I/O is perfectly tailored to ctrlX CORE. The mapping in the ctrlX Data Layer enables simple I/O access by all apps or applications. Field and management levels are easily linked even without PLC. Bus Coupler The ctrlX I/O bus modules XB-xx-xx enable the integration of ctrlX I/O in the EtherCAT® network. They provide topology modules for EtherCAT® decoupling or expansion within the I/O station. The bus couplers supply the I/O station with power for the logic and peripheral level. In addition, they monitor the current and voltage supply values.

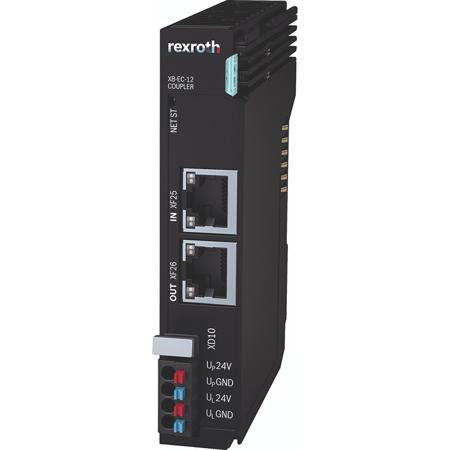

ctrlX I/O Series Bus Coupler for Use with EtherCAT Master, 24 V dc
Manufacturer:
Bosch RexrothManufacturer Part No:
R911406090
Enrgtech Part No:
ET26071655
Warranty:
Manufacturer
£ 162.76
Checking for live stock
Accessory Type:
EtherCAT Bus coupler
Series:
ctrlX I/O
For Use With:
EtherCAT Master
Supply Voltage:
24 V dc
Mounting Type:
Din Rail
Maximum Operating Temperature:
-25°C - +55°C
