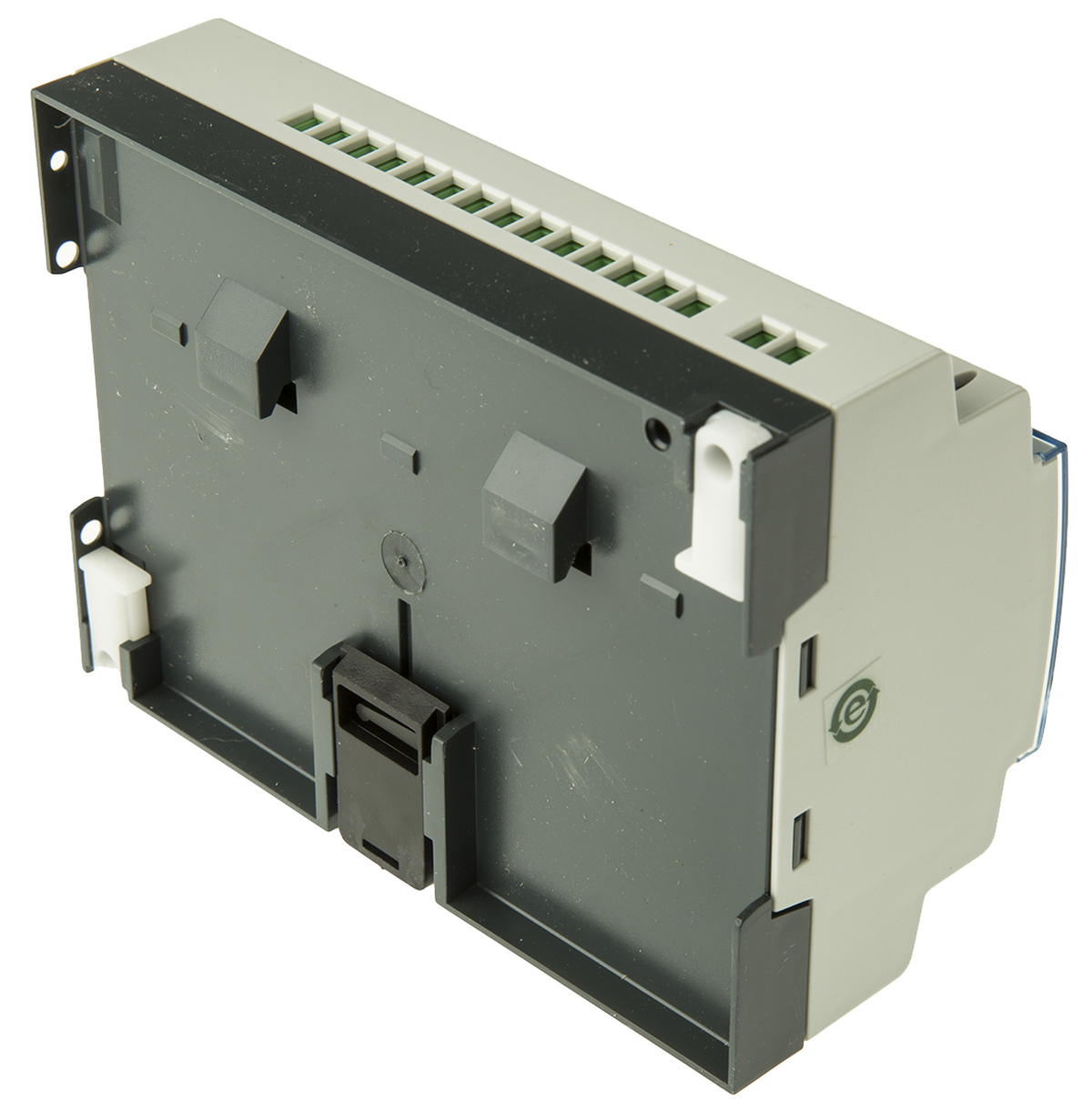

Millenium 3 Series Logic Module, 230 V ac Supply, Relay Output, 12-Input, Digital Input

Manufacturer Series:

Millenium 3

Number of Inputs:

12

Output Type:

Relay

Supply Voltage:

230 V ac

Input Type:

Digital

Number of Outputs:

8

Mounting Type:

DIN Rail

Programming Language Used:

Ladder Logic

Length:

100mm

Programming Interface:

Front Panel

Display Included:

Yes

Communication Port Type:

Serial, USB

Minimum Operating Temperature:

-20°C

Dimensions:

100 x 71.2 x 68 mm

Width:

71.2mm

Depth:

68mm

Program Capacity:

368 bits

Number of Communication Ports:

2

Output Current:

8 A

Maximum Operating Temperature:

+55°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=34760&DisplayLogo=False
