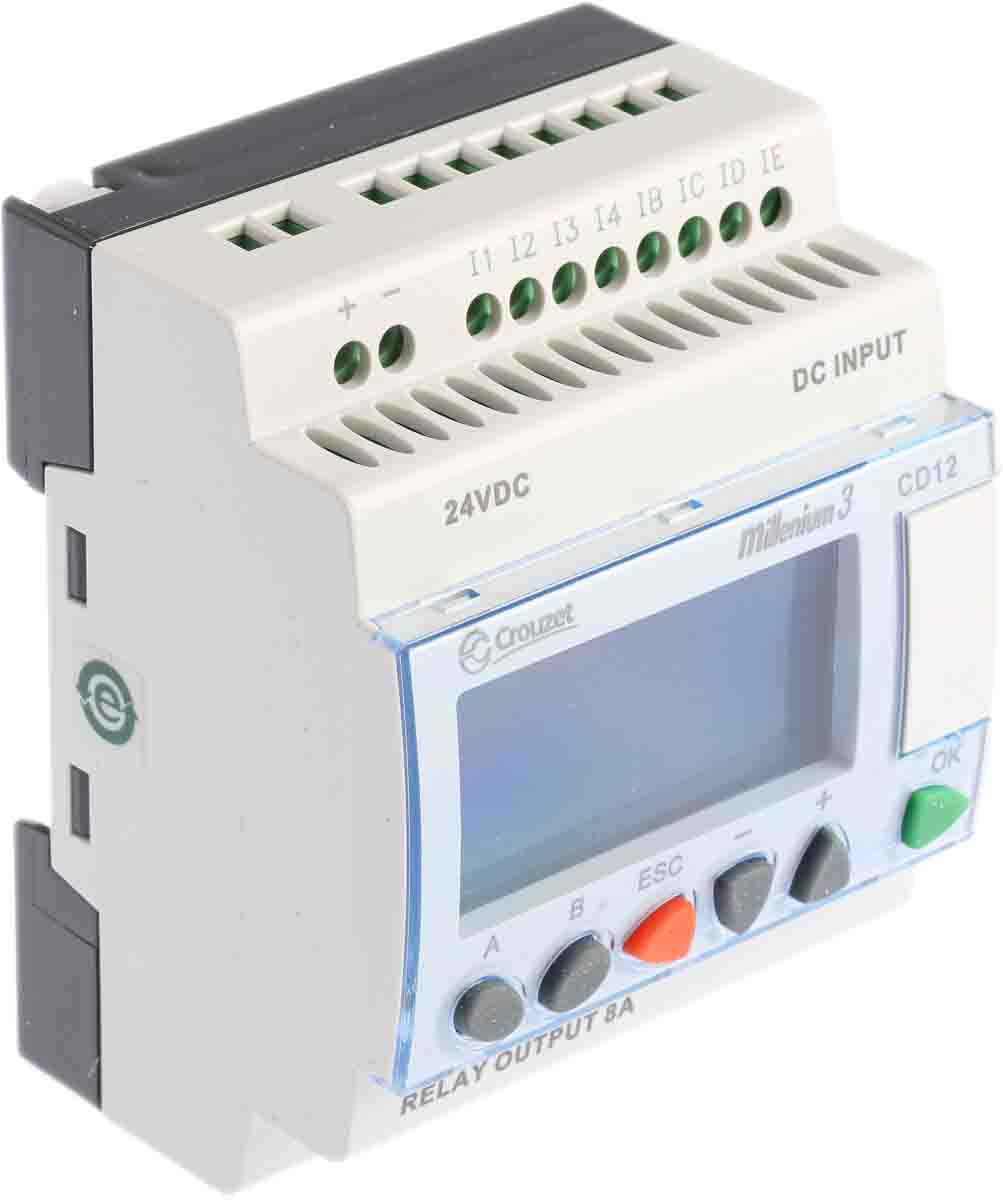

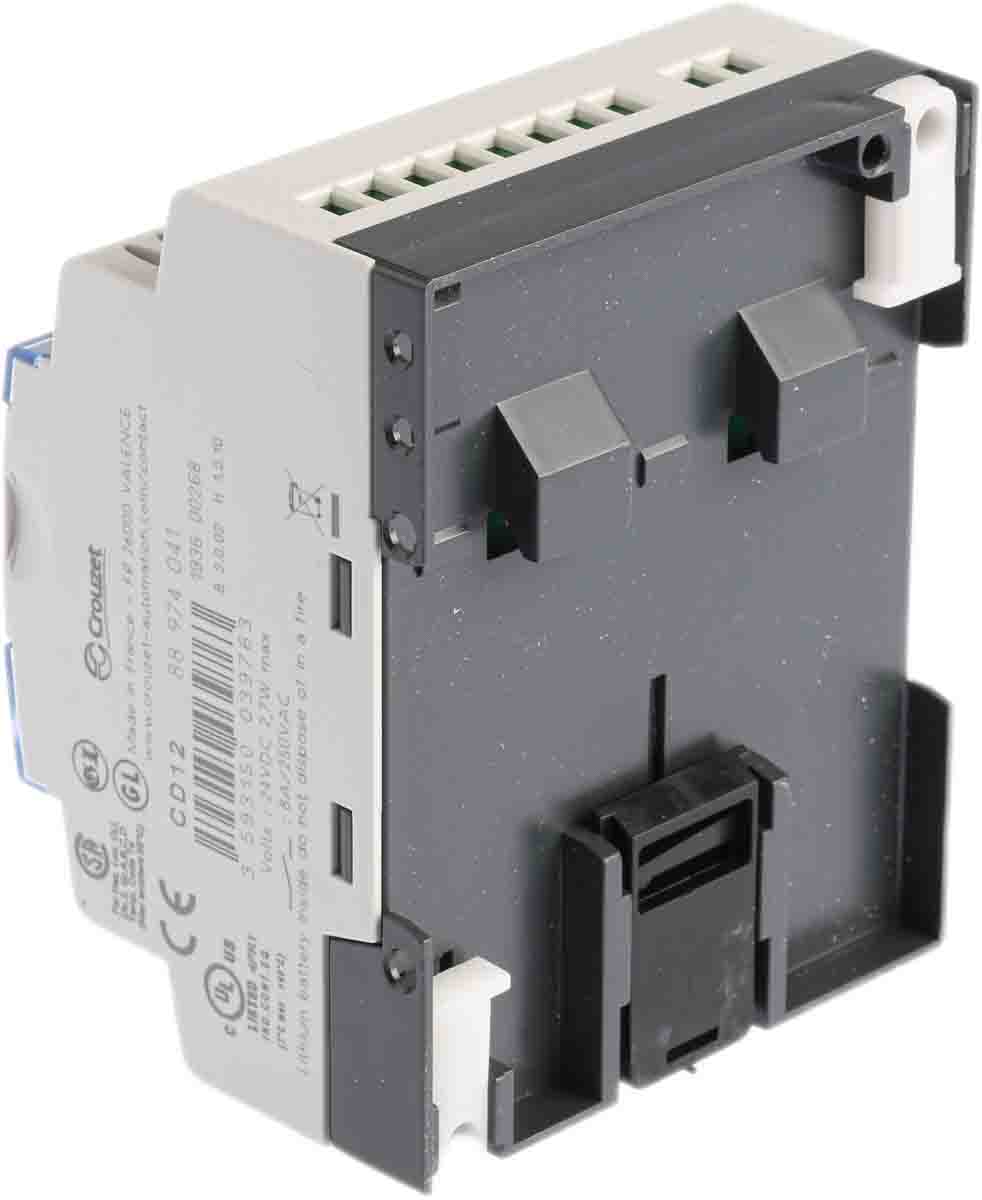

Crouzet Logic Module Starter Kit The Crouzet Millenium 3 series logic module starter kit consists of the latest generation of the Millenium compact version CD12/CD20 series with 8 digital(including 4 analogues) inputs and 4 relay outputs of 8A contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a voltage rating of 24VDC.
Each standard kit includes:
1 standard Millenium 3 (CD12 or 20)
1 USB link cable: PC → Millenium 3

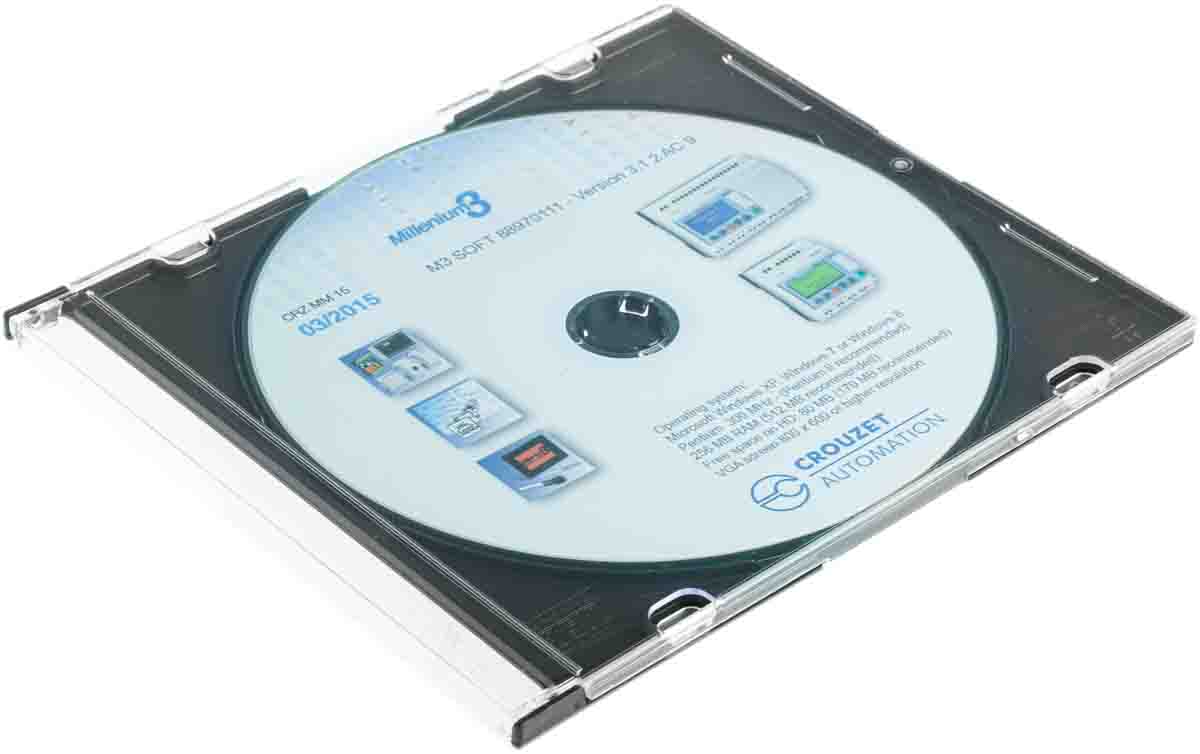

1 interactive CD ROM including the software workshop, application library and technical brochures, the library of specific functions
Crouzet Millenium 3
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming. Features and Benefits Operating temperature ranges between -20°C and +55°C
Battery backup
Highly visible blue LCD with 4 lines of 18 characters
and configurable backlighting
Allow the use of the entire library of specific functions
blocs of the software workshop
Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR
(0-20 mA/Pt100 with converters)
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
LCD display
Memory size 368bits Applications Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems Certifications CSA certified
UL approved
