Zelio Compact Basic Schneider Electric Zelio Logic 2 Smart Relay Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings. With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options. Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O. The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages. User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.

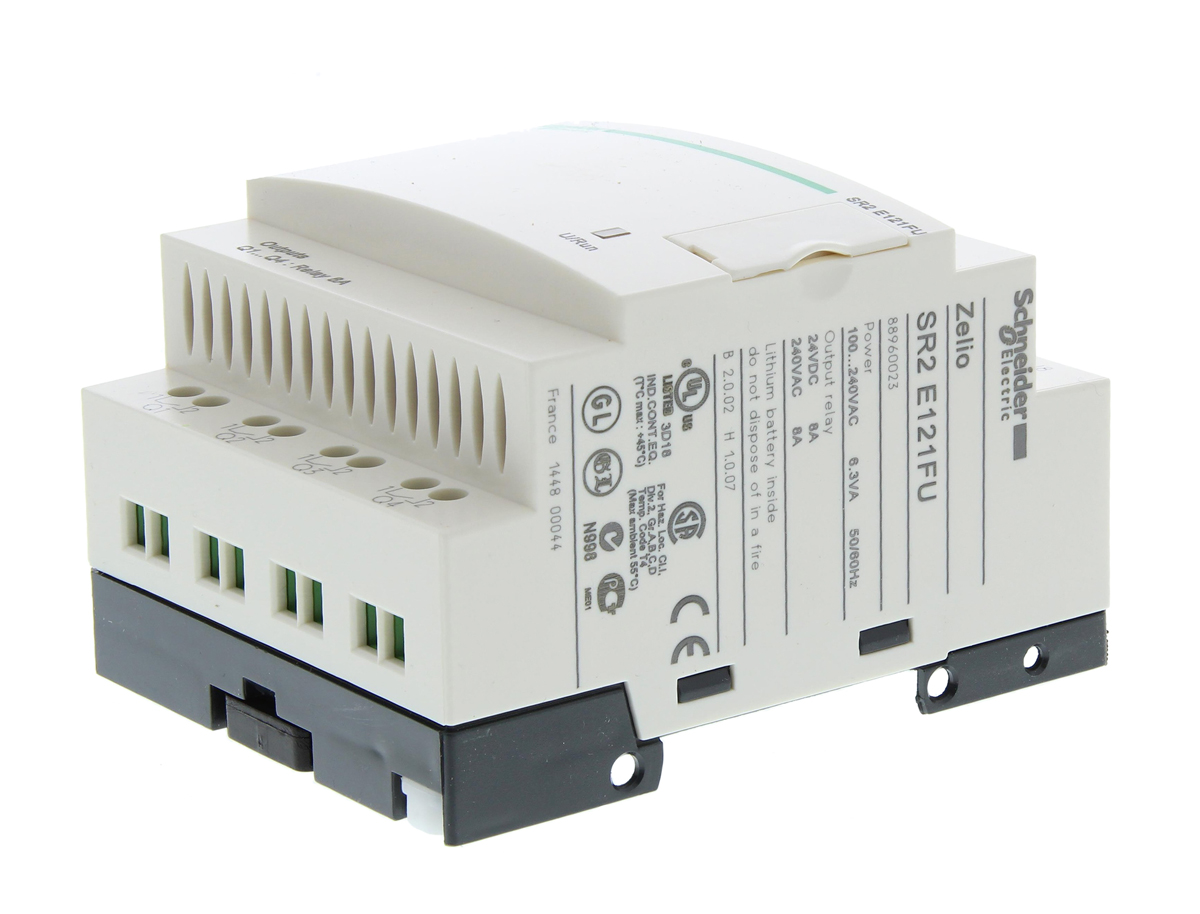

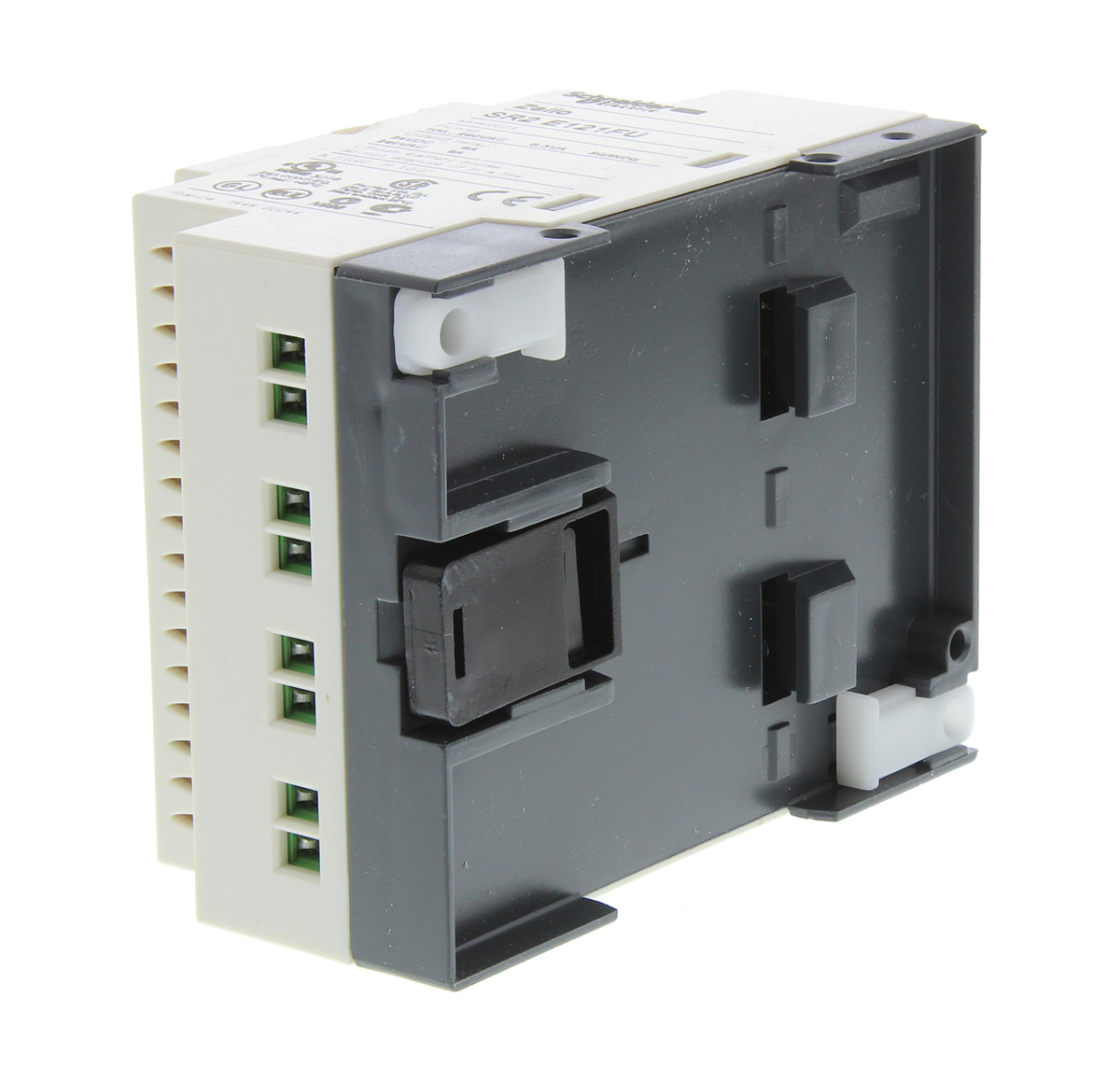

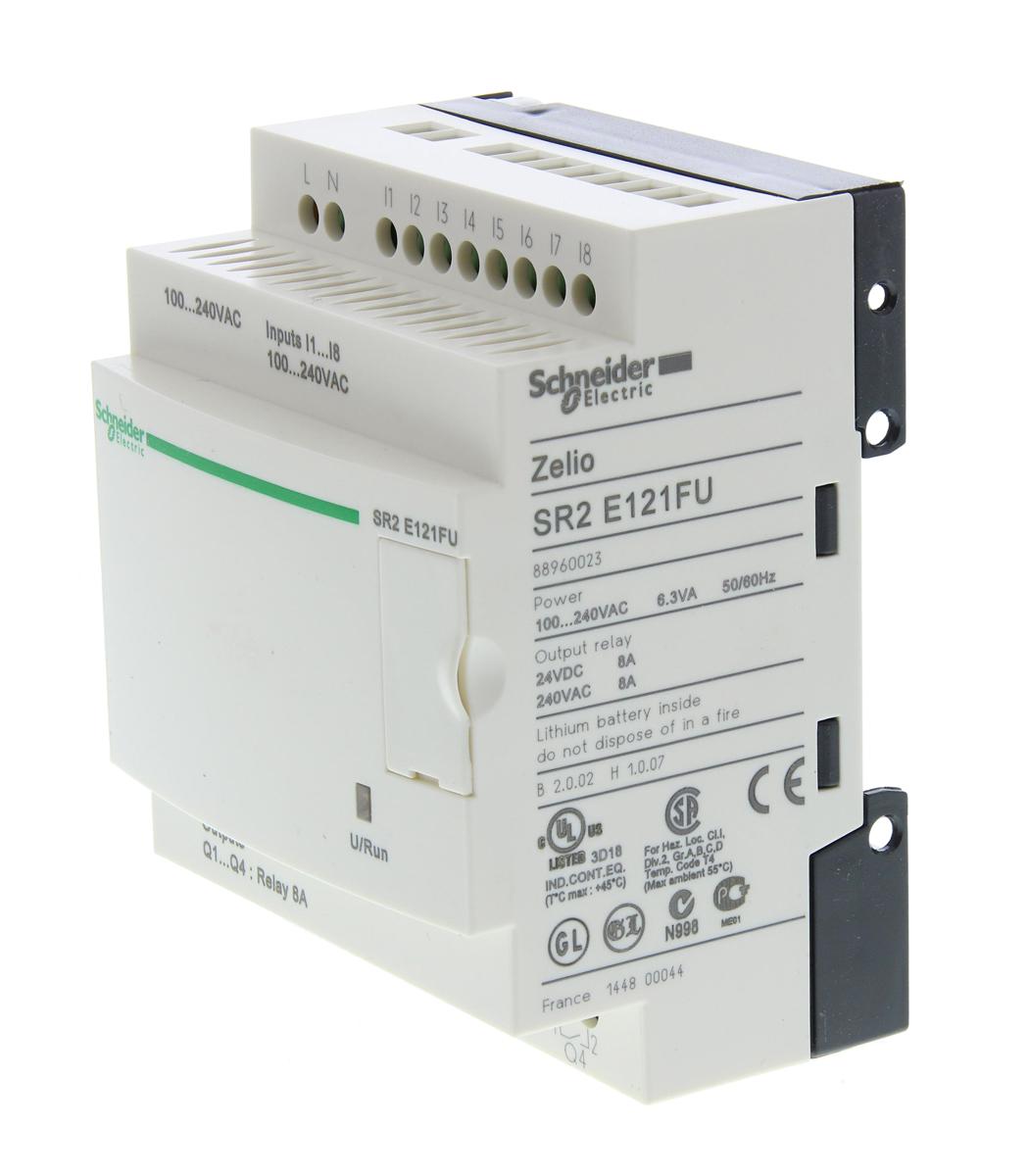

Schneider Electric Zelio Logic Logic Module, 100 → 240 V ac, 8 x Input, 4 x Output Without Display

Manufacturer:
Manufacturer Part No:
SR2E121FU
Enrgtech Part No:
ET13863603
Warranty:
Manufacturer
£ 195.02
Checking for live stock
Number of Outputs:
4
Better World Verification:
Green Premium
Better World Product:
Yes
Dimensions:
71.2 x 107.6 x 59.5 mm
Mounting Type:
DIN Rail
Length:
71.2mm
Output Type:
Relay
Manufacturer Series:
Zelio Logic
Width:
107.6mm
Depth:
59.5mm
Supply Voltage:
100 → 240 V ac
Input Type:
Discrete
Programming Language Used:
FBD, Ladder Logic
Programming Interface:
Computer, Operating Panel
Maximum Operating Temperature:
+55°C
Minimum Operating Temperature:
-20°C
Number of Inputs:
8
pdf icon
Datasheet(Technical Reference)
pdf icon
RS OUR OFFER - ZELIO(Technical Reference)
pdf icon
Zelio Logic Selection Guide(Technical Reference)
pdf icon
Zelio Logic 2 Smart Relay User Manual(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
