Modicon M580 - Dual Ethernet and X-bus Backplanes
The M580 PAC is compatible with dual Ethernet and X-bus backplanes.
One Ethernet switch is embedded in the backplane with connectivity to some slots on the backplane (not all slots have Ethernet connectivity).
X-bus functionality is preserved and conforms to the legacy implementation and specification. The X-bus will be used in a subset of modules on the Ethernet backplane. Ethernet and X-bus backplanes
The M580 backplanes provide power supply for all modules in the rack
Available with 4, 8 or 12 slots
One Ethernet switch is embedded in the backplane with connectivity to some slots on the backplane (not all slots have Ethernet connectivity).
X-bus functionality is preserved and conforms to the legacy implementation and specification. The X-bus will be used in a subset of modules on the Ethernet backplane. Ethernet and X-bus backplanes
The M580 backplanes provide power supply for all modules in the rack
Available with 4, 8 or 12 slots

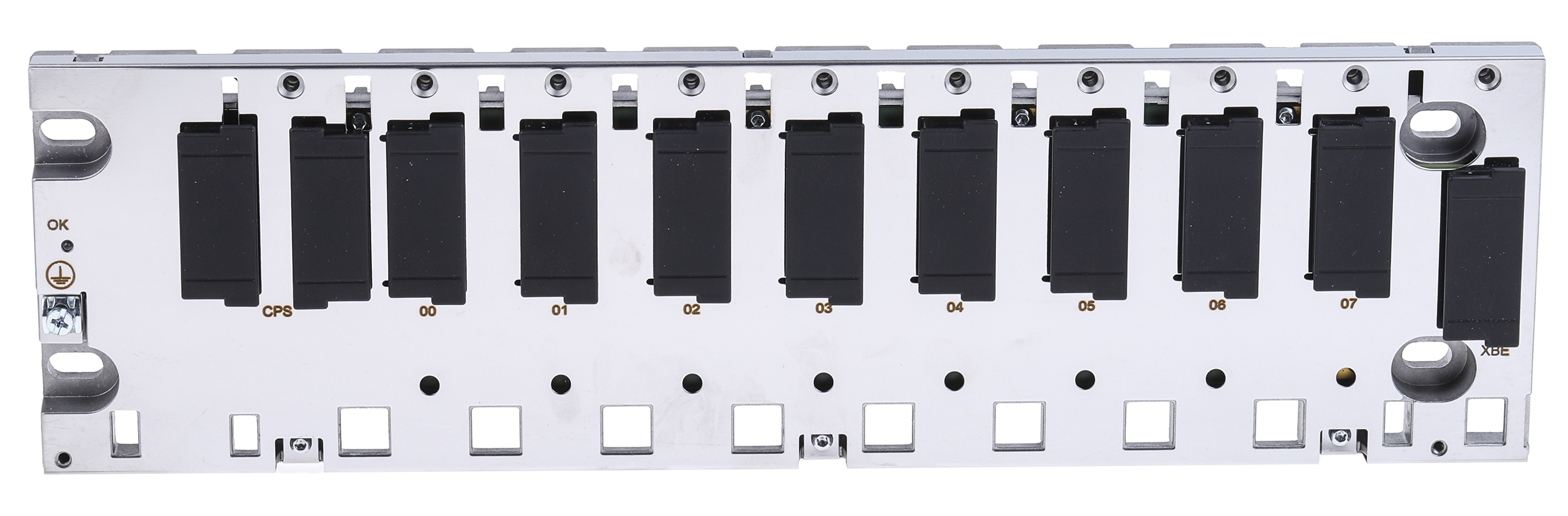

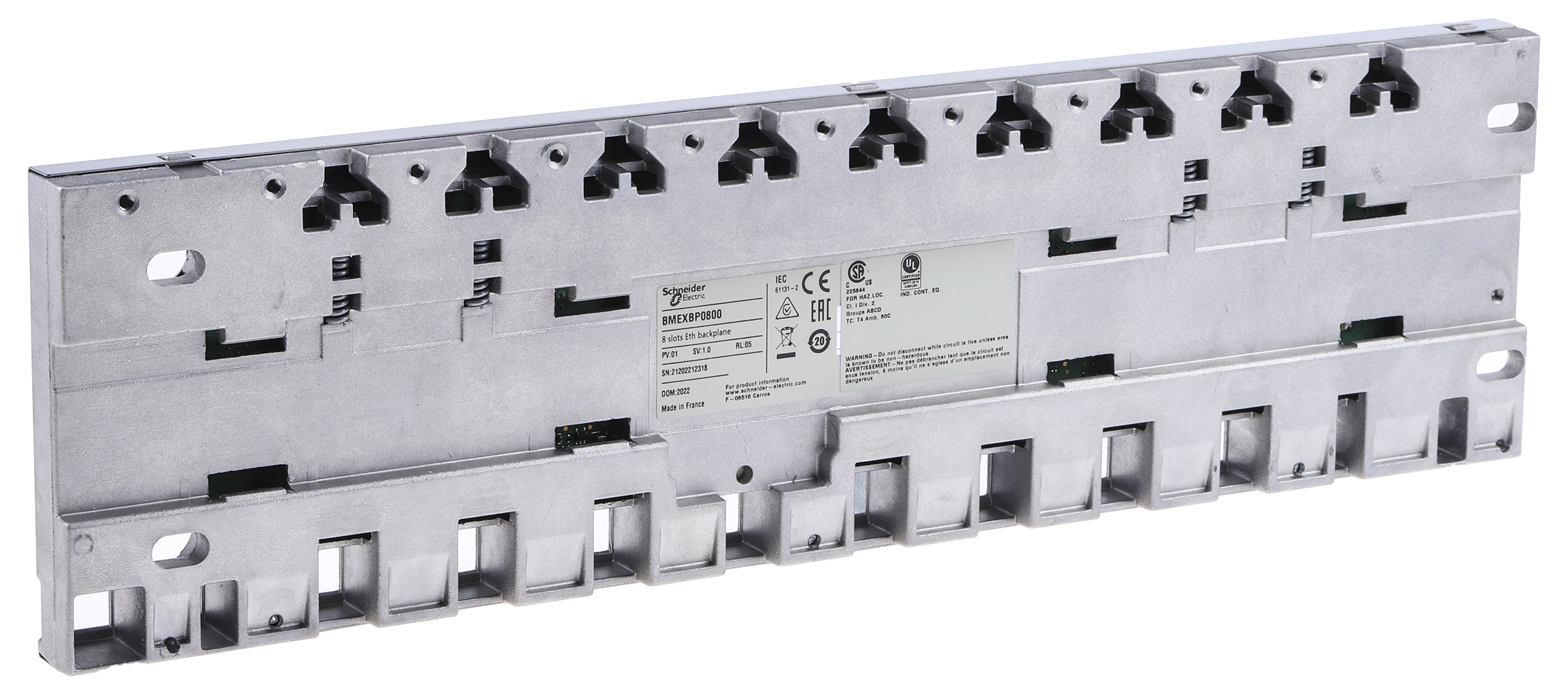

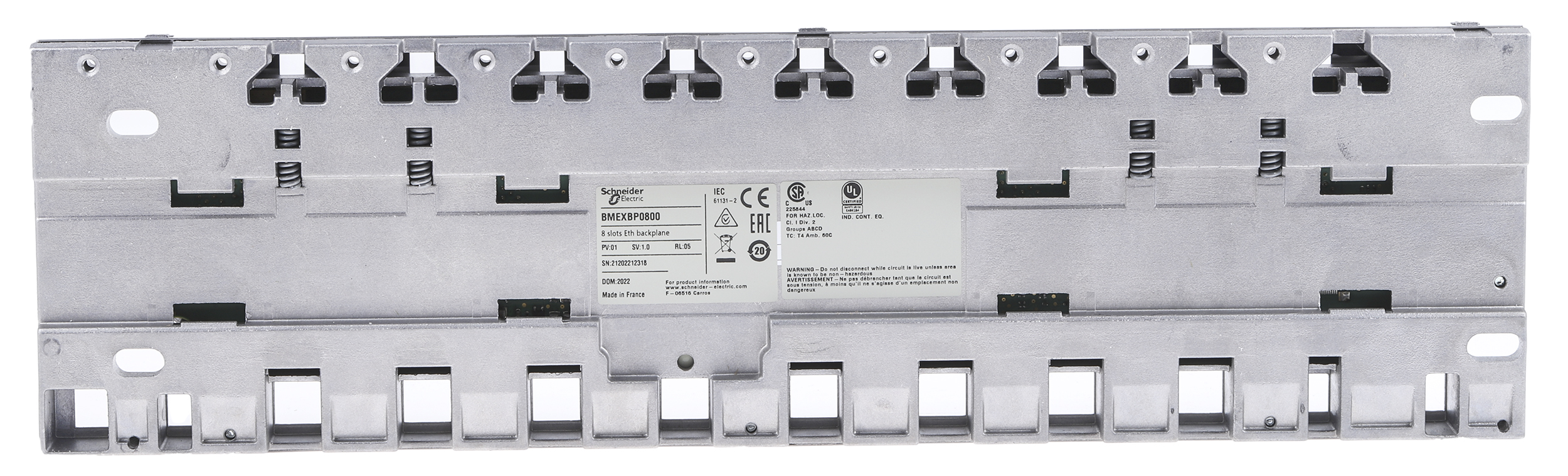

BMEXBP Series Backplane for Use with BMEP58 Processor, BMXCPS Power Supply, I/O Module, Specific
Manufacturer:
Schneider Electric
Manufacturer Part No:
BMEXBP0800
Enrgtech Part No:
ET14050703
Warranty:
Manufacturer
£ 251.46
Checking for live stock
Manufacturer Series:
BMEXBP
For Use With:
BMEP58 Processor, BMXCPS Power Supply, I/O Module, Specific Application Module
Better World Product:
Yes
Better World Verification:
Green Premium
Maximum Operating Temperature:
+60°C
Width:
105.11mm
Mounting Type:
DIN Rail
Length:
372.8mm
Depth:
19mm
Dimensions:
372.8 x 105.11 x 19 mm
Minimum Operating Temperature:
0°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=8208495&DisplayLogo=False
