Crouzet Starter Kit The Crouzet Starter Kit is a state-of-the-art device used with XD26 series, it has 16 digital input (including 6 analogues), 8 relay output of 8A current rating and 2 relay output of 5A current rating. These PLCs have modular versions, designed for application-specific functions. It is the easiest programmable module to use on the market. It enables the control and monitoring of machines and automation installations with up to 50 I/O. This product also offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors, and disabled access ramps.
Each kit includes:
- 1 expandable Millenium 3 (XD26)
- 1 USB link cable: PC to Millenium 3
- 1 interactive CD ROM including the software workshop, application library and technical brochures, 1 CD-ROM including the library of specific functions

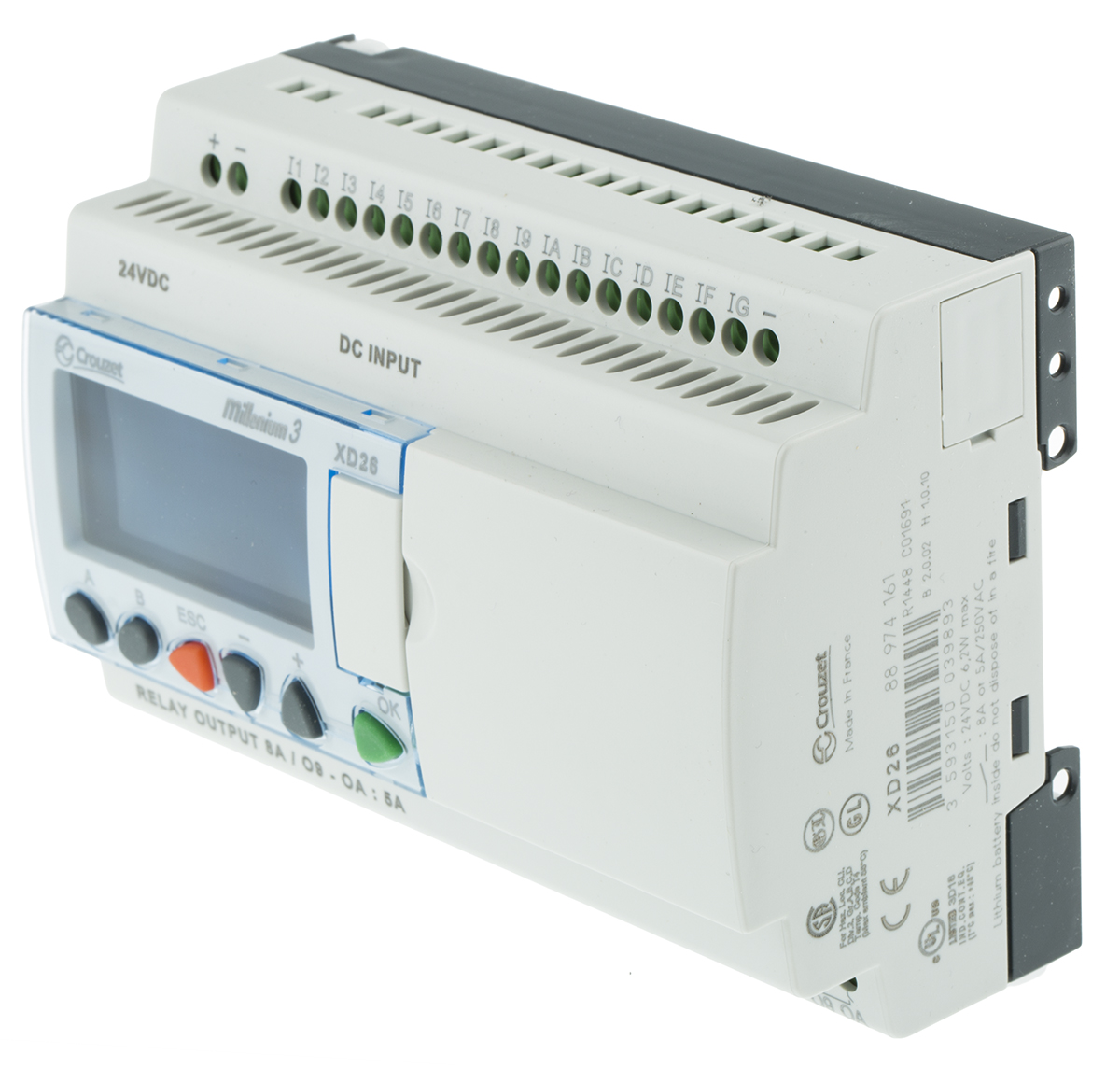

Crouzet Millenium 3
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming Features and Benefits Supply voltage is 24VDC
Operating temperature ranges between -20 °C and 70 °C
DIN rail/Panel mounting type
Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting
Allow the use of the entire library of specific functions blocs of the software workshop Applications Industrial automation
Robotics
Automobile industry Certifications UL listed
CSA certified
GL certified
EN (IEC) 61131-2 (Zone B)
EN (IEC) 61000-6-2
EN (IEC) 61000-6-3
EN (IEC) 61000-6-4
