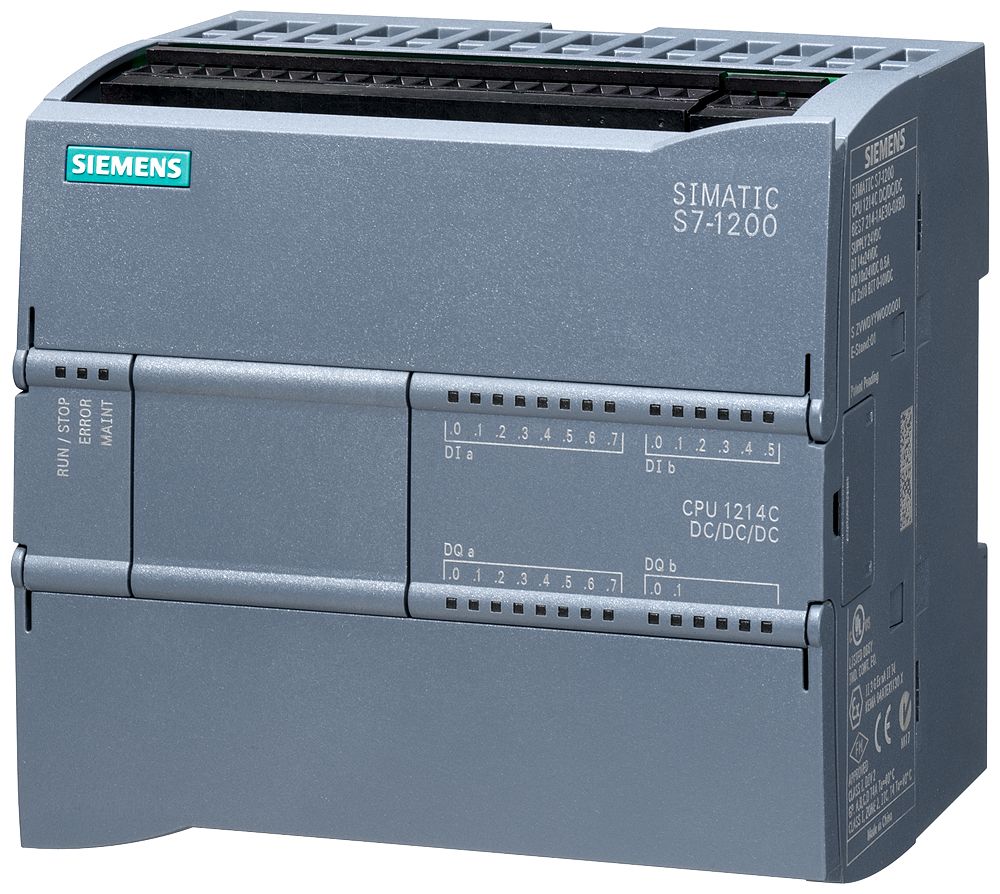

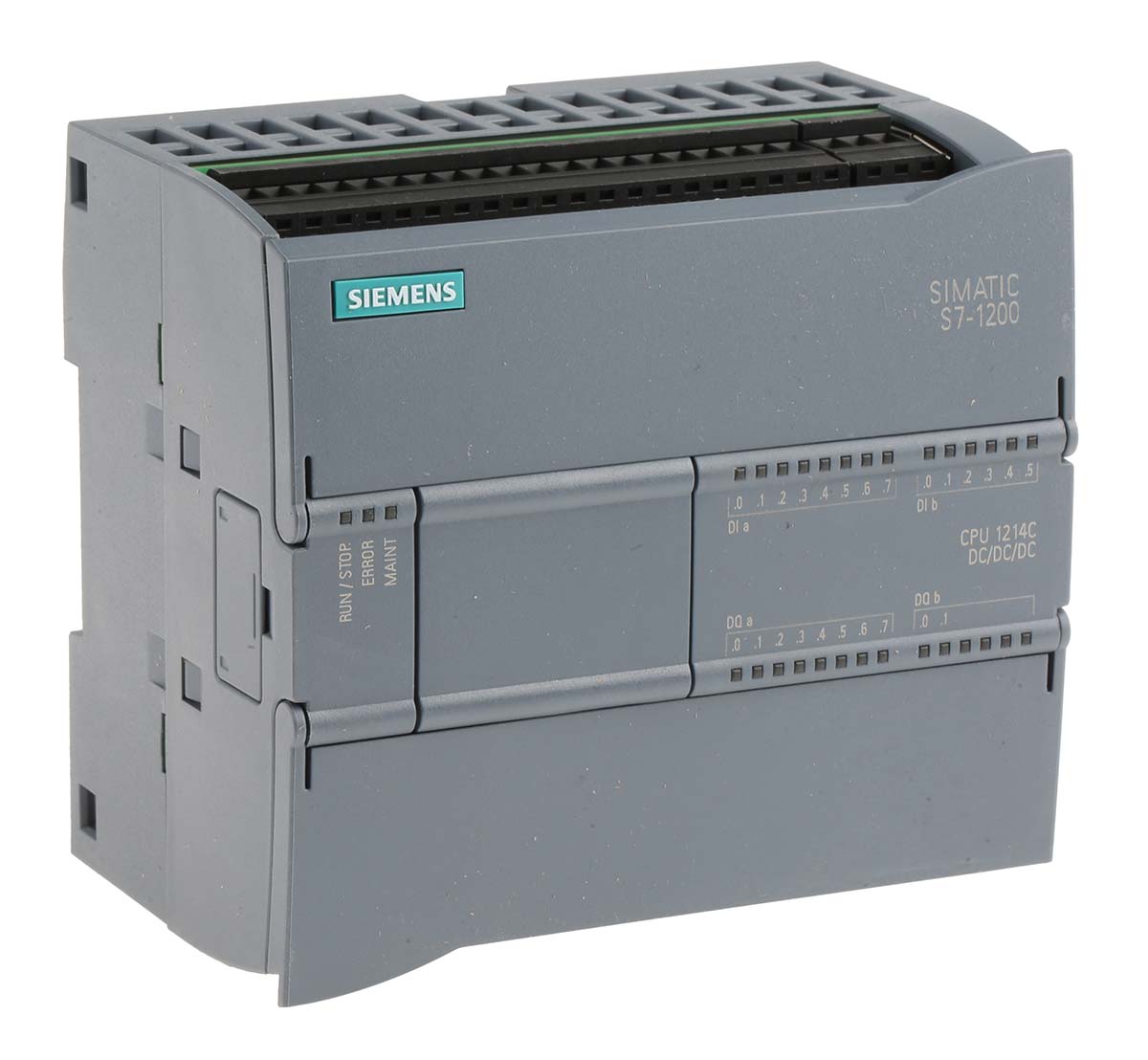

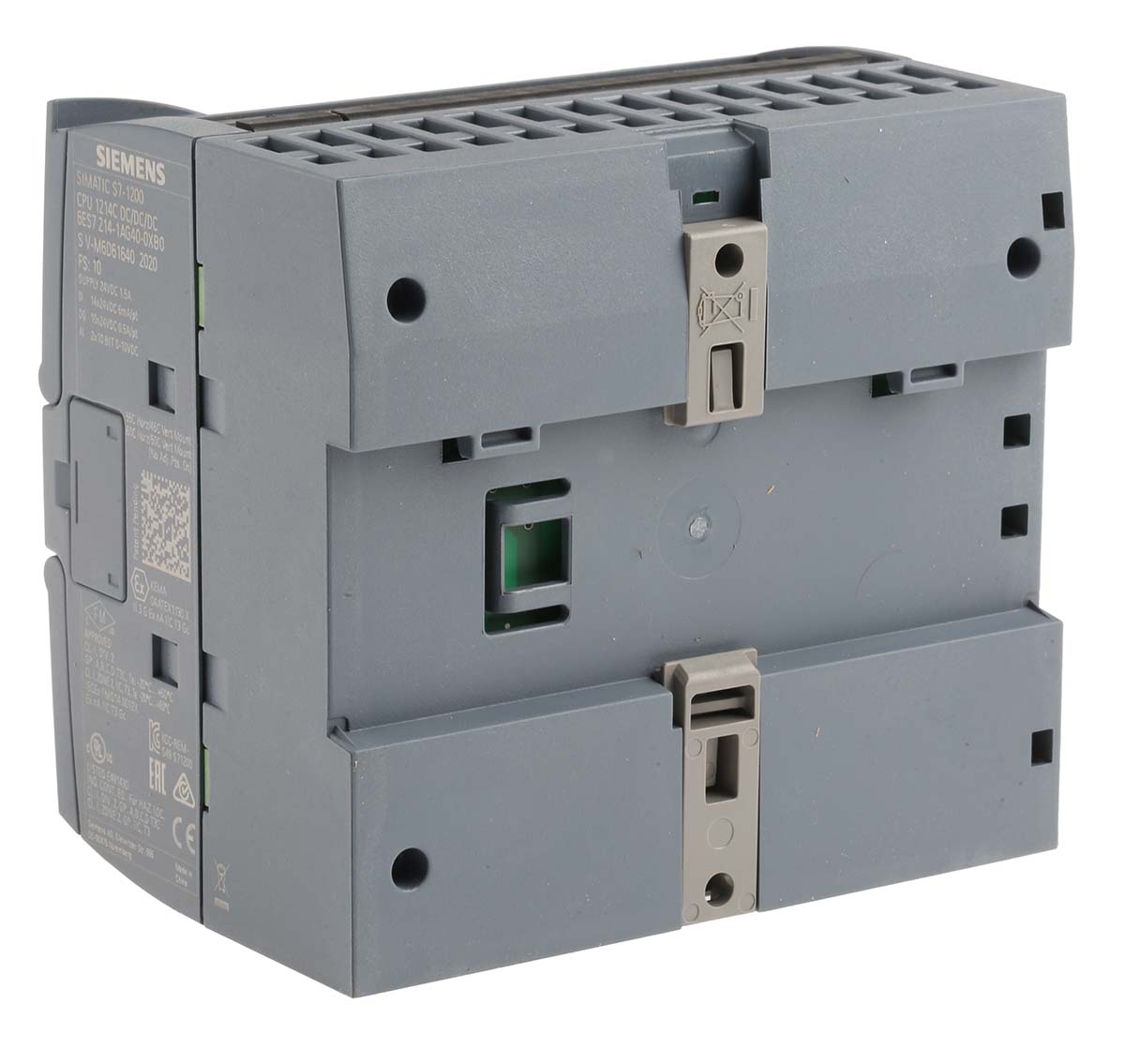

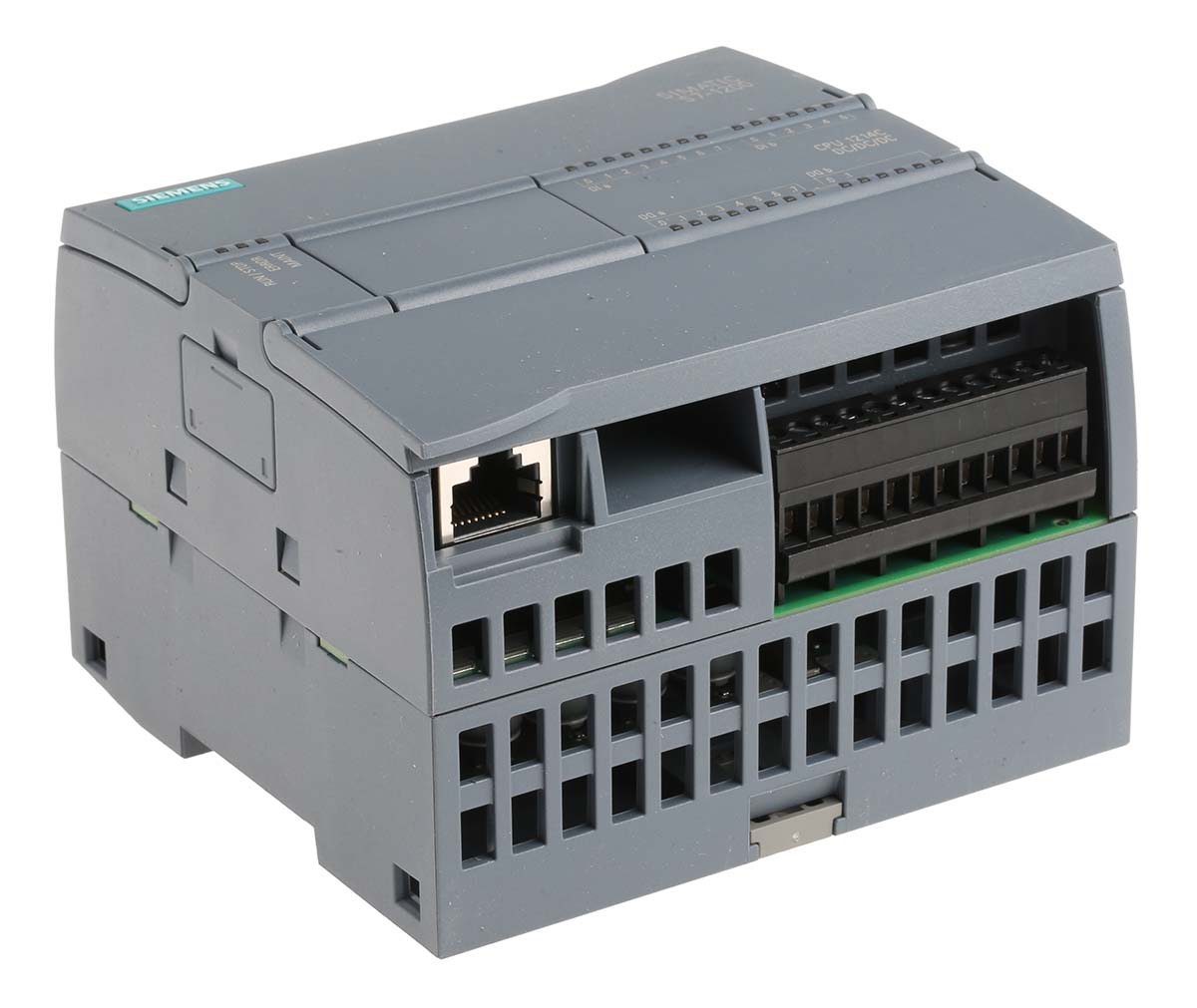

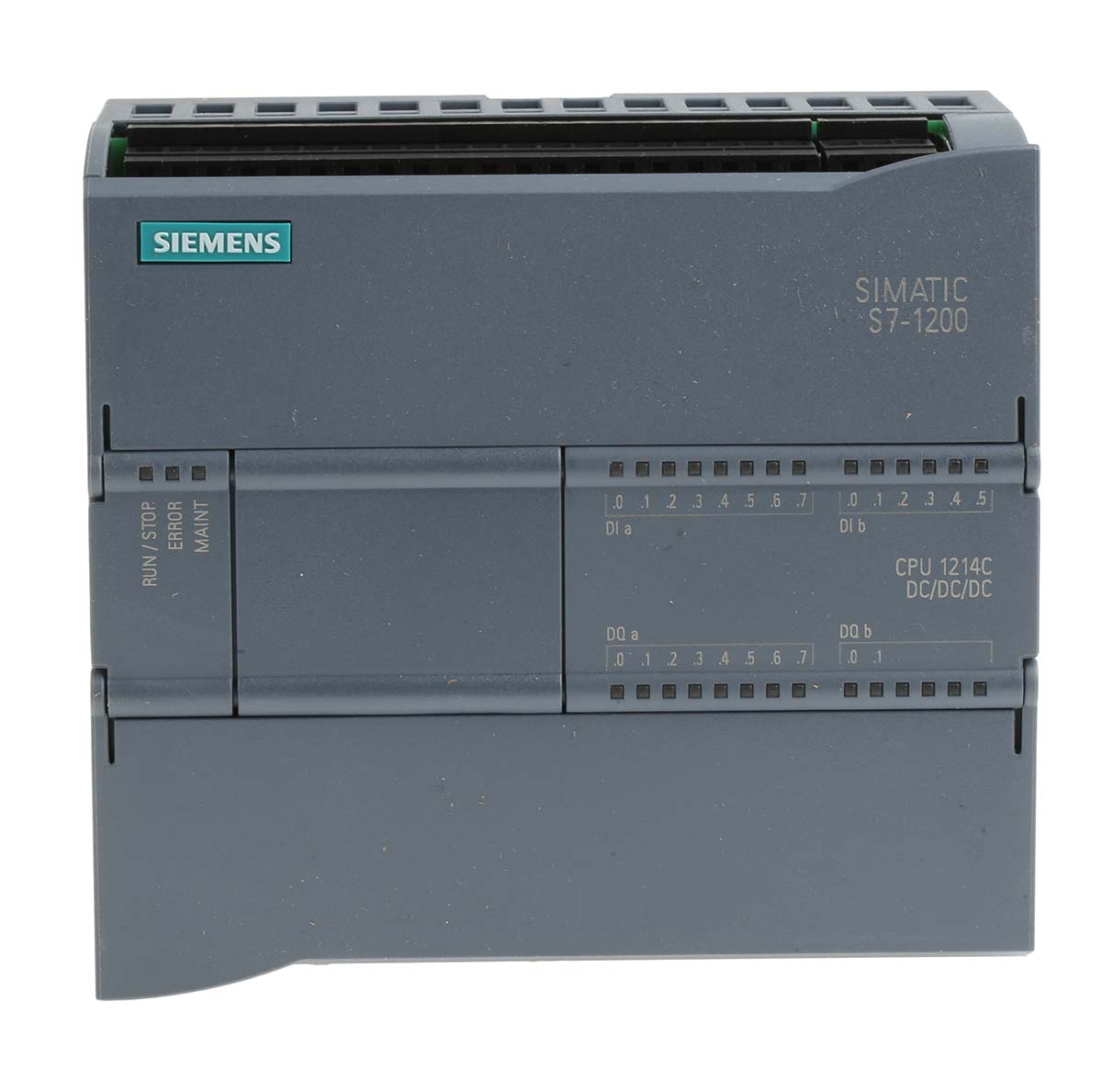

S7-1200 - CPU 1214C The SIMATIC S7-1200 system comes in five different models, CPU 1211C, CPU 1212C, CPU 1214C, 1215C and 1217C, that may each be expanded to exactly fit your machine requirements. Function board can be added inside the front of any CPU to easily expand the digital or analog I/Os without affecting the physical size of the controller. SIMATIC S7-1200 CPU 1214C Series The compact high-performance CPU With 24 integrated inputs and outputs Integrated Ethernet interface Fast counter Basic PID Controller Integrated real-time clock Alarm inputs Removable terminals on all modules Expandable with: 1 signal board (SB) or 1 communication board (CB) 8 signal modules (SM) Max. 3 communication modules (CM) Siemens S7-1200

Siemens S7-1200 PLC CPU, Ethernet Networking Profinet Interface, 75 kB Program Capacity

Manufacturer:
Manufacturer Part No:
6ES7214-1AG40-0XB0
Enrgtech Part No:
ET14119492
Warranty:
Manufacturer
£ 657.00
Checking for live stock
Program Capacity:
75 kB
Dimensions:
100 x 110 x 75 mm
Voltage Category:
24 V dc
Communication Port Type:
Ethernet, Profinet, UDP
Width:
110mm
Input Type:
Analogue, Digital
Memory:
4 MB
For Use With:
SIMATIC S7-1200 Series
Network Type:
Ethernet
Number of Inputs:
14 (Digital, 2 switch as Analogue)
Better World Claim:
Saves energy
Output Type:
Digital, Transistor
Maximum Operating Temperature:
+60°C
Programming Language Used:
FBD, LAD, SCL
Number of Outputs:
10 (Digital Output, Transistor Output)
Length:
100mm
Manufacturer Series:
SIMATIC S7-1200
Number of Communication Ports:
1
Programming Interface:
Profinet
Better World Product:
Yes
Output Current:
500 mA
Mounting Type:
DIN Rail, Wall Mount
Depth:
75mm
Minimum Operating Temperature:
-20°C
pdf icon
Siemens EcoTec Profile(Technical Reference)
pdf icon
Simatic S7-1200 Offering(Technical Reference)
pdf icon
Siemens S7-200 to S7-1200 migration guide(Technical Reference)
pdf icon
Environmental Product Declaration(Technical Reference)
pdf icon
6ES72141AG400XB0 Datasheet(Technical Reference)
pdf icon
Environmental Product Declaration - Overview(Technical Reference)
