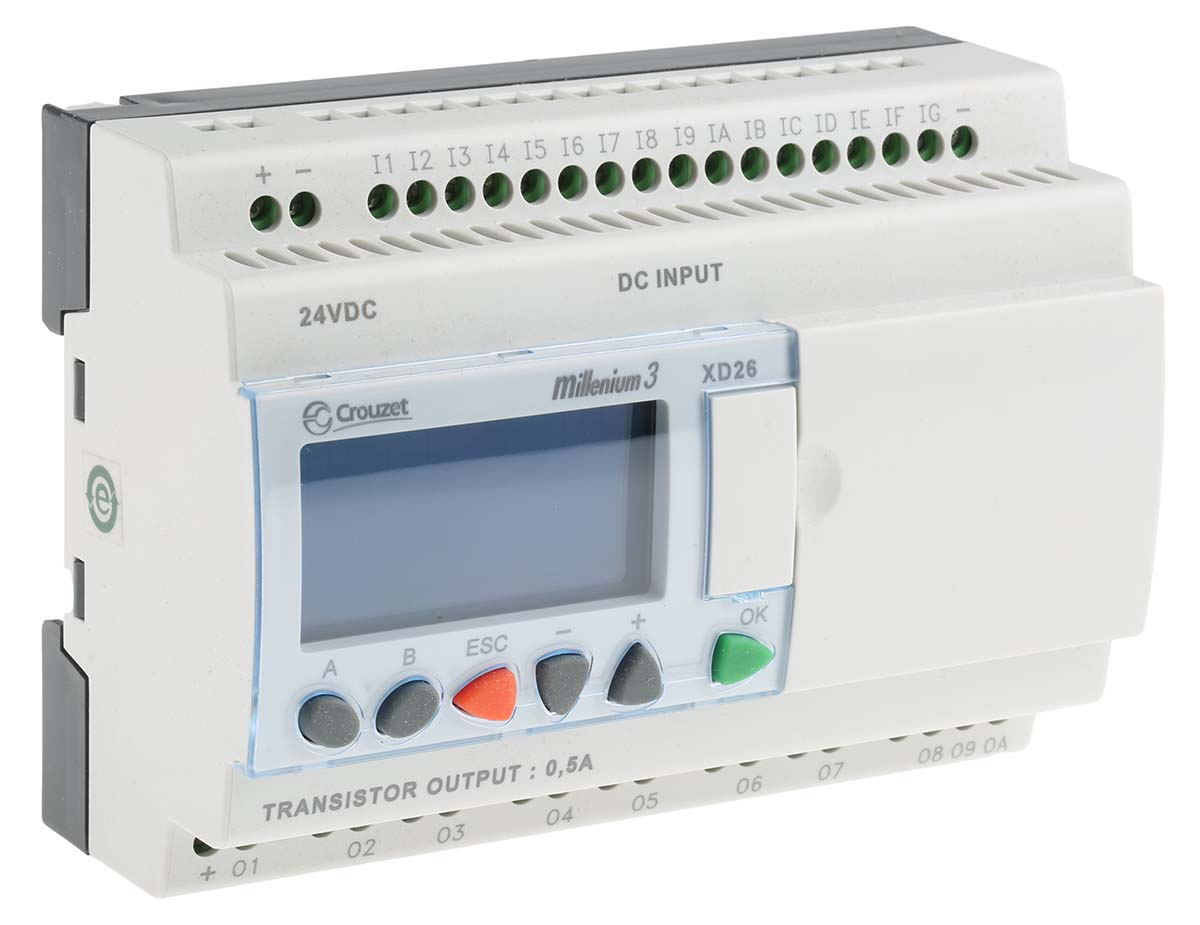

Crouzet Logic Module The Crouzet Millenium 3 series logic module is the latest generation of the Millenium expandable version XD26 smart series with 16 digital(including 6 analogues) inputs and 10 solid-state outputs of 0.5A(including 4PWm)current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a voltage rating of 24VDC.
Crouzet Millenium 3:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming Features and Benefits Operating temperature ranges between -20°C and +55°C
Highly visible blue LCD with 4 lines of 18 characters
and configurable backlighting
Allow the use of the entire library of specific functions
blocs of the software workshop
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
LCD Display Applications Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems Certifications CE
CSA
GL
UL approved
IP40 rated
