3/2 drawer valves, 551 series
Range of drawer valves with 3 orifices.
Wide range of control mechanisms: lever, pedal and button.
Fluid:
air or filtered neutral gas
Connection:
G1/4''
Operating pressure:
0 → 10 bar
Rated flow at 6 bar:
860 Nl / min
Operating temperature:
-10 → +60 °C
ref.
control components
Stock
Joucomatic
(control / return)
no.
551 02 088
2 held positions lever
420-2799
551 02 089
lever / spring
420-2812
551 02 091
pedal / spring
420-2862
551 02 082
pushbutton / spring
420-2890
551 02 083
push - pull button
420-2907

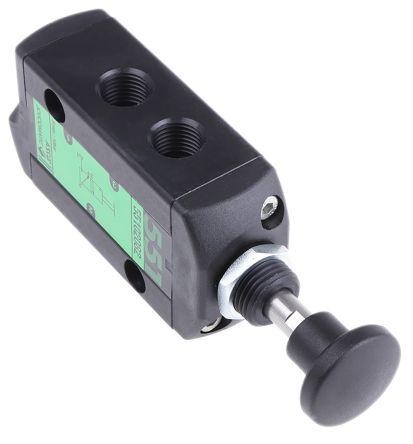

551 Series Push Button Pneumatic Manual Control Valve
£ 98.89
Checking for live stock
Function:
3/2
Maximum Operating Pressure:
10 bar
Maximum Flow Rate:
860L/min
Thread Standard:
G
Connection Port Thread:
G 1/4
Thread Size:
1/4in
Number of Ports:
3/2
Body Material:
Aluminium
Manufacturer Series:
551
Minimum Operating Temperature:
-25°C
Control Mechanism:
Push Button
Maximum Operating Temperature:
+60°C
