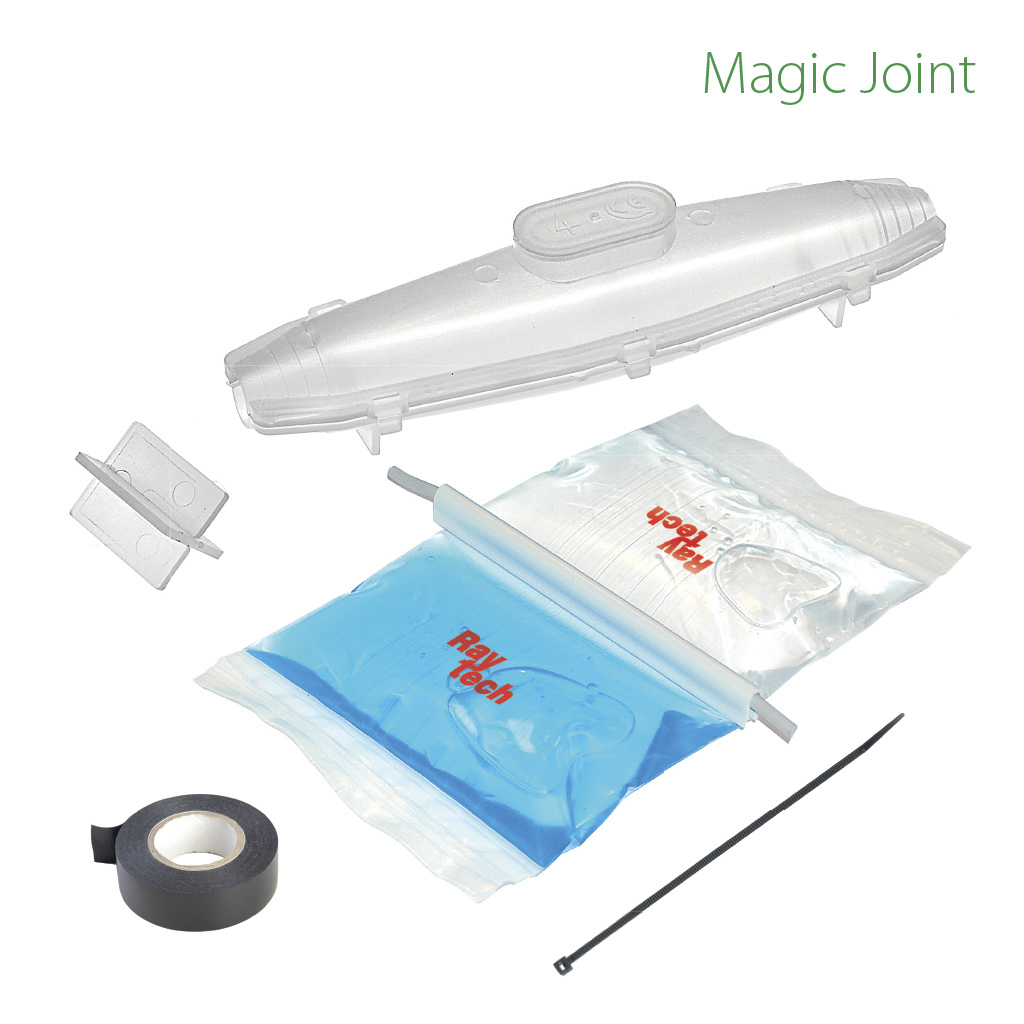

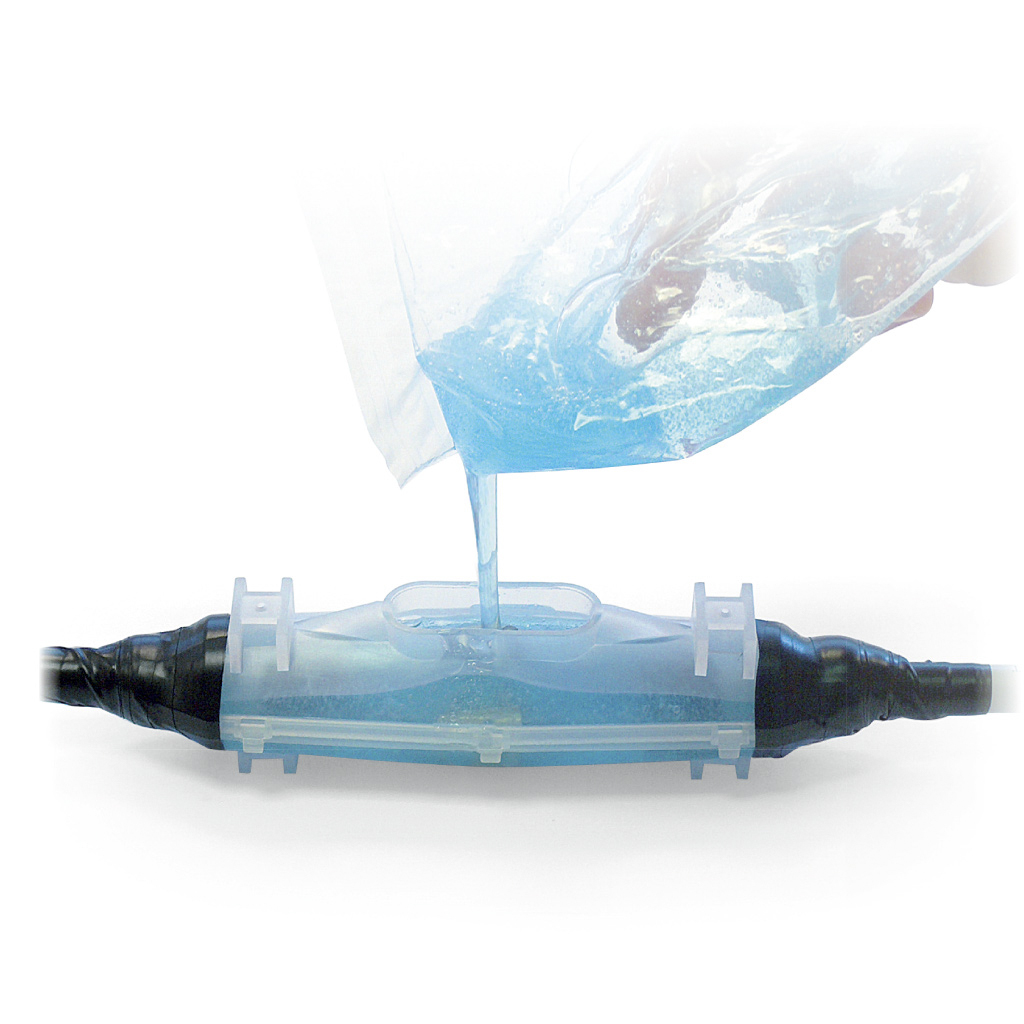

Straight or branch joint with Magic Gel filling gel for extruded insulation cables up to 1 kV. Joints for extruded cables F(R)G7OR 0.6/1 kV. Easy installation, composed of two anti-fracture plastic shells, to be filled with non-toxic quick cross linking bicomponent insulation with no shelf life, Magic Gel type. Suitable for installation in traps, channels or directly underground or under water. Non-toxic, safe, light and re-enterable. Thanks to the softness of the insulation, they are able to absorb external shock without cracking or fracturing. The extreme stickiness of the insulation, together with its softness allow it to transmit water pressure for installation even at high depths. Thanks to the materials used, joints are completely nontoxic, safe, re-enterable even after long periods of operation. Quick cross linking gel, (only 10 minutes at 23°C)
Extremely adherent and tight sealing
Non-toxic and safe
No shelf life
