2900291 Phoenix Contact
2900291 Phoenix Contact
2900291 Phoenix Contact
2900291 Phoenix Contact

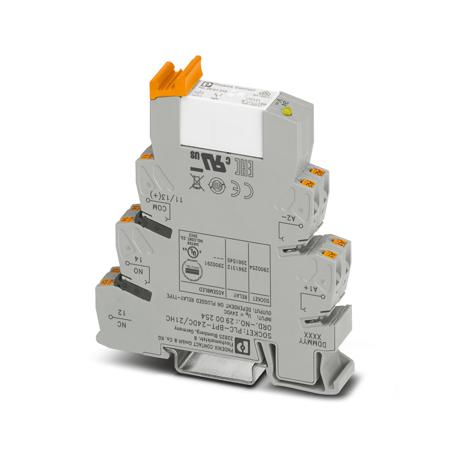

RELAY GEN PURPOSE SPDT 10A 24V

Phoenix Contact 2900291

Manufacturer:
Phoenix Contact
Manufacturer Part No:
2900291
Enrgtech Part No:
ET11778109
Warranty:
Manufacturer
£ 2215.00
Checking for live stock
Dimensions:
94 x 14 x 80mm
Coil Voltage:
24V dc
For Use With:
High continuous currents
Turn On Time:
8ms
Turn Off Time:
10ms
Input Current:
18mA
Life:
30000000Cycles
Switching Voltage:
250V ac/dc
Maximum Operating Temperature:
+60°C
Terminal Type:
Screw
Relay Type:
Solid State Relay
Operating Temperature Range:
-40 → +60°C
Contact Configuration:
SPDT
Depth:
14mm
Relay Switching Classification:
Plug-In Relay
Special Features:
Degree of protection RT II
Mounting Type:
DIN Rail
Series:
PLC-RPT- 24DC/21HC
Input Voltage Range:
20.2 → 33.6V dc
Accessory Type:
Relay Module
Length:
94mm
Height:
80mm
Minimum Operating Temperature:
-40°C
Minimum Input Voltage:
20.2V
Number of Poles:
1
Maximum Input Voltage:
24V dc
Contact Material:
Silver Alloy
Must Release Voltage:
-
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Spring Terminal
REACH Status:
REACH Affected
Operating Temperature:
-40°C ~ 60°C
Approval Agency:
CE, UKCA
Coil Resistance:
1.333 kOhms
Coil Current:
18 mA
Coil Type:
Non Latching
title:
2900291
Seal Rating:
-
edacadModel:
2900291 Models
edacadModelUrl:
/en/models/4453366
Must Operate Voltage:
-
Relay Type:
General Purpose
Load - Max Switching:
-
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
8 ms
Qualification:
-
standardLeadTime:
8 Weeks
Contact Rating (Current):
10 A
Features:
Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Grade:
-
Series:
PLC-RPT
Switching Voltage:
250VAC, 250VDC - Max
Release Time:
10 ms
Packaging:
Bulk
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29002
ECCN:
EAR99
pdf icon
EU Conformity(Technical Reference)
pdf icon
Relay Module - PLC-RPT- 24DC/21HC(Technical Reference)
pdf icon
UK Conformity(Technical Reference)
pdf icon
Multiple Devices Color 22/Feb/2019(PCN Design/Specification)
pdf icon
2900291(Datasheets)
pdf icon
Universal Series(Datasheets)
