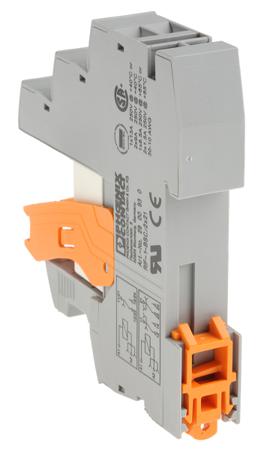

RIF 1 Series 24V dc DIN Rail Interface Relay Module, DPDT, Screw

Dimensions:

16 x 75 x 89mm

Coil Voltage:

24V dc

Turn On Time:

8ms

Turn Off Time:

10ms

Input Current:

18mA

Life:

3 x 10^7 (Mechanical) cycles

Standards Met:

DIN EN 50178, UL 94

Switching Voltage:

250V ac/dc

Maximum Operating Temperature:

+70°C

Terminal Type:

Screw

Relay Type:

Solid State Relay

Minimum Operating Temperature:

-40°C

Operating Temperature Range:

-40 → +70°C

Load Voltage Rating:

24V

Contact Configuration:

DPDT

Depth:

75mm

Relay Switching Classification:

Pre-Assembled Relay Module

Special Features:

IP20 Relay Base, Safe Isolation

Mounting Type:

DIN Rail

Series:

RIF-1-RSC-LDP-24DC/2X21

Input Voltage Range:

19.2 → 36V

Accessory Type:

Relay Module

Length:

16mm

Height:

89mm

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1750523&DisplayLogo=False

Minimum Input Voltage:

24V dc

Number of Poles:

2

Maximum Input Voltage:

24V dc

Contact Material:

Silver Alloy

Must Release Voltage:

-

HTSUS:

8536.41.0020

RoHS Status:

ROHS3 Compliant

Coil Voltage:

24VDC

Termination Style:

Screw Terminal

REACH Status:

REACH Affected

Operating Temperature:

-40°C ~ 70°C

Approval Agency:

CSA

Coil Resistance:

1.33 kOhms

Coil Current:

18 mA

Coil Type:

Non Latching

title:

2903350

Seal Rating:

-

Must Operate Voltage:

-

Relay Type:

General Purpose

Load - Max Switching:

-

Contact Form:

DPDT (2 Form C)

Moisture Sensitivity Level (MSL):

Not Applicable

Operate Time:

8 ms

Qualification:

-

Contact Rating (Current):

8 A

Features:

Diode, Lighted Indicator, Socket Included

Mounting Type:

DIN Rail

Grade:

-

Series:

RIF

Switching Voltage:

250VAC, 250VDC - Max

Release Time:

10 ms

Packaging:

Bulk

Coil Insulation:

-

Contact Material:

Silver Nickel (AgNi)

Base Product Number:

29033

ECCN:

EAR99
