RXM Series Miniature Relays with LED The compact Zelio RXM miniature relays with LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC. Range of miniature plug-in relays on base, RXZE2 type Simple to use- no adjustment required for standard applcations Easily integrated into current devices & can be adapted for all voltages Test button and mechanical indicator of relay status Bases for assembly on DIN rail or with screws to be ordered separately

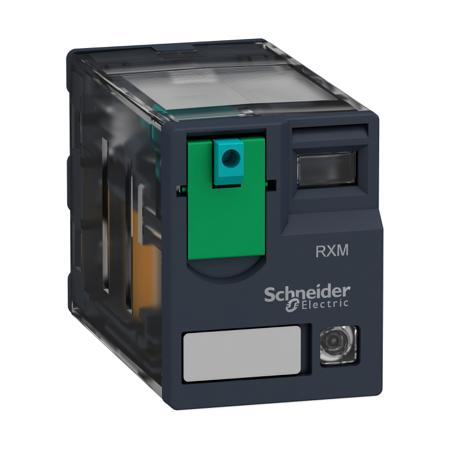

Schneider Electric 4PDT Non-Latching Relay Plug In, 24V dc Coil, 3 A

Manufacturer:
Manufacturer Part No:
RXM4GB2BD
Enrgtech Part No:
ET13863610
Warranty:
Manufacturer
£ 28.28
Checking for live stock
Coil Voltage:
24V dc
Terminal Type:
Plug In
Coil Resistance:
650Ω
Life:
100000 cycles
Standards Met:
CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL
Coil Power:
900mW
Maximum Switching Power DC:
84 W
Maximum Operating Temperature:
+55°C
Switching Current:
3A
Minimum Operating Temperature:
-40°C
Latching:
No
Contact Configuration:
4PDT
Depth:
47.7mm
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
Plug In
Series:
Harmony Relay RXM
Length:
21mm
Height:
27mm
Maximum Switching Voltage AC:
250V
Maximum Switching Power AC:
750VA
Number of Poles:
4
Contact Material:
Gold Plated
pdf icon
Datasheet_RXM4GB2BD(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
