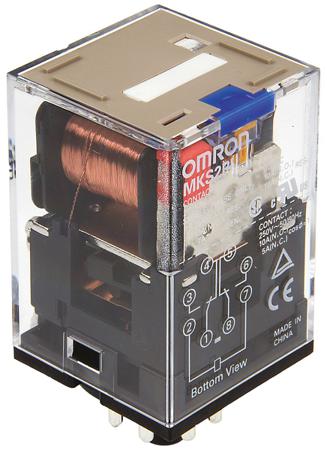

mks2pi-dc24 Omron DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A
mks2pi-dc24 Omron DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A
mks2pi-dc24 Omron DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A
mks2pi-dc24 Omron DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A
mks2pi-dc24 Omron DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A
mks2pi-dc24 Omron DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A
mks2pi-dc24 Omron DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A

General Purpose Relays, MKS Series All units have a Mechanical indicator and lockable test button (with nameplate) Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet Contact rating: 10A at 30Vdc/250Vac Contact material: AgSnIn Operating temperature: -40 → +60 °C Note When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A Approvals UL, TUV (IEC), CSA

RoHs Compliant

Omron DPDT Non-Latching Relay Plug In, 24V dc Coil, 10 A

Manufacturer:
Omron
Manufacturer Part No:
MKS2PI DC24
Enrgtech Part No:
ET14011034
Warranty:
Manufacturer
£ 11.53
Checking for live stock
Coil Voltage:
24V dc
Application:
General Purpose
Terminal Type:
Plug In
Coil Resistance:
430Ω
Standards Met:
CSA, UL
Maximum Switching Voltage DC:
250V dc
Maximum Switching Power DC:
300 W
Maximum Operating Temperature:
+60°C
Switching Current:
10A
Latching:
No
Contact Configuration:
DPDT
Length:
34.5mm
Mounting Type:
Plug In
Series:
MKS
Depth:
34.5mm
Height:
53.3mm
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
2.5 kVA
Number of Poles:
2
Contact Material:
Silver Alloy
pdf icon
MK-S Datasheet(Technical Reference)
