LY Series
Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm
Note
Bases (in picture) sold separately
Approvals
VDE, UL, CSA, SEV
Approvals
UL; CSA; VDE; SEV

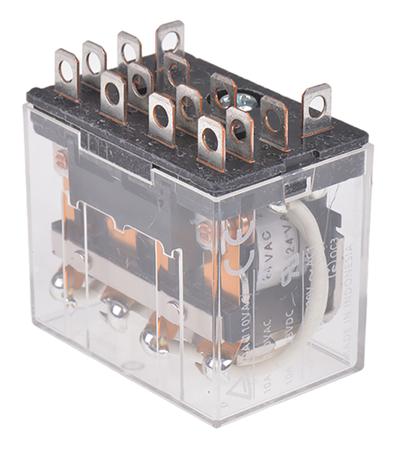

4PDT Non-Latching Relay Plug In, 24V Coil, 10 A
£ 28.28
Checking for live stock
Mounting Type:
Plug In
Series:
LY4
Latching:
No
Coil Voltage:
24V ac
Length:
28mm
Height:
42.4mm
Switching Current:
10A
Application:
General Purpose
Depth:
41.5mm
Maximum Switching Power DC:
240 W
Maximum Switching Power AC:
1.1 kVA
Contact Configuration:
4PDT
