Carlo Gavazzi Relay Carlo Gavazzi general purpose relays provide the user with a reliable switching solution Both 8 & 11 pin socket mounting options with industry standard Octal termination
2 or 3 Changeover options available
AC Coils range from 6 to 230V ac
DC Coils range from 6 to 110V dc
Exeptionally reliable thanks to robust construction

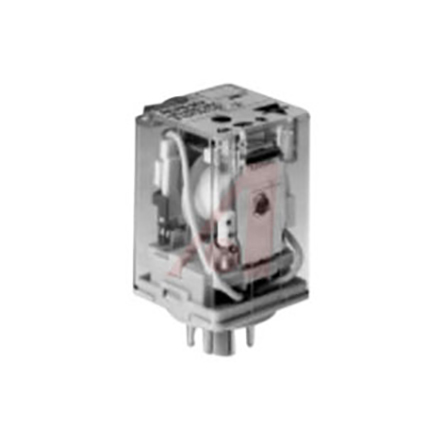

Carlo Gavazzi Plug In Power Relay, 24V dc Coil, 10A Switching Current, 3PDT

Manufacturer:
Manufacturer Part No:
RCP1100324VDC
Enrgtech Part No:
ET17745305
Warranty:
Manufacturer
£ 11.5000
Checking for live stock
Coil Voltage:
24V dc
Contact Configuration:
3PDT
Mounting Type:
Plug In
Switching Current:
10A
Number of Poles:
3
Latching:
No
Terminal Type:
Plug In
Maximum Switching Voltage AC:
250V
Maximum Switching Voltage DC:
30V dc
Length:
35.5mm
Coil Resistance:
430Ω
Coil Power:
1.5W
Life:
100000 (Electrical) Operations, 10000000 (Mechanical) Operations
Maximum Operating Temperature:
+50°C
Series:
RCP
Contact Material:
Silver Alloy
Minimum Operating Temperature:
-40°C
Height:
35.5mm
Depth:
56mm
Isolation Coil To Contact:
3.75kV ac
Maximum Switching Power DC:
300 W
Maximum Switching Power AC:
2.5 kVA
Application:
Industrial
pdf icon
Datasheet-26912484(datasheets)
