Panel Mount
"Bourdon tube operating principle
Dual scale - calibrated in bar and psi
Ambient operating temperature -40 to +60°C
Medium operating temperature +60°C (max)
Accuracy ±2.5% FSD (EN837-1/6 class 2.5)
Rear connection"
"Bourdon tube operating principle
Dual scale - calibrated in bar and psi
Ambient operating temperature -40 to +60°C
Medium operating temperature +60°C (max)
Accuracy ±2.5% FSD (EN837-1/6 class 2.5)
Rear connection"

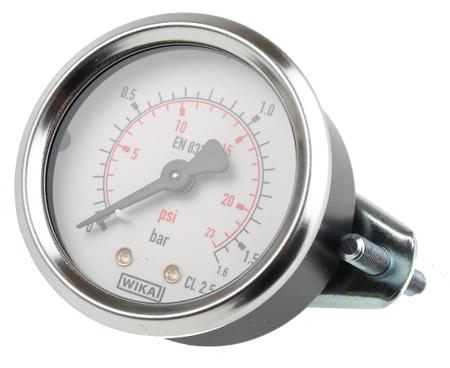

Analogue Pressure Gauge 1.6bar Back Entry 50mm Outside Diameter
Manufacturer:
WIKA
Manufacturer Part No:
7833985
Enrgtech Part No:
ET14030153
Warranty:
Manufacturer
£ 22.90
Checking for live stock
Maximum Pressure Measurement:
1.6bar
Minimum Pressure Measurement:
0bar
Mounting Type:
Back Entry
Display Type:
Analogue
Gauge Outside Diameter:
50mm
Best Accuracy:
± 2.5%
Series:
111.12
Case Material:
Plastic
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+60°C
