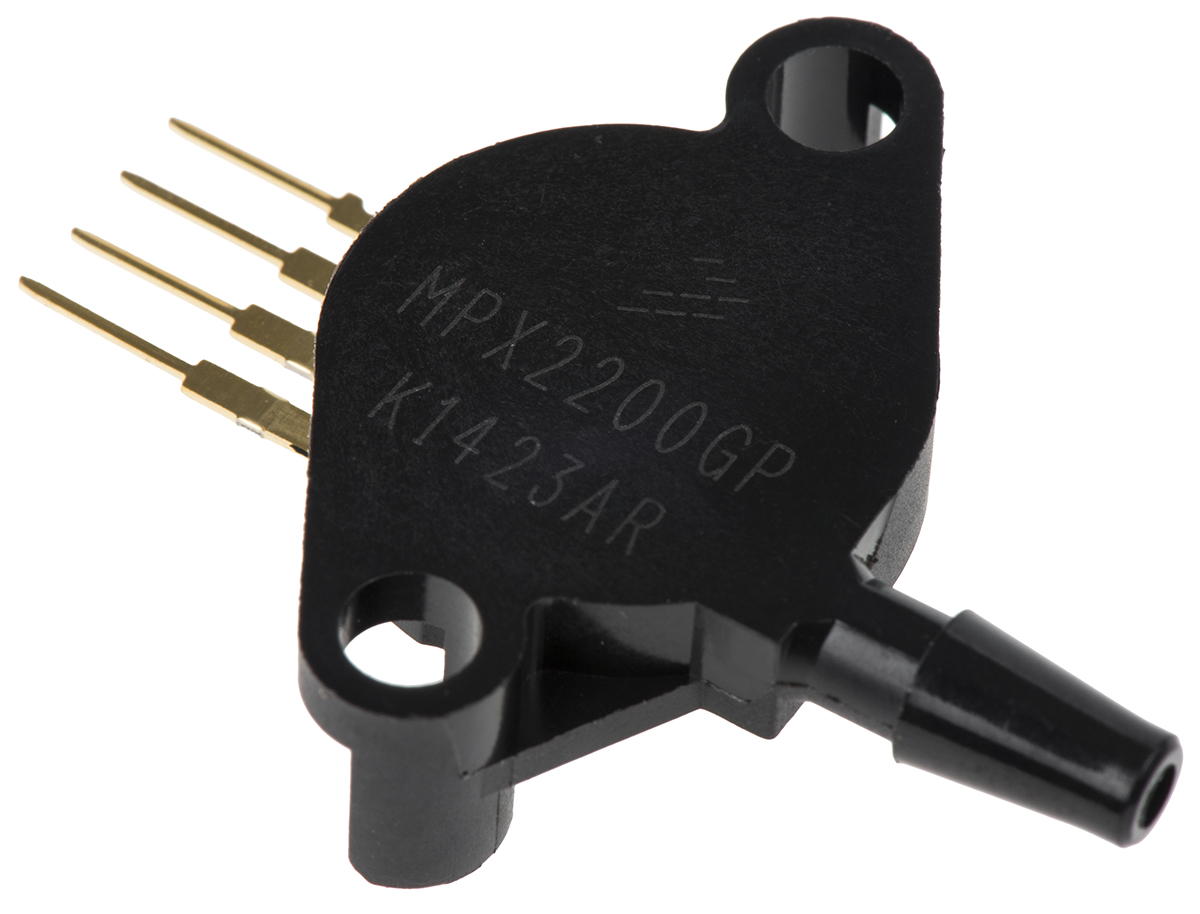

Gauge Pressure Sensor, 200kPa Operating Max, Through-Hole Mount, 4-Pin, 800kPa Overload Max, Case 344B-01

Maximum Overload Pressure:

800kPa

Sensor Type:

Gauge Pressure Sensors

Typical Sensitivity:

0.2mV/kPa

Mounting Type:

Through Hole

Package Type:

Case 344B-01

Pin Count:

4

Dimensions:

29.85 x 8.26 x 29.34mm

Maximum Operating Pressure:

200kPa

Maximum Operating Supply Voltage:

16 V

Maximum Operating Temperature:

+125 °C

Maximum Output Voltage:

0.04 V

Minimum Operating Pressure:

0kPa

Minimum Operating Temperature:

-40 °C

Minimum Output Voltage:

-1 mV
