Pressure Transmitters
Compact pressure transmitters ideally suited to hydraulic applications requiring intergrated pressure measurement
Ranges up to 10bar use proven piezo resistive sensor elements
Thin film strain gauge sensors used for ranges 0bar up to 600bar
Electrical Output: 4 to 20mA 2 wire
Accuracy: <0.25% Limit Point Calibration ≤0.5% (BFSL)
Construction 1.4571 stainless steel (wetted parts), 1.4301 stainless steel (housing)
Ranges up to 10bar use proven piezo resistive sensor elements
Thin film strain gauge sensors used for ranges 0bar up to 600bar
Electrical Output: 4 to 20mA 2 wire
Accuracy: <0.25% Limit Point Calibration ≤0.5% (BFSL)
Construction 1.4571 stainless steel (wetted parts), 1.4301 stainless steel (housing)

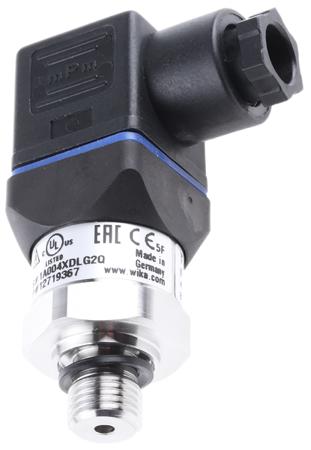

A-10 Series Pressure Transmitter, 0bar Min, 600bar Max
£ 125.17
Checking for live stock
Minimum Pressure Reading:
0bar
Maximum Pressure Reading:
600bar
Electrical Connection:
4-Pin L-Plug
Analogue Output:
4 → 20 mA
Series:
A-10
Supply Voltage:
8 → 30 V dc
Minimum Operating Temperature:
0°C
Maximum Operating Temperature:
80°C
