Pressure Transmitters
Compact pressure transmitters ideally suited to hydraulic applications requiring intergrated pressure measurement
Ranges up to 10bar use proven piezo resistive sensor elements
Thin film strain gauge sensors used for ranges 0bar up to 600bar
Electrical Output: 4 to 20mA 2 wire
Accuracy: <0.25% Limit Point Calibration ≤0.5% (BFSL)
Construction 1.4571 stainless steel (wetted parts), 1.4301 stainless steel (housing)
Ranges up to 10bar use proven piezo resistive sensor elements
Thin film strain gauge sensors used for ranges 0bar up to 600bar
Electrical Output: 4 to 20mA 2 wire
Accuracy: <0.25% Limit Point Calibration ≤0.5% (BFSL)
Construction 1.4571 stainless steel (wetted parts), 1.4301 stainless steel (housing)

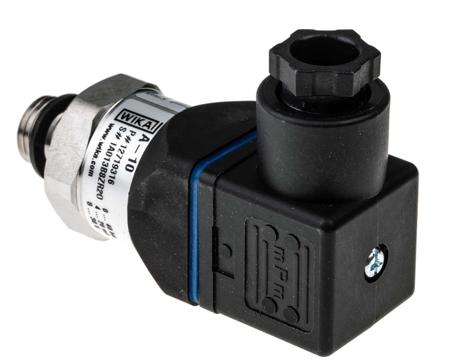

A-10 Series Pressure Sensor, 0bar Min, 40bar Max, Current Output, Relative Reading
Manufacturer:
WIKA
Manufacturer Part No:
12719316
Enrgtech Part No:
ET14079217
Warranty:
Manufacturer
£ 123.93
Checking for live stock
Pressure Reading Type:
Relative
Minimum Pressure Reading:
0bar
Maximum Pressure Reading:
40bar
Accuracy:
0.5 %
Output Type:
Current
Media Measured:
Hydraulic Fluid
Process Connection:
G1/4
Analogue Output:
4 → 20 mA
Series:
A-10
Supply Voltage:
8 → 30 V dc
Housing Material:
Stainless Steel
Maximum Operating Temperature:
+80°C
