Extended Sensing Range These Pepperl + Fuchs inductive proximity sensors are cylindrical in design and are available with an extended sensing range of up to 30mm to suit a number of different applications. Features and benefits LED indication
Embeddable or flush installation
IP67
Supply voltage 10 to 30Vdc
Short circuit and reverse polarity protection
Pre-wired types have 2m PVC cable
Plug-in types have M12 type V1 connector

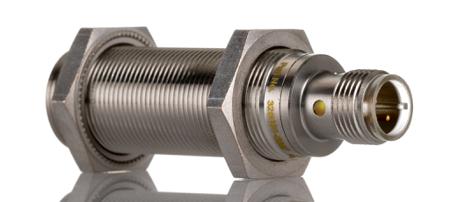

Pepperl + Fuchs Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 5 → 36 V dc

Manufacturer:
Manufacturer Part No:
NBB8-18GM50-E2-V1
Enrgtech Part No:
ET13839431
Warranty:
Manufacturer
Checking for live stock
Thread Size:
M18
Sensor Technology:
Inductive
Body Style:
Threaded Barrel
Detection Range:
8 mm
Output Function:
NO
Digital Switching Output Type:
PNP
Connection Type:
M12
Supply Voltage:
5 → 36 V dc
IP Rating:
IP68
Length:
65mm
Mounting Type:
Flush
Housing Material:
Brass, White Bronze Coated
Maximum DC Voltage:
36V
Minimum Operating Temperature:
-40°C
Short Circuit Overload Protection:
Yes
Switching Frequency:
1.35 kHz
Reverse Polarity Protection:
Yes
Switching Current:
200 mA
Maximum Switching Frequency:
1.35kHz
Shielding:
Shielded
Depth:
18mm
Maximum Operating Temperature:
+85°C
