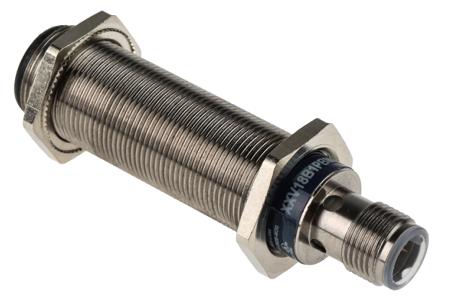

Ultrasonic Threaded Barrel Proximity Sensor, M18, 50 mm Detection, PNP NC, 12 → 24 V dc

Thread Size:

M18

Sensor Technology:

Ultrasonic

Body Style:

Threaded Barrel

Detection Range:

50 mm

Digital Switching Output Type:

PNP

Output Function:

NC

Connection Type:

M12

Supply Voltage:

12 → 24 V dc

IP Rating:

IP67

Length:

75mm

Housing Material:

Brass

Maximum DC Voltage:

36V

Minimum Operating Temperature:

0°C

Switching Frequency:

80 Hz

Short Circuit Overload Protection:

Yes

Reverse Polarity Protection:

Yes

Switching Current:

200 mA

Maximum Switching Frequency:

80Hz

Maximum Operating Temperature:

+60°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7640614&DisplayLogo=False
