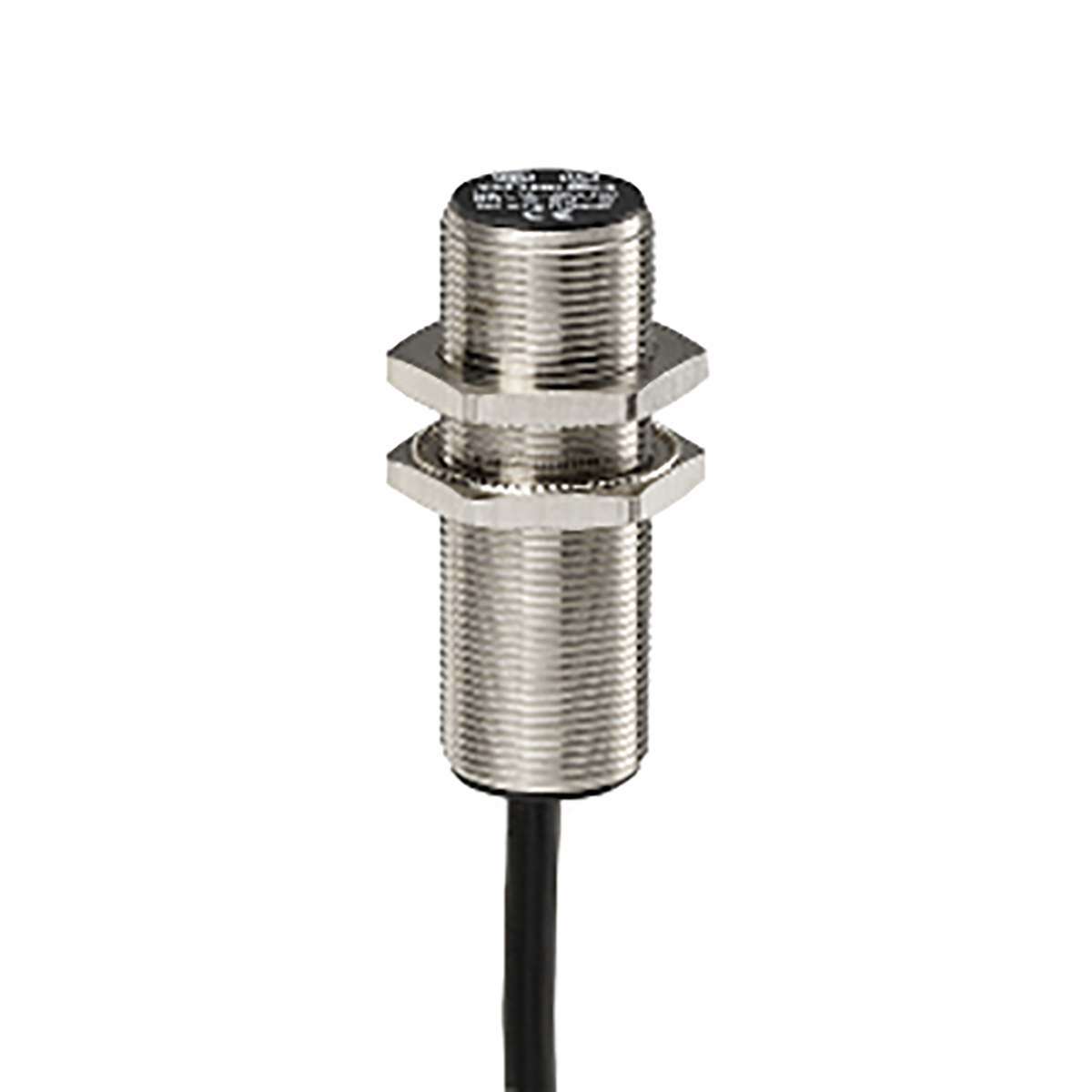

Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 12 → 48 V dc

Thread Size:

M18

Sensor Technology:

Inductive

Detection Range:

5 mm

Body Style:

Threaded Barrel

Digital Switching Output Type:

PNP

Output Function:

NO

Connection Type:

Pre-Cabled

Cable Length:

2m

Supply Voltage:

12 → 48 V dc

IP Rating:

IP68, IP69K

Length:

62mm

Mounting Type:

Flush

Width:

18mm

Housing Material:

Brass

Maximum DC Voltage:

48V

Minimum Operating Temperature:

-25°C

Maximum Switching Frequency:

2kHz

Shielding:

Shielded

Short Circuit Overload Protection:

Yes

Reverse Polarity Protection:

Yes

Series:

OsiSense XS

Switching Frequency:

2 kHz

Maximum Operating Temperature:

+70°C

Switching Current:

200 mA
