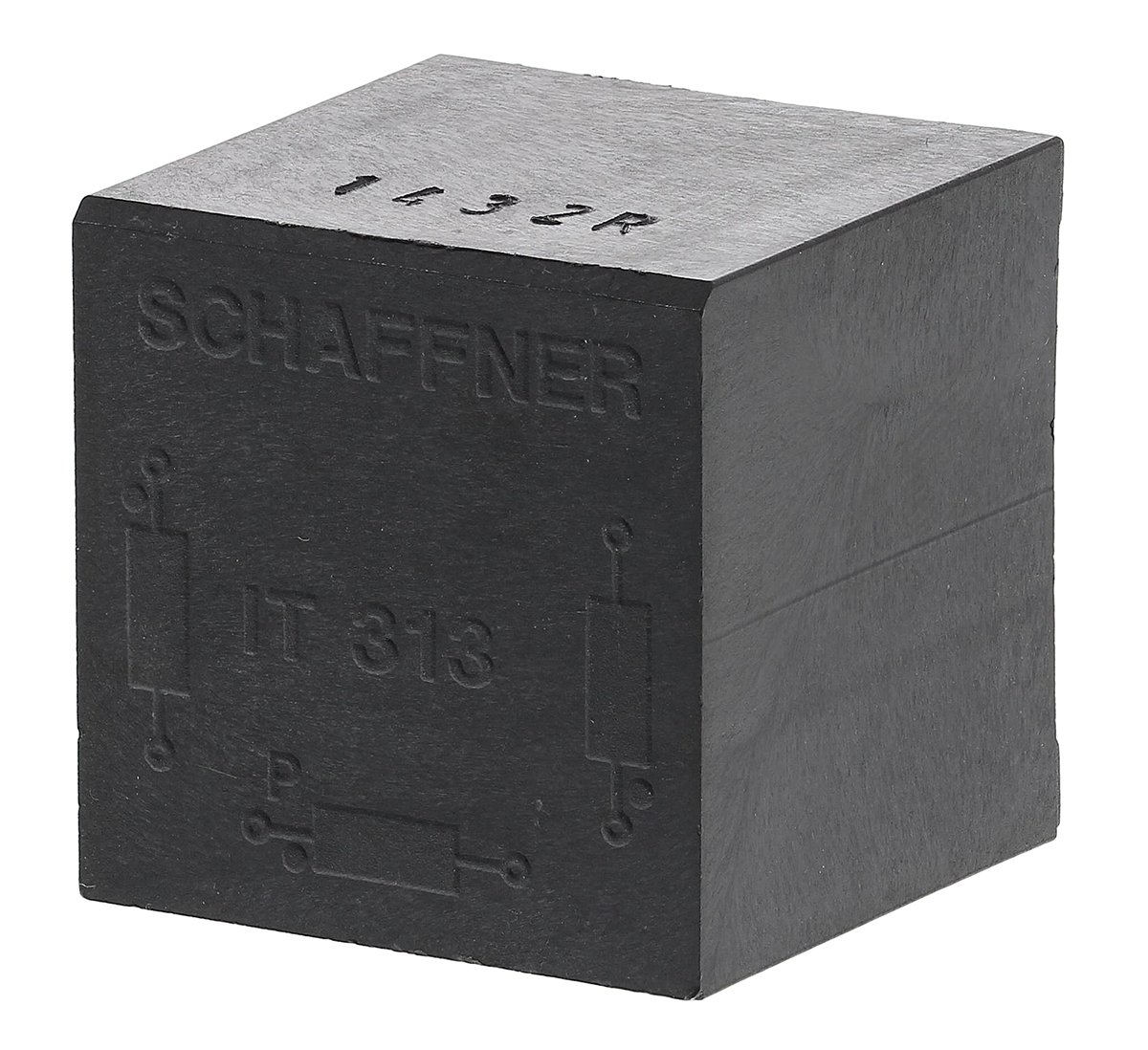

Schaffner Through Hole Pulse Transformer 1:1:1 Turns Ratio, 3mH Prim. Inductance

Schaffner Through Hole Pulse Transformer 1:1:1 Turns Ratio, 3 mH Prim. Inductance, 0.33Ω Prim. Resistance

Manufacturer:
Manufacturer Part No:
IT313
Enrgtech Part No:
ET100200573
Warranty:
Manufacturer
100 - In Stock

Ships in 2-3 business days

Each

Quantity
Unit Price (ex VAT)
1
£ 11.27
10
£ 8.32
25
£ 7.69
Order Today!
From: United Kingdom
Est Ship Date: 23 Aug, 2026
Est Fastest Delivery: 24 Aug, 2026
Another Location
Quantity
Unit Price (ex VAT)
5
£ 25.42
10
£ 24.90
25
£ 24.84
Order Today!
From: United Kingdom
Est Ship date: 22 Aug, 2026
Est Delivery date: 23 Aug, 2026
Depth:
25mm
Width:
25.5mm
Length:
25.5mm
Series:
IT
Weight:
6g
Current:
1A
Mount Type:
Through Hole
Turns Ratio:
1:1:1
Product Type:
Pulse Transformer
Number of Pins:
6
Isolation Voltage:
4kV
Primary Inductance:
3mH
Standards/Approvals:
RoHS
Primary DC Resistance:
0.33Ω
Secondary DC Resistance:
0.4Ω
Maximum Operating Frequency:
40kHz
Minimum Operating Frequency:
40kHz
Maximum Operating Temperature:
70°C
Minimum Operating Temperature:
-25°C
