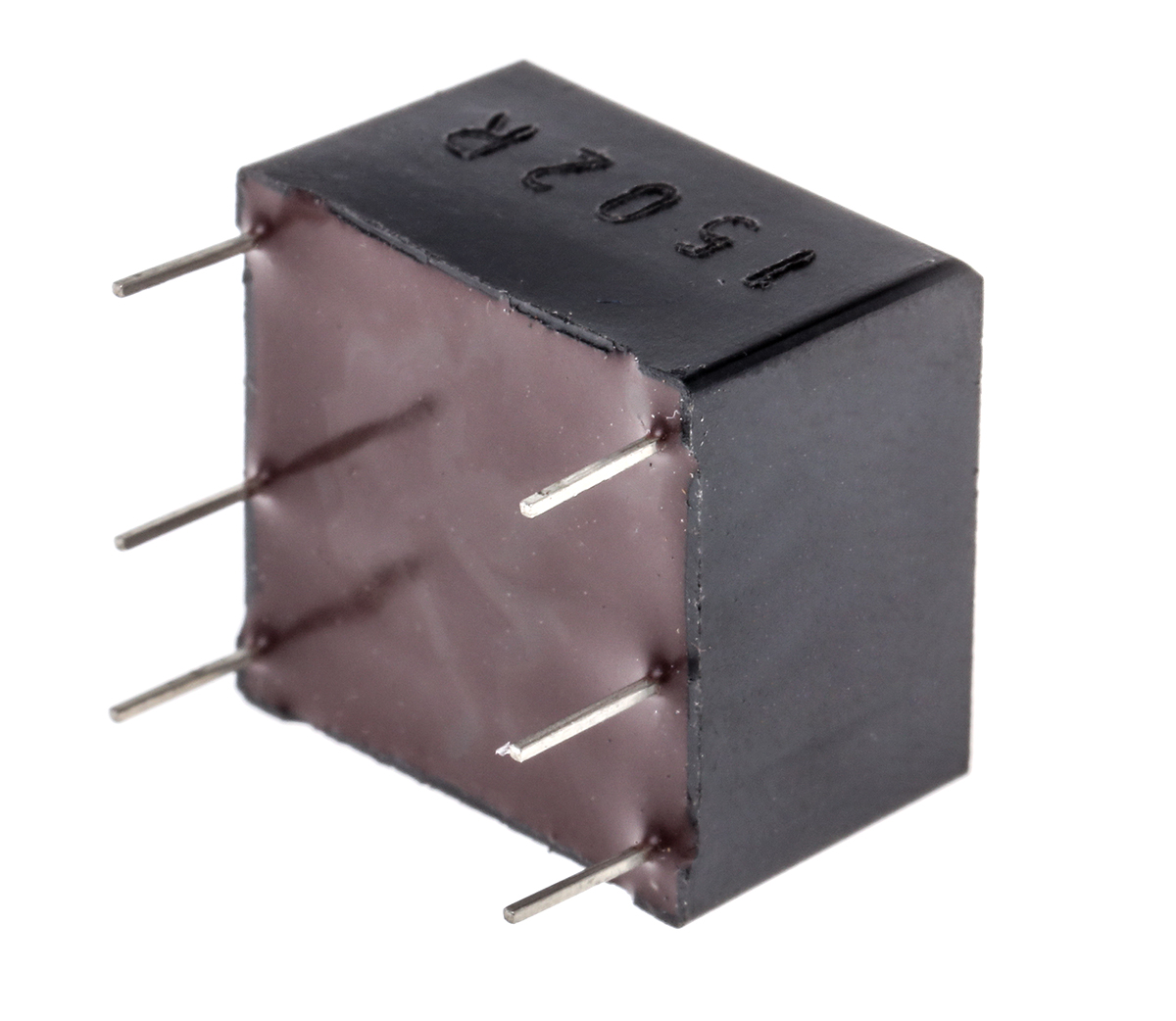

Schaffner Through Hole Pulse Transformer 1:1:1 Turns Ratio, 2.5mH Prim. Inductance

Schaffner Through Hole Pulse Transformer 1:1:1 Turns Ratio, 2.5 mH Prim. Inductance, 0.8Ω Prim. Resistance

Manufacturer:
Manufacturer Part No:
IT243
Enrgtech Part No:
ET100710192
Warranty:
Manufacturer
15 - In Stock

Ships in 2-3 business days

Each

Quantity
Unit Price (ex VAT)
1
£ 4.79
50
£ 3.26
100
£ 3.05
Order Today!
From: United Kingdom
Est Ship Date: 26 Aug, 2026
Est Fastest Delivery: 27 Aug, 2026
Another Location
Quantity
Unit Price (ex VAT)
1
£ 10.36
10
£ 8.60
25
£ 8.08
Order Today!
From: United Kingdom
Est Ship date: 25 Aug, 2026
Est Delivery date: 26 Aug, 2026
Depth:
11.3mm
Width:
17.6mm
Length:
16.7mm
Series:
IT
Weight:
6g
Current:
1A
Mount Type:
Through Hole
Turns Ratio:
1:1:1
Product Type:
Pulse Transformer
Number of Pins:
6
Isolation Voltage:
4kV
Primary Inductance:
2.5mH
Standards/Approvals:
RoHS
Primary DC Resistance:
0.8Ω
Secondary DC Resistance:
0.8Ω
Maximum Operating Frequency:
40kHz
Minimum Operating Frequency:
40kHz
Maximum Operating Temperature:
70°C
Minimum Operating Temperature:
-25°C
