Open & Encapsulated PCB Mount HF Pulse Transformers
Open or encapsulated PCB mounting transformers, designed for wide band and general pulse applications, in particular thyristor and triac control systems, where they provide isolation between firing circuit and load.

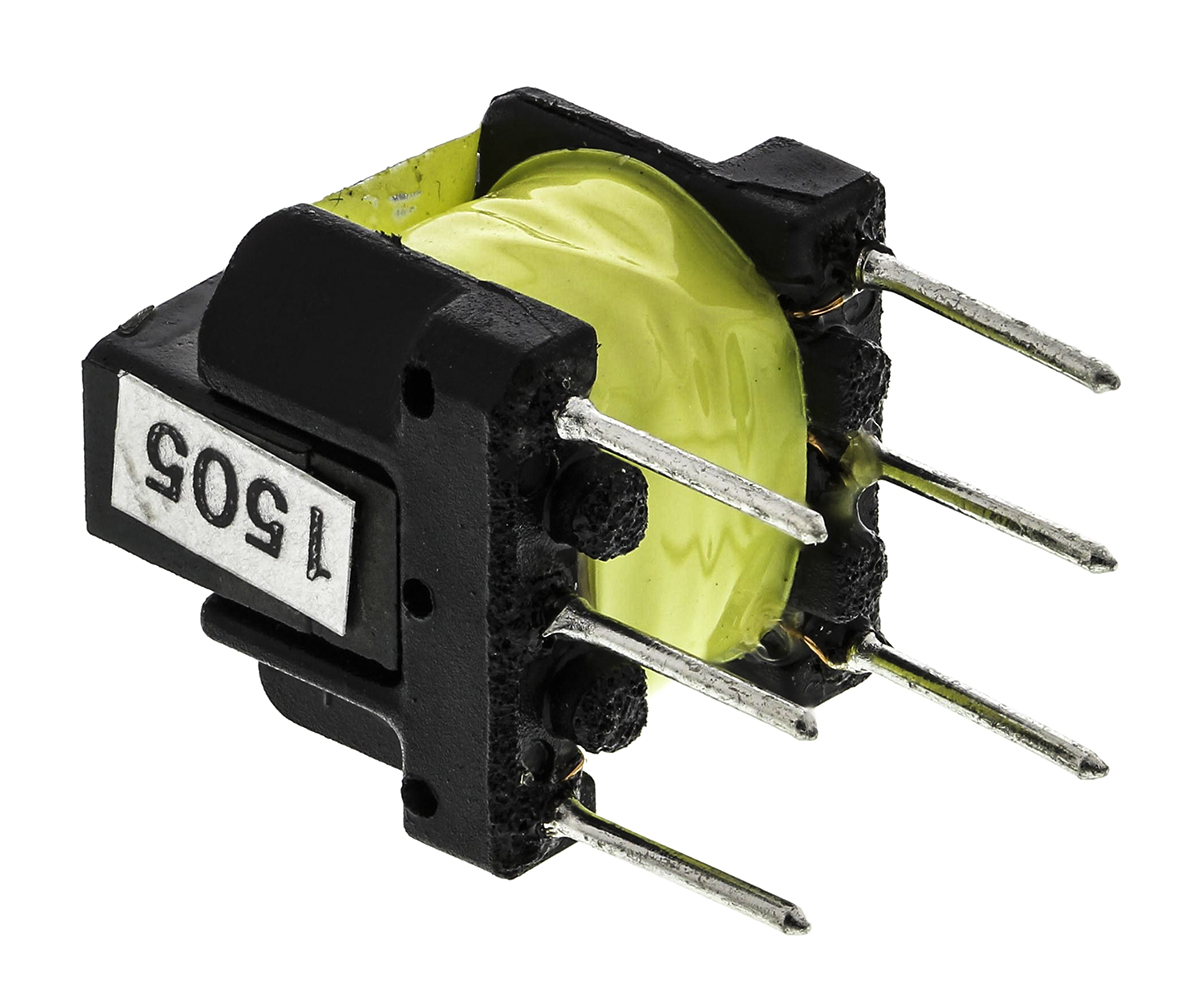

Through Hole Pulse Transformer 1:1 Turns Ratio, 3mH Prim. Inductance, 1.1Ω Prim. Resistance
Manufacturer:
OEP
Manufacturer Part No:
PT6
Enrgtech Part No:
ET16911044
Warranty:
Manufacturer
£ 4.73
Checking for live stock
Primary Inductance:
3mH
Primary DC Resistance:
1.1Ω
Secondary DC Resistance:
0.9Ω
Turns Ratio:
1:1
Mounting Type:
Through Hole
Leakage Inductance:
19µH
Dimensions:
13 x 13 x 15mm
Depth:
15mm
Length:
13mm
Width:
13mm
Maximum Operating Frequency:
1MHz
Minimum Operating Frequency:
3kHz
