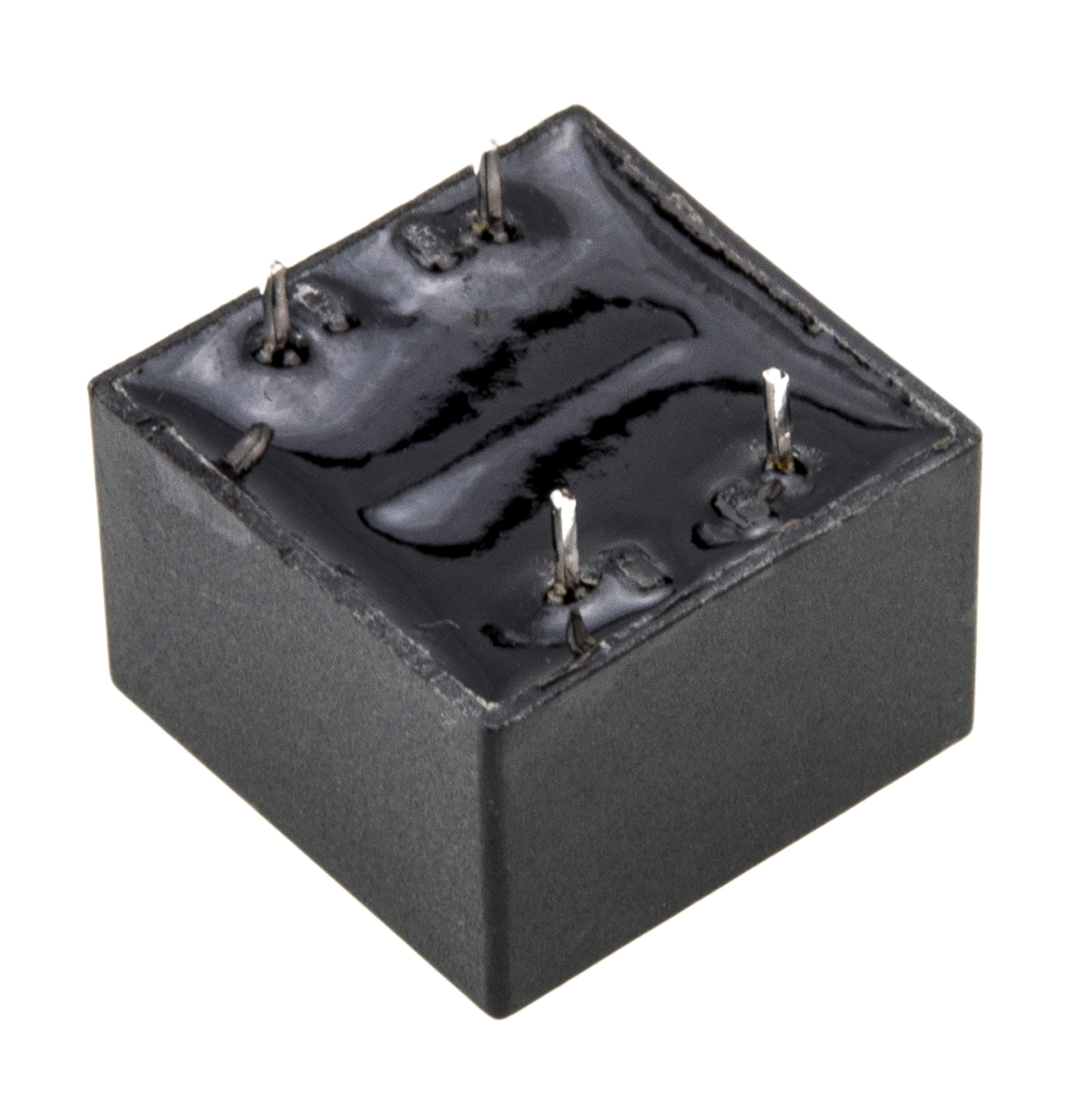

OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 4.15H Prim. Inductance, 65Ω Prim. Resistance

Oep OEP1200 OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 4.15 h Prim. Inductance, 65Ω Prim. Resistance

Manufacturer:
Manufacturer Part No:
OEP1200
Enrgtech Part No:
ET20282440
Warranty:
Manufacturer
Another Location
1885 - In Stock

Estimated Delivery Time: 7-13 weeks

Each

Quantity
Unit Price (ex VAT)
1
£ 9.92
10
£ 8.80
25
£ 8.72
Order Today!
From: United Kingdom
Est Ship date: 25 Aug, 2026
Est Delivery date: 26 Aug, 2026
Quantity
Unit Price (ex VAT)
1
£ 2.62
25
£ 2.27
100
£ 1.90
Order Today!
From: United Kingdom
Est Ship Date: 26 Aug, 2026
Est Fastest Delivery: 27 Aug, 2026
Depth:
12.5mm
Width:
18mm
Length:
18mm
Mount Type:
Through Hole
Turns Ratio:
1:1
Product Type:
Pulse Transformer
Insertion Loss:
1.3dB
Isolation Voltage:
5kV
Leakage Inductance:
20mH
Primary Inductance:
4.15h
Standards/Approvals:
BS6305, BABT CR/0126, EN41003, EN60950
Primary DC Resistance:
65Ω
Secondary DC Resistance:
65Ω
Maximum Operating Frequency:
4kHz
Minimum Operating Frequency:
300Hz
Maximum Operating Temperature:
70°C
Minimum Operating Temperature:
0°C
