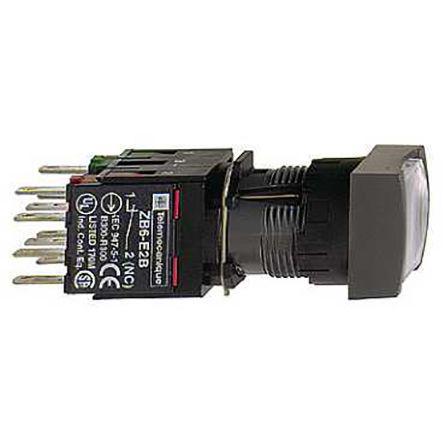

XB6 Illuminated White Push Button Momentary

Maximum Current:

3 A ac, 220 mA dc

Maximum AC Voltage:

240V

Illuminated:

Yes

Mounting Type:

Flush Mount

IP Rating:

IP65

Minimum Operating Temperature:

-25°C

Series:

XB6

Illumination Voltage:

12 → 24V

Push Button Style:

Square

Push Button Actuation:

Momentary

Push Button Colour:

White

Cutout Diameter:

16.2mm

Maximum DC Voltage:

250V

Maximum Operating Temperature:

+70°C

Terminal Type:

Quick Connect, Solder Tag

HTSUS:

8536.50.9033

RoHS Status:

ROHS3 Compliant

Electrical Life:

1,000,000 Cycles

Termination Style:

Quick Connect - 0.110" (2.8mm)

Voltage Rating - DC:

125 V

Operating Temperature:

-25°C ~ 70°C

Panel Cutout Dimensions:

Circular - 16.00mm Dia

Mechanical Life:

-

Type:

Standard, Illuminated

Color - Actuator/Cap:

White

title:

XB6CW1B1B

Voltage Rating - AC:

120 V

REACH Status:

REACH Affected

Illumination Type, Color:

LED, White

Switch Function:

On-Off

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Circuit:

SPST-NO

standardLeadTime:

5 Weeks

Current Rating (Amps):

3A (AC), 220mA (DC)

Ingress Protection:

IP65 - Dust Tight, Water Resistant

Features:

-

Mounting Type:

Panel Mount, Front

Series:

Harmony XB6

Packaging:

Box

Actuator Type:

Square, Button

Illumination Voltage (Nominal):

12 VDC

ECCN:

EAR99
