Spring Clamp 24Vac/dc LED Modules To be combined with switchheads for integral LED facility Accepts stranded or solid wires with or without cable ends Different wire sizes can be used: Minimum: 1x24AWG/0.2mm 2 without cable end, maximum: 2x14AWG/1.5mm 2 without cable end, 2x16AWG/1.5mm 2 with cable ends Single lever action opens both cable clamps Design prevents clamping on insulation Visible indication of a secure connection Moulded-in holes for test probes Approvals CE, UL, CSA, CCC Schneider Electric Harmony 5 Spring Clamp Terminal Contact Blocks & LED Modules New range of contact blocks and illumination modules with novel spring clamps for use with Harmony style 5 switches and pilot lights. Fast Wiring – up to 3 times faster to wire saving time and money Higher vibration resistance Fits standard ZB4 and ZB5 devices use’s the same fast mounting system customers are used to with the screw clamp modules No tooling required to fit the cables

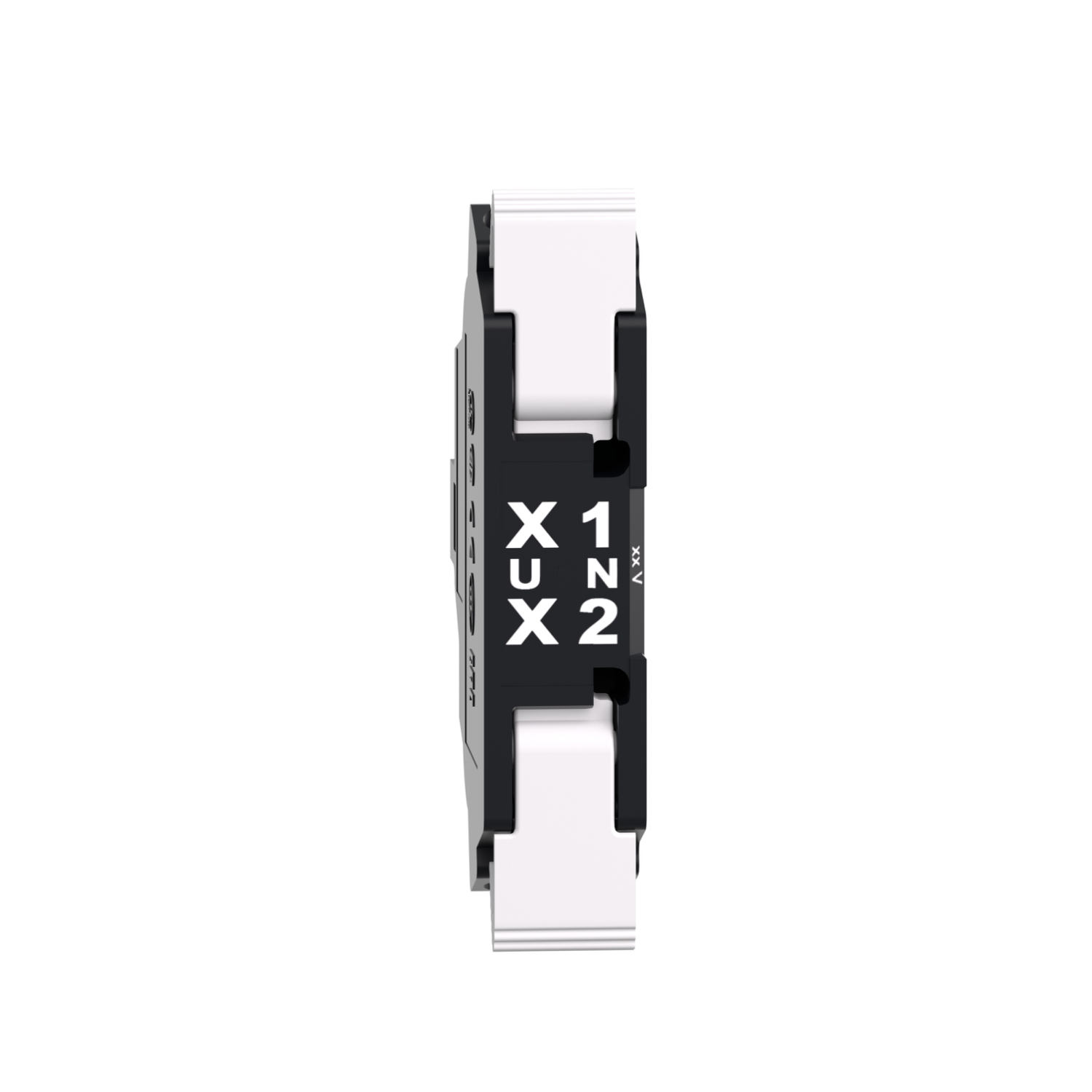

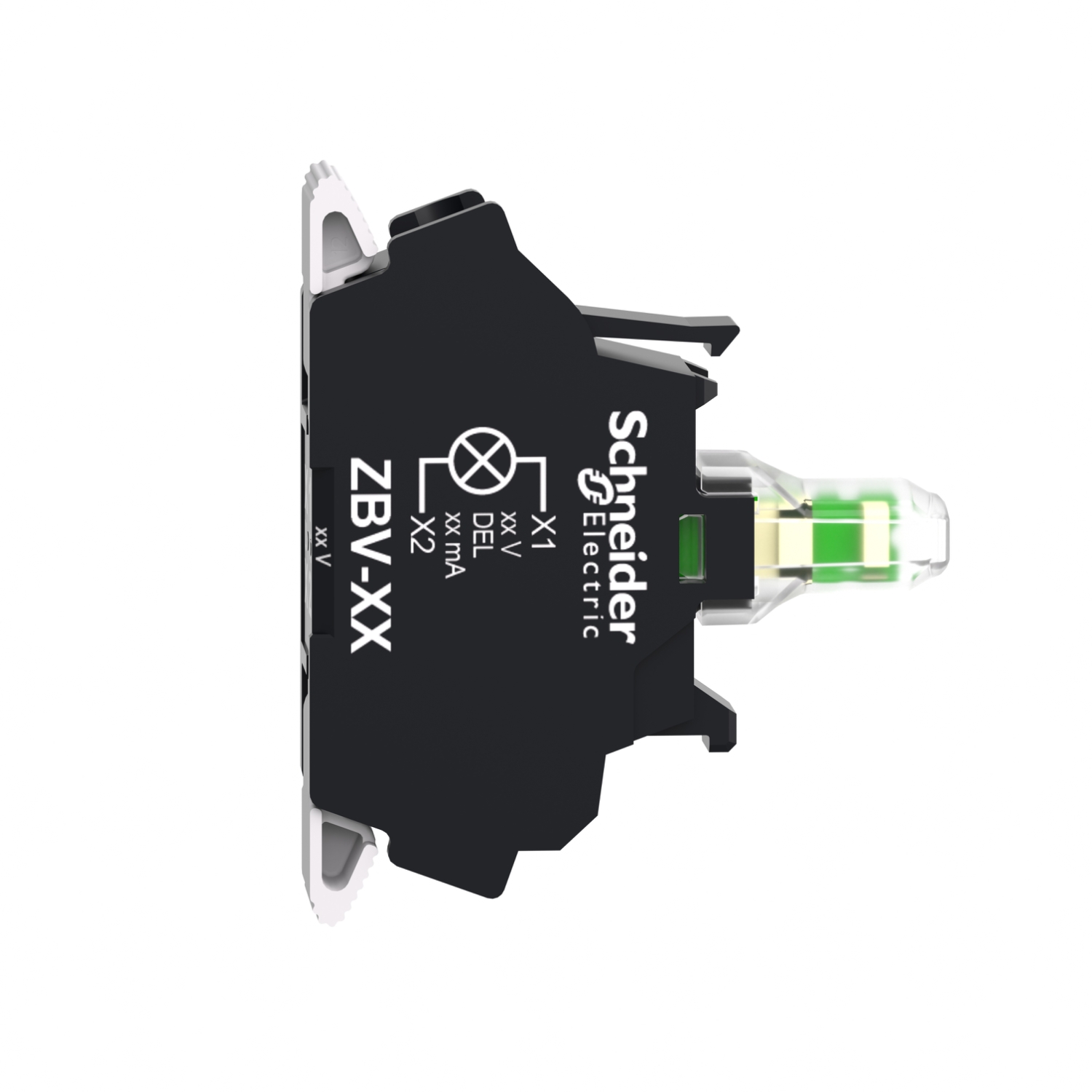

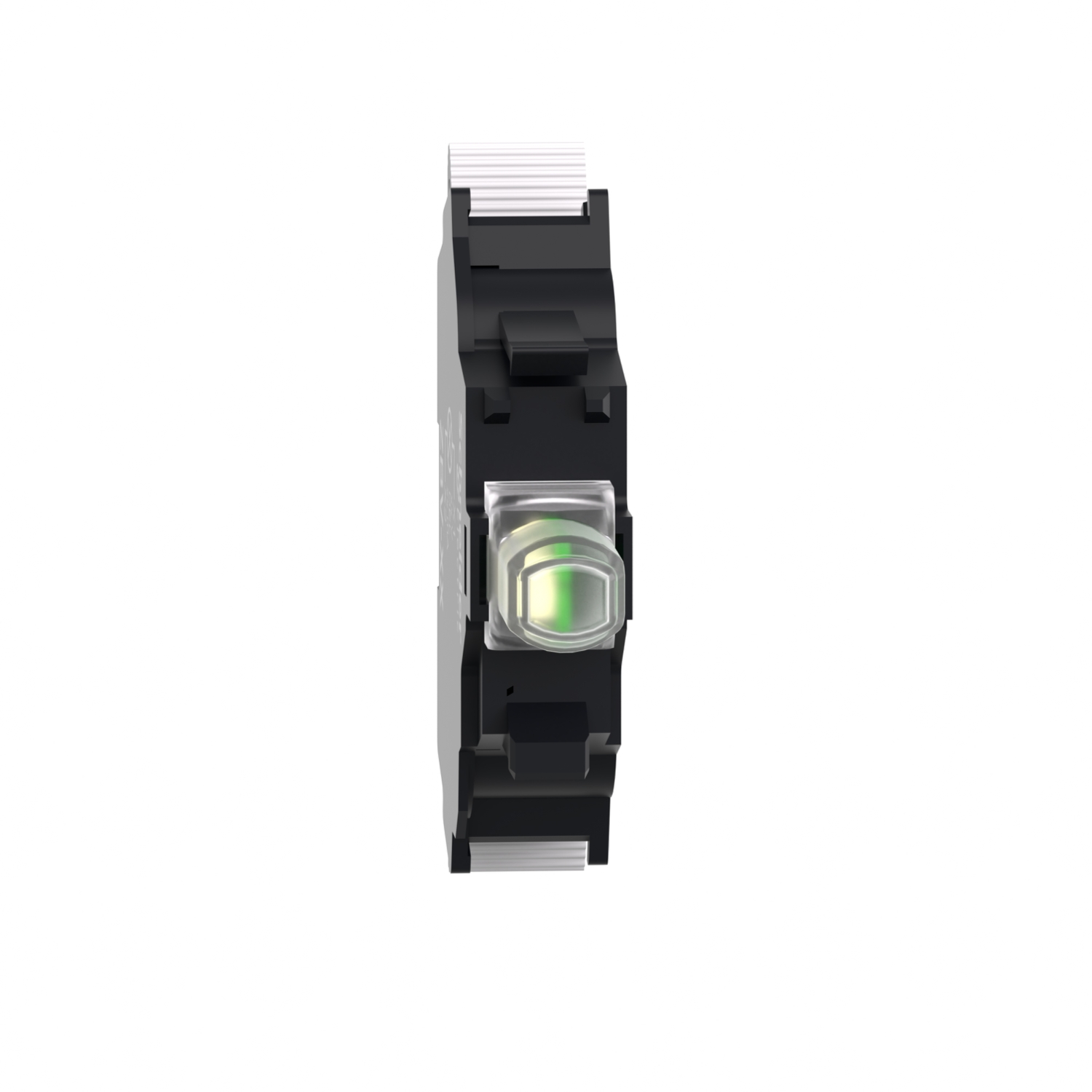

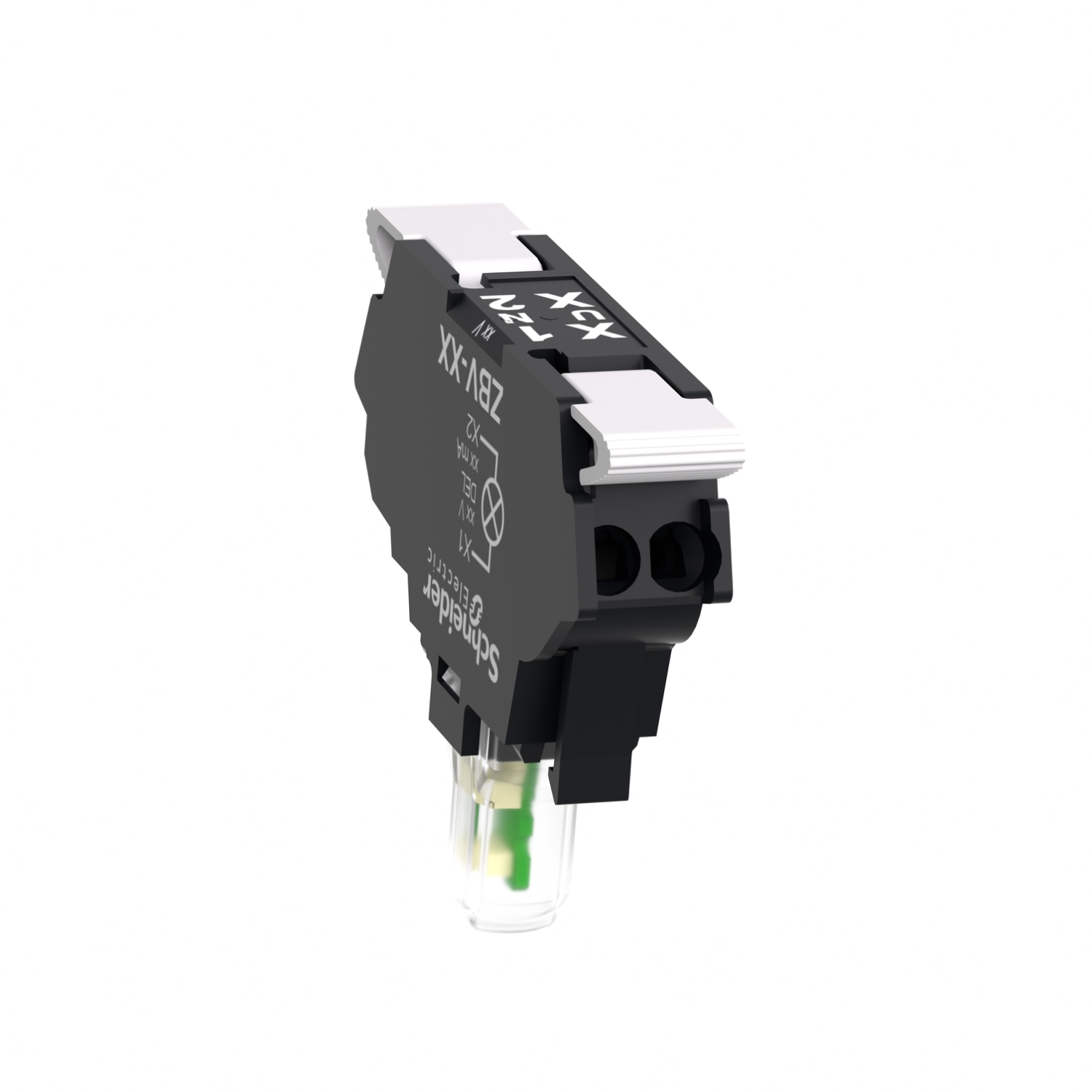

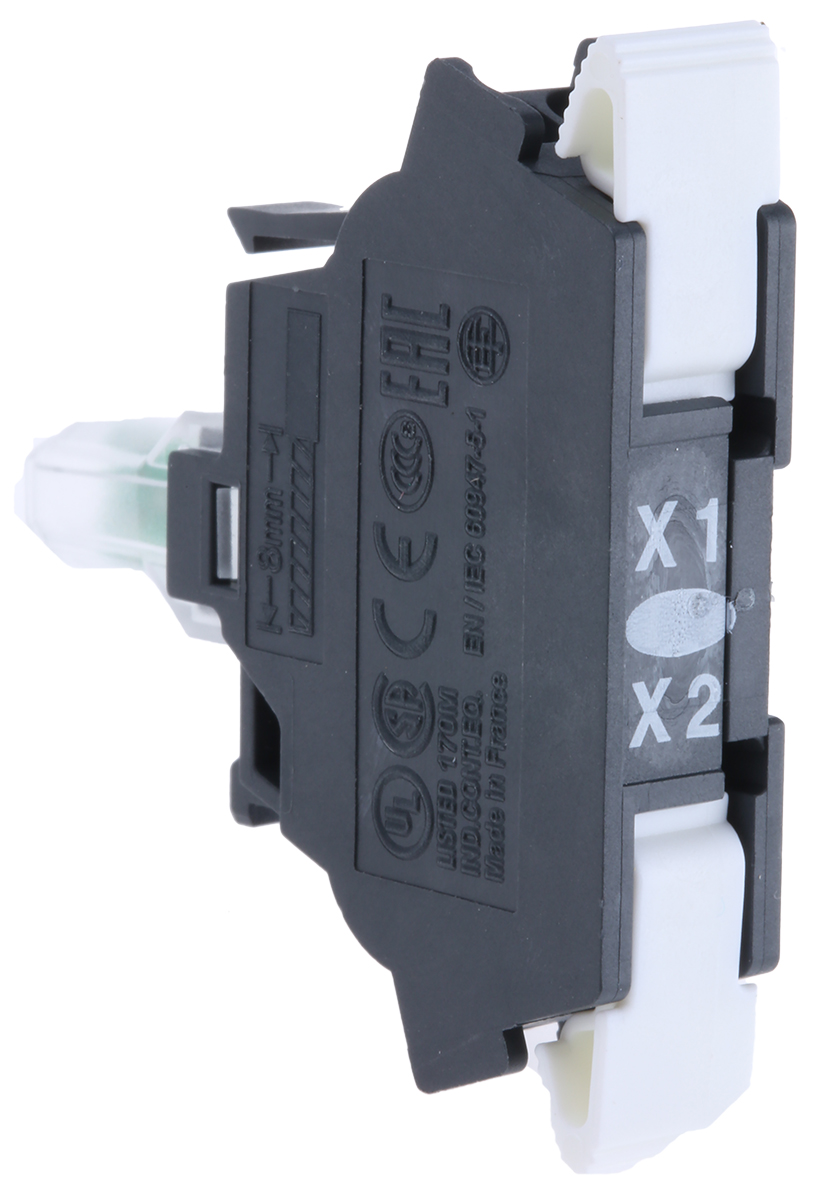

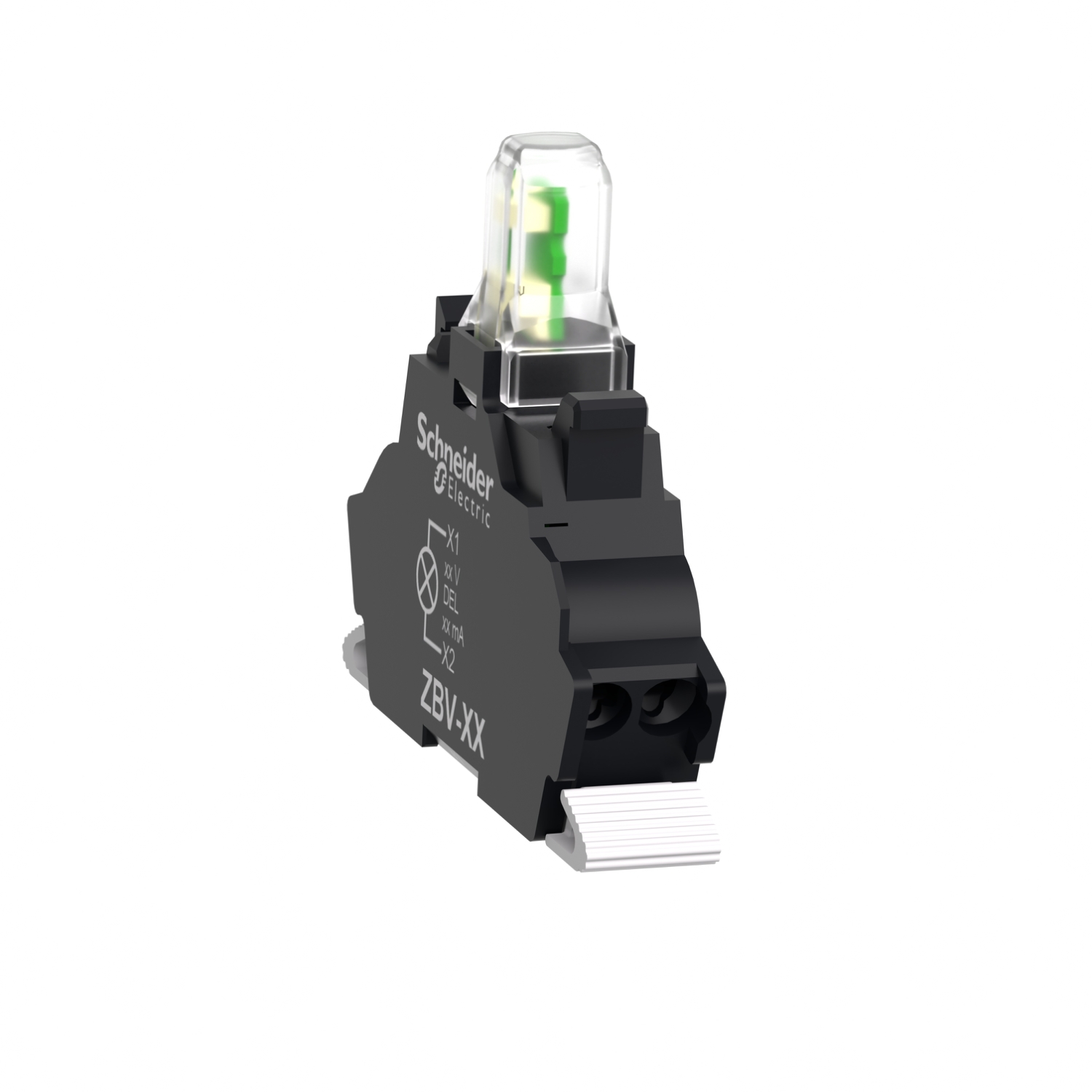

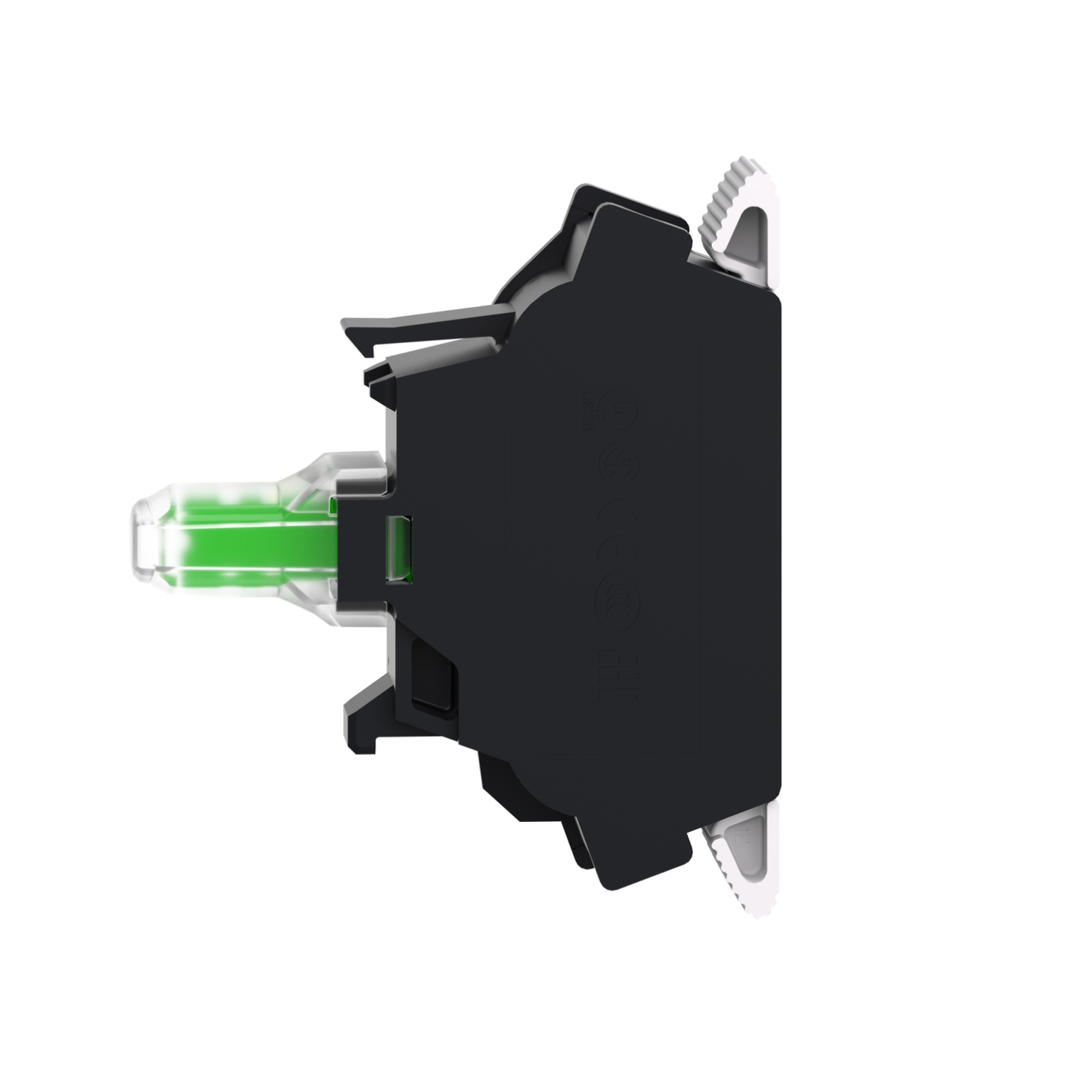

Schneider Electric Harmony XB Light Block LED White 24 V ac/dc Screw terminal

Manufacturer:
Manufacturer Part No:
ZBVB15
Enrgtech Part No:
ET13943555
Warranty:
Manufacturer
£ 26.98
Checking for live stock
Better World Verification:
Green Premium
Better World Product:
Yes
Current Rating:
18mA
Voltage Rating:
24V ac/dc
Series:
Harmony XB
Body/Fixing Collar Included:
No
Block Type:
Light Block
LED Included:
Yes
Illumination Type:
Universal LED
Illumination Colour:
White
Terminal Type:
Screw Clamp
HTSUS:
8541.41.0000
RoHS Status:
ROHS3 Compliant
Color:
White
Series:
Harmony XB6
REACH Status:
REACH Affected
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Packaging:
Box
Voltage:
24V
standardLeadTime:
5 Weeks
Type:
LED
(Select First, Then Apply Filters) Compatible Series:
Schneider Electric, Harmony XB4, Harmony XB5
ECCN:
EAR99
pdf icon
Line Drawing - ZBVB15(Technical Reference)
pdf icon
0553848 Datasheet(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
ZBVB15 Datasheet(Datasheets)
