Pendant Control Station Accessories A range of Schneider accessories from the Harmony XAC series for use with pendant control stations. Suitable for all station types Schneider Electric - Push Buttons Pendant control stations are used on hoists, overhead cranes and as remote control stations. They conform to EN60947-1, EN60947-5-1, NFC63-140 and VDE0660 part 2 standards. All actuator buttons incorporate 1 N/O and 1 N/C positive action contact rated at 240Vac, 3A I th ;250Vdc, 0.27A I th ; 10A I th allowing electrical cross-interlocking if desired. Environmental protection to IP65 Fitted cable clamps and stepped cable entry boots Mechanical interlocking between each pair of opposing pushbutton actuators Adapters supplied for self-supporting pendant cable, with lug for chain support Key Characteristics Pendant Control Functions Standard With Safety Features Pistol Grip Intuitive Metal type 4 way 6 way 8 way 2 way 6 way 8 way 2 way 3 way 2-way 4 way 8 way stock no. 340-689 340-695 609-4499 , 609-4506 250-7963 250-7979 250-7985 340-673 250-7957 340-702 289-1943 289-4015 Hoist Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Lower Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Right Yes Yes Yes No Yes Yes No No No No Yes Left Yes Yes Yes No Yes Yes No No No No Yes Forward No Yes Yes No No Yes No No No No Yes Reverse No Yes Yes No No Yes No No No No Yes E-Stop Yes Yes No No No No No Yes Yes No No Higher category E-Stop (EN954-1) No No Yes Yes Yes Yes No No No Yes Yes On No No Yes No Yes Yes No No No Yes Yes

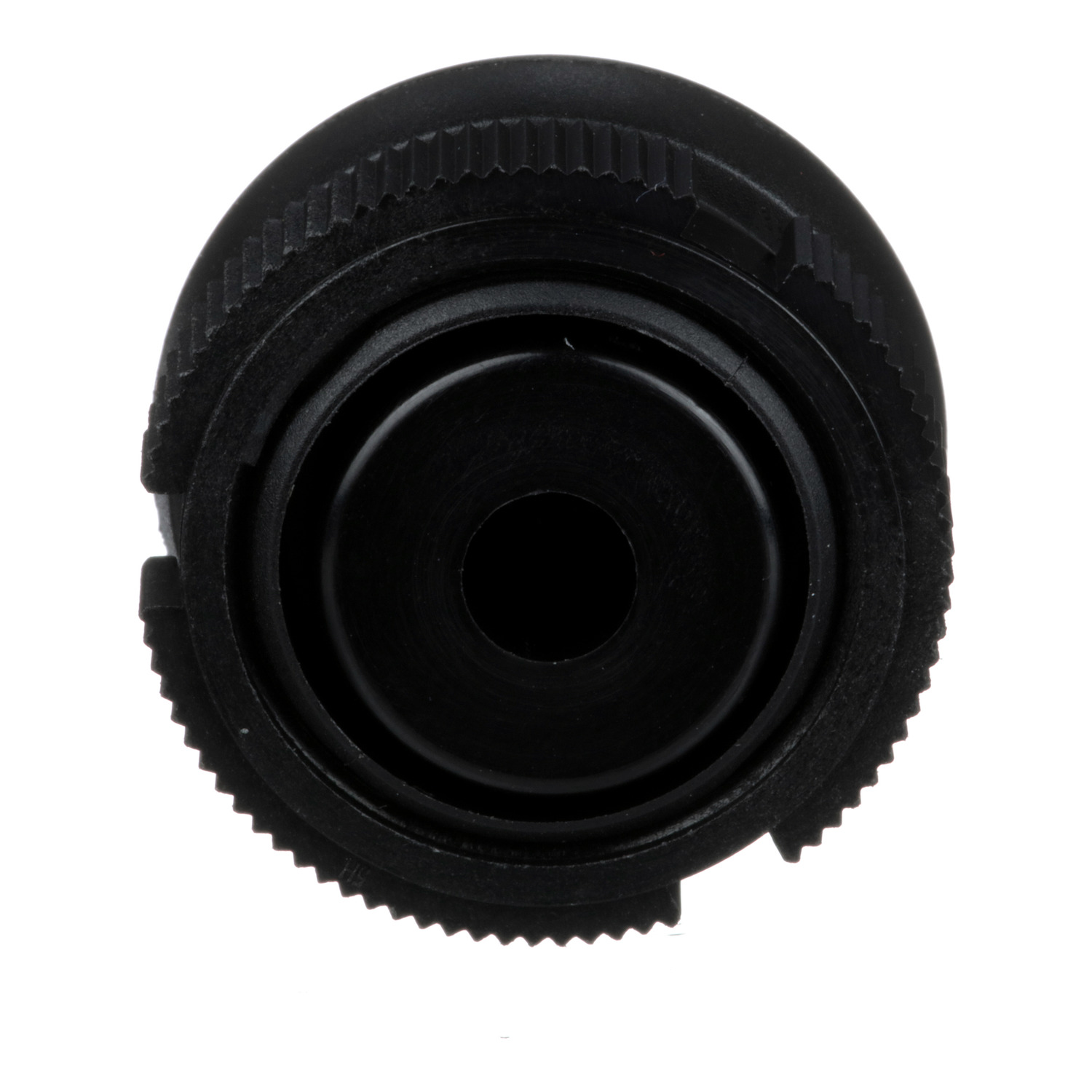

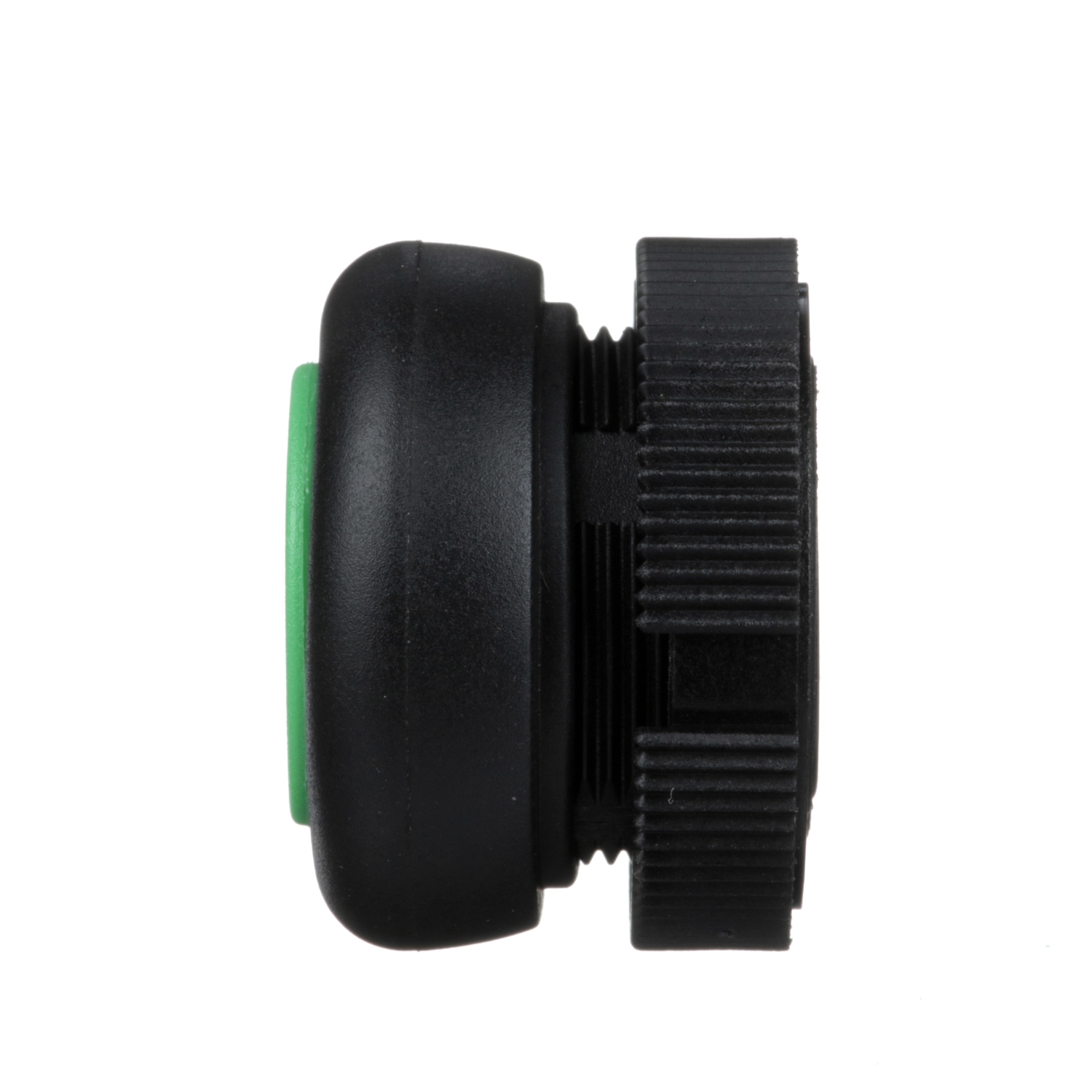

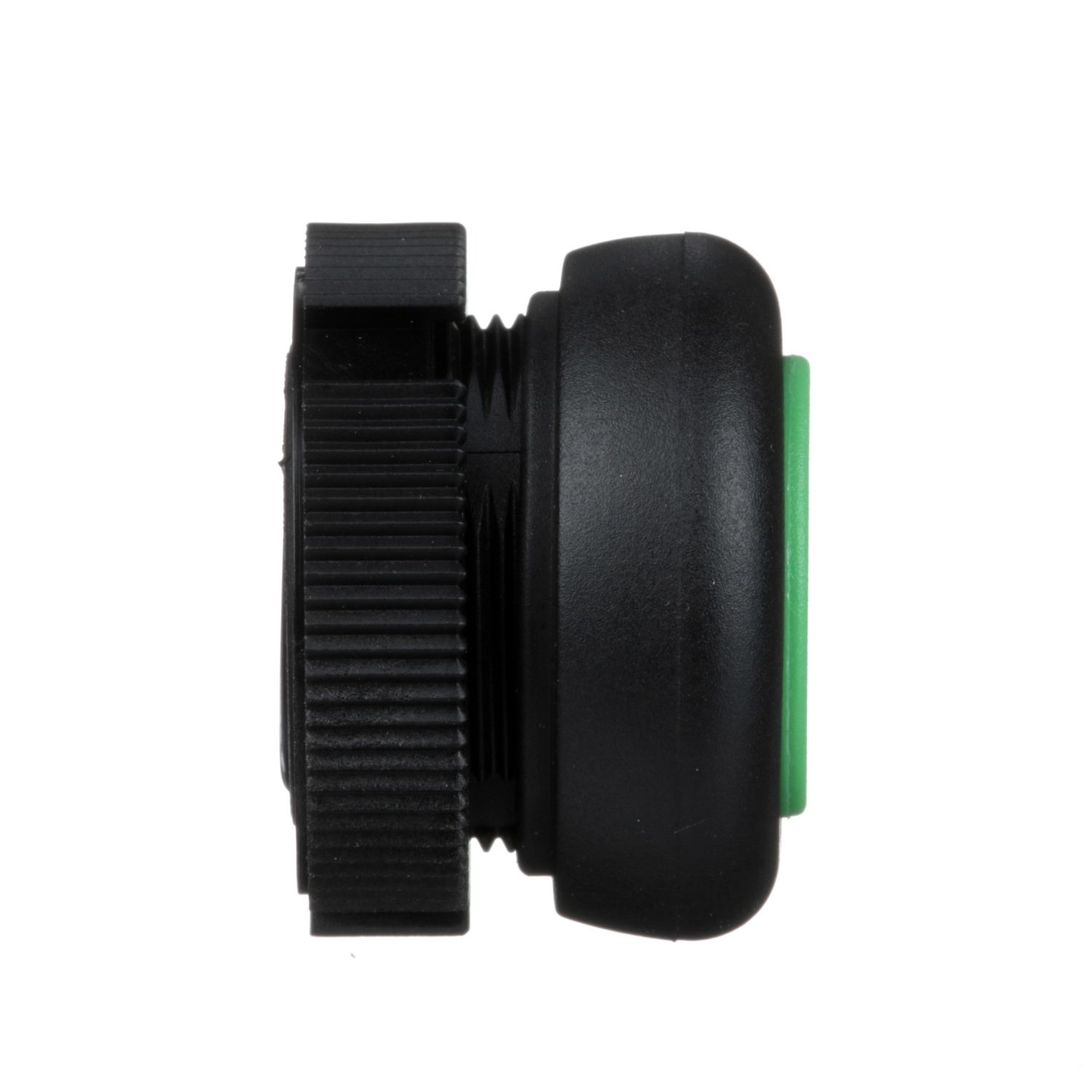

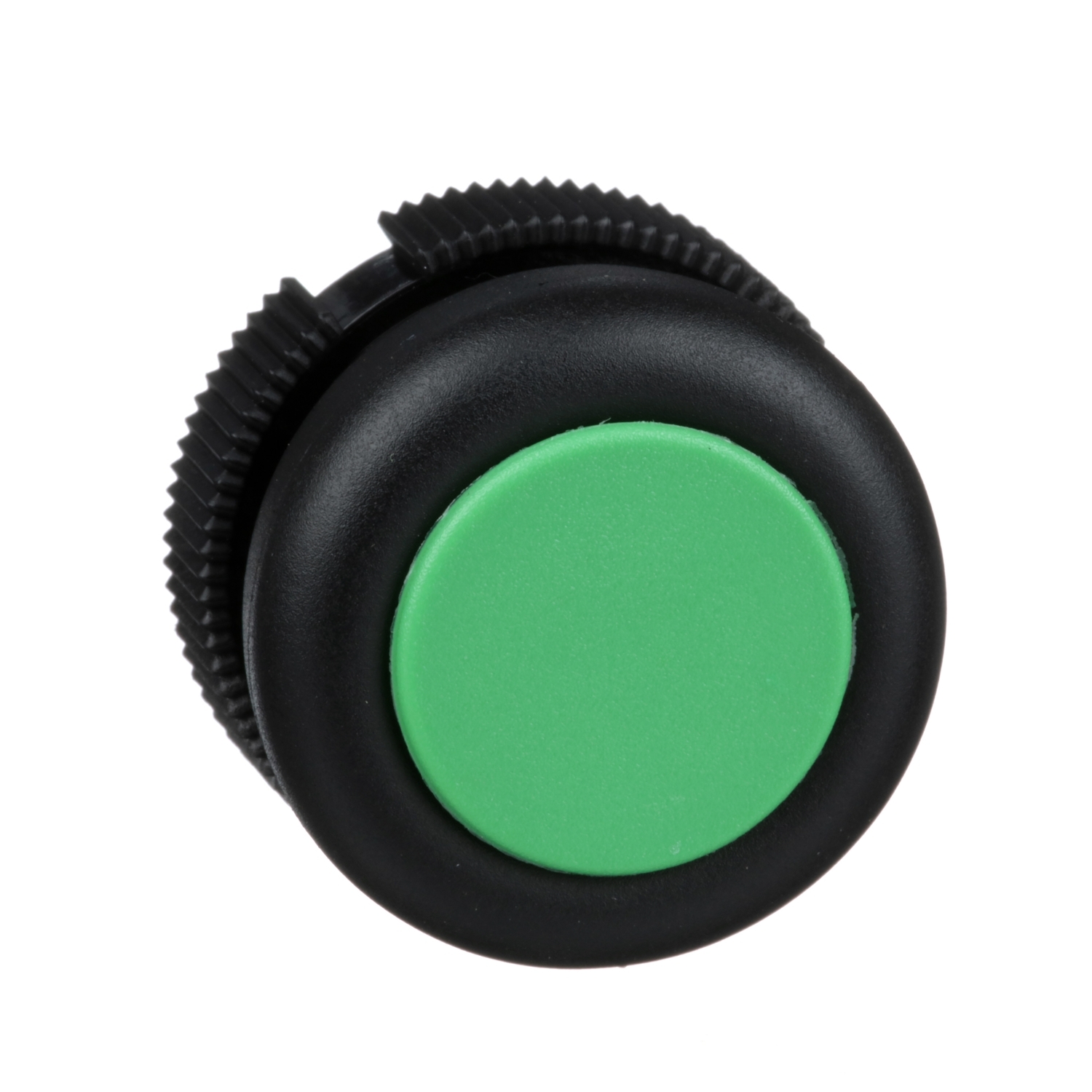

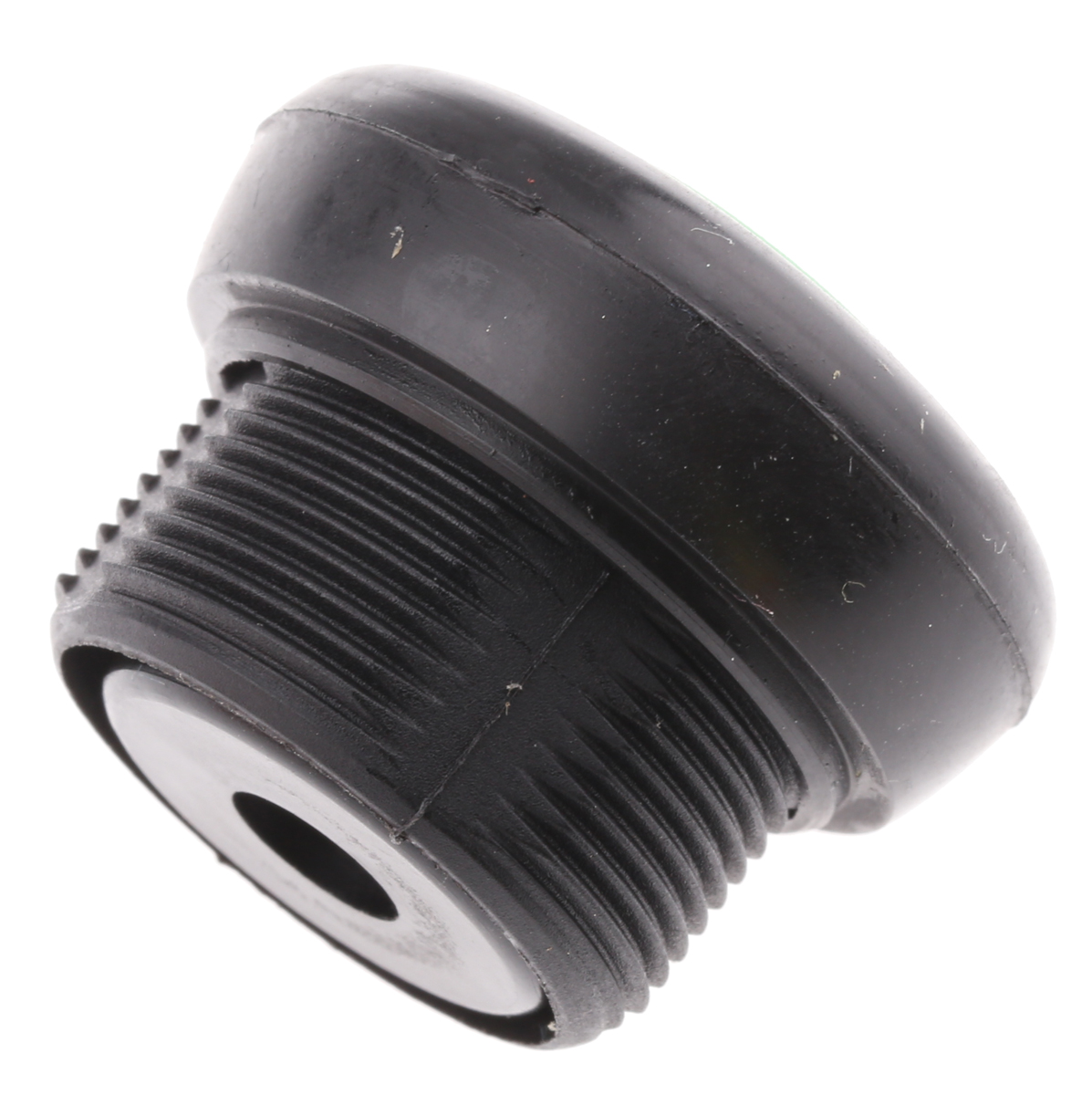

Schneider Electric Harmony XAC Series, Green Push Button Head, Front Mounting, 22mm Cutout

Manufacturer:
Manufacturer Part No:
XACA9413
Enrgtech Part No:
ET13808931
Warranty:
Manufacturer
£ 21.28
Checking for live stock
Push Button Colour:
Green
IP Rating:
IP69
Series:
Harmony XAC
Minimum Operating Temperature:
-25°C
Push Button Style:
Round
Push Button Material:
Plastic
Cutout Diameter:
22mm
Maximum Operating Temperature:
+70°C
Push Button Actuation:
Front Mounting
Type:
Maintained
Panel Cutout Dimensions:
-
HTSUS:
8538.90.6000
RoHS Status:
ROHS3 Compliant
Series:
Harmony XAC
REACH Status:
REACH Unaffected
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Packaging:
Box
Actuator Type:
Pushbutton, Round
Illumination:
Non-Illuminated
standardLeadTime:
5 Weeks
Requires:
Contact Block(s)
(Select First, Then Apply Filters) Compatible Series:
Schneider, Harmony XAC
ECCN:
EAR99
pdf icon
Datasheet_XACA9413(Technical Reference)
pdf icon
Datasheet XACA9411(Technical Reference)
pdf icon
Catalogue - Pendant Control Stations(Technical Reference)
pdf icon
Instruction Sheet - XACA Series(Technical Reference)
pdf icon
XACA9413 Datasheet(Datasheets)
