Pushbutton Head, Illuminated Schneider Electric XB6/ZB6 push buttons, pilot lights and selector switches with plastic bezels are specifically desgined for applications where the surface area is restricted. The IP 65 degree of protection enables these products to be used in all types of applications. Heads for illuminated push buttons Different colours available Plastic bezel Schneider Electric ZB6 Harmony 16mm A range of IP65 protected components which are easily and quickly mounted in 16mm diameter holes. Each component can be ordered separately to build the required device. Also available are contact blocks with slow-break positive opening contacts with ’Faston’/solder connections. Rating U e 250Vac, Ie 1.5A; Ue 250Vdc, Ie 0.1A, Io A I th operating temp. -25 to +70°C.

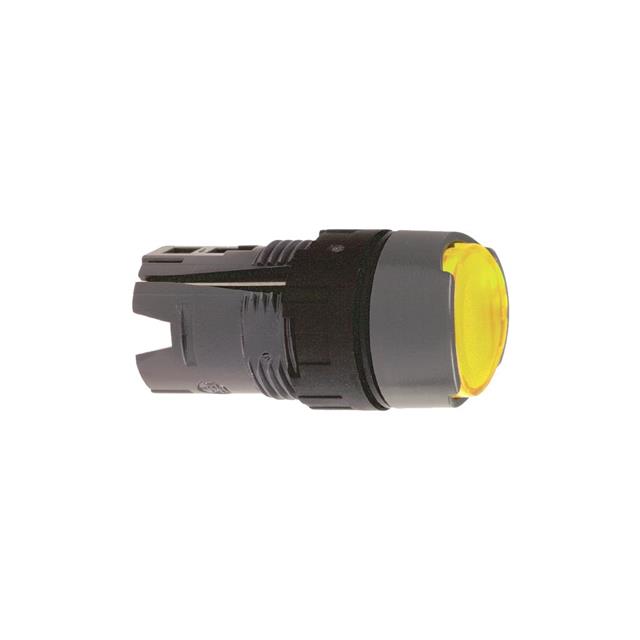

Schneider Electric Harmony XB6 Series, Yellow Push Button Head, Spring Return, 16mm Cutout

Manufacturer:
Manufacturer Part No:
ZB6AW5
Enrgtech Part No:
ET13862600
Warranty:
Manufacturer
£ 24.98
Checking for live stock
Better World Verification:
Green Premium
Better World Product:
Yes
Illuminated:
Yes
Mounting Type:
Panel Mount
IP Rating:
IP65
Series:
Harmony XB6
Minimum Operating Temperature:
-40°C
Push Button Style:
Round
Push Button Material:
Plastic
Push Button Colour:
Yellow
Cutout Diameter:
16mm
Maximum Operating Temperature:
+70°C
Push Button Actuation:
Spring Return
Push Button Diameter:
18mm
Type:
Momentary
Panel Cutout Dimensions:
16mm (Round)
RoHS Status:
ROHS3 Compliant
Series:
Harmony XB6
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Packaging:
Box
Actuator Type:
Pushbutton, Round
Illumination:
Illuminated
standardLeadTime:
5 Weeks
Requires:
Contact Block(s), Illumination Source
(Select First, Then Apply Filters) Compatible Series:
Schneider, Harmony XB6
pdf icon
Datasheet ZB6AW5(Technical Reference)
pdf icon
Harmony Stile 6 Catalogue(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
ZB6AW5 Datasheet(Datasheets)
