Voltage Rating:
240V ac
Push Button Style:
Round
Maximum AC Voltage:
600V
Illuminated:
No
Contact Current Rating:
3A
IP Rating:
IP66
Manufacturer Part No.:

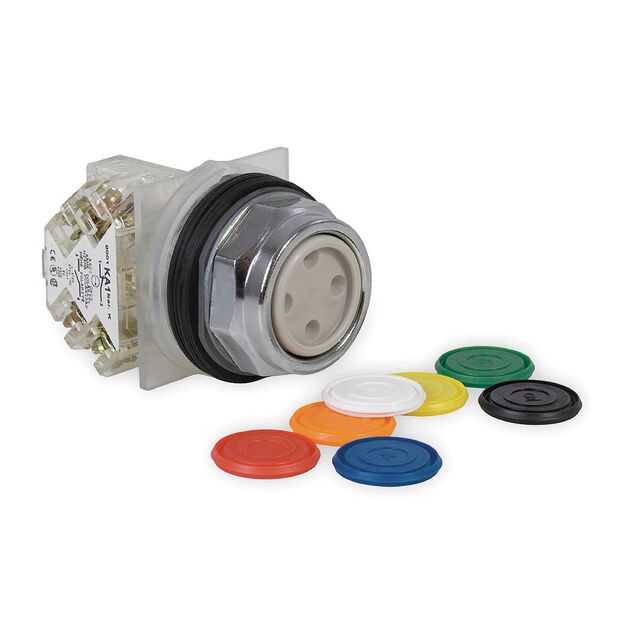

9001KR1UH13
Maximum Operating Temperature:
+70°C
Terminal Type:
Screw
Push Button Colour:
Black, Blue, Green, Orange, Red, White, Yellow
Operating Temperature Range:
-25 → +70°C
Contact Configuration:
SPDT
Switch Operation:
Momentary
Better World Verification:
Green Premium
Better World Product:
Yes
Push Button Diameter:
30mm
Series:
Harmony 9001K
Push Button Material:
Metal
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=516029&DisplayLogo=False
Panel Cut Out Diameter:
30mm
Minimum Operating Temperature:
-25°C
Contact Material:
Silver Alloy
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Electrical Life:
-
Termination Style:
Screw Terminal
Voltage Rating - DC:
125 V
Operating Temperature:
-25°C ~ 70°C
Panel Cutout Dimensions:
Circular - 30.00mm Dia
Mechanical Life:
5,000,000 Cycles
Type:
Standard
Color - Actuator/Cap:
-
title:
9001KR1UH13
Voltage Rating - AC:
240 V
REACH Status:
REACH Affected
Illumination Type, Color:
-
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPDT
standardLeadTime:
5 Weeks
Current Rating (Amps):
3A (AC), 550mA (DC)
Ingress Protection:
IP66 - Dust Tight, Water Resistant
Features:
-
Mounting Type:
Panel Mount, Front
Series:
Harmony 9001K
Packaging:
Box
Actuator Type:
Round, Button, Flush
Illumination Voltage (Nominal):
-
ECCN:
EAR99
