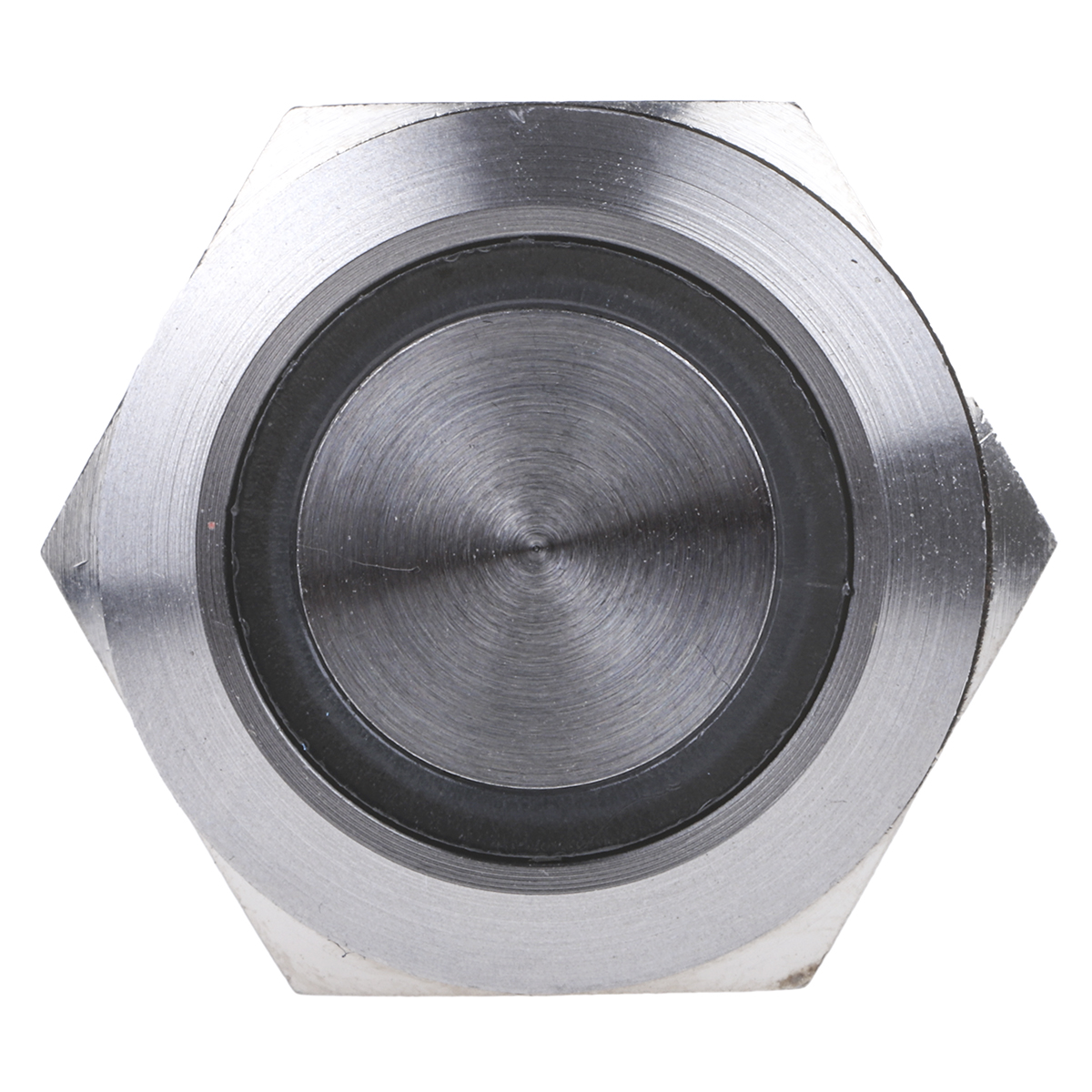

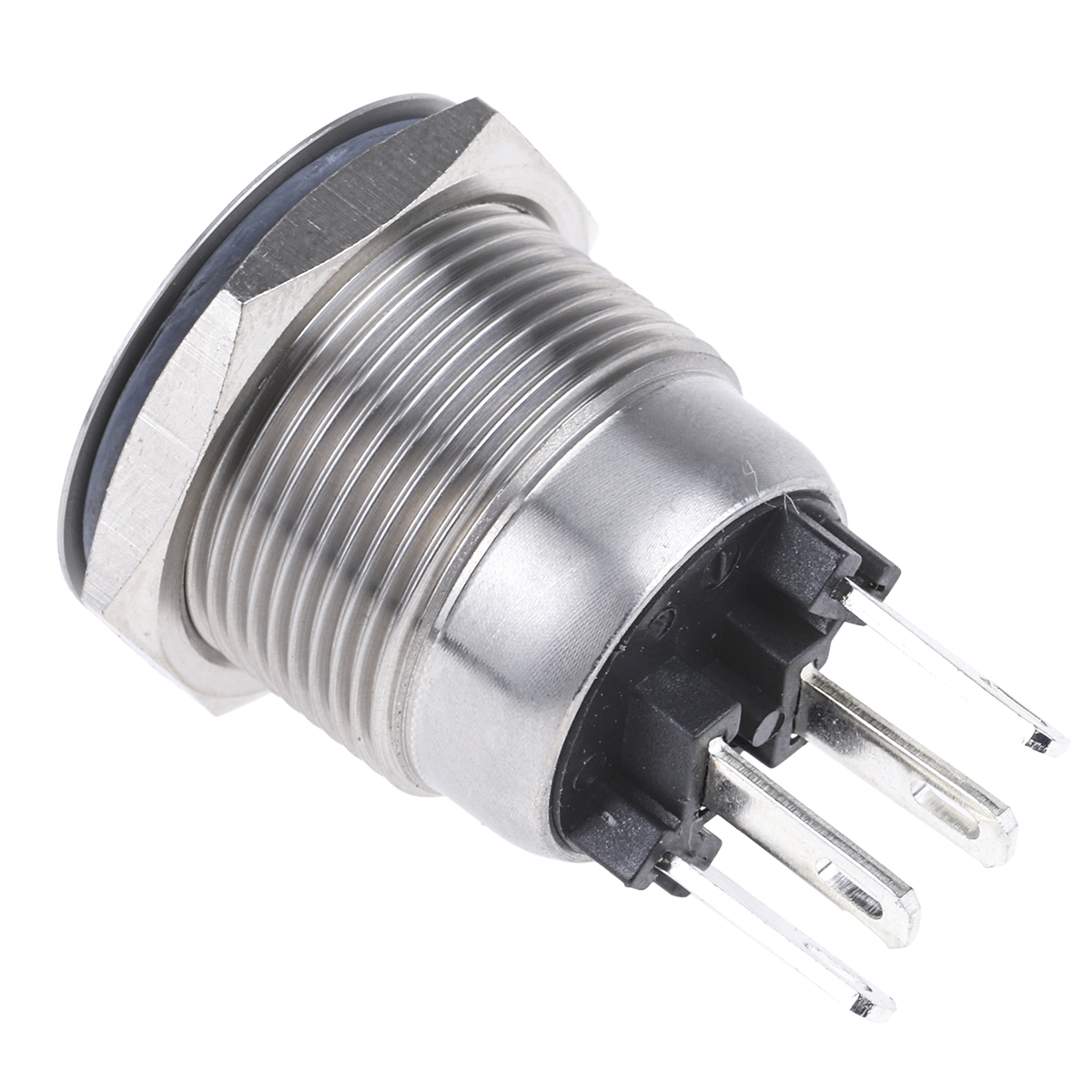

MPI002 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPST, Red/Green LED, 24V

Switch Operation:

Momentary

Illuminated:

Yes

Series:

MPI002

Panel Cut Out Diameter:

19.2mm

Mounting Type:

Panel Mount

Push Button Colour:

Silver

Contact Configuration:

SPST

Voltage Rating:

24V dc

Push Button Style:

Round

LED Colour:

Red/Green

IP Rating:

IP66

Push Button Material:

Stainless Steel

Contact Current Rating:

50 mA @ 24 V dc

Contact Material:

Copper Alloy

Manufacturer Part No.:

MPI002/28/D1

Body Material:

Stainless Steel

Operating Temperature Range:

-30 → +70°C

Minimum Operating Temperature:

-30°C

Terminal Type:

Tab

Maximum Operating Temperature:

+70°C

Maximum DC Voltage:

24V
