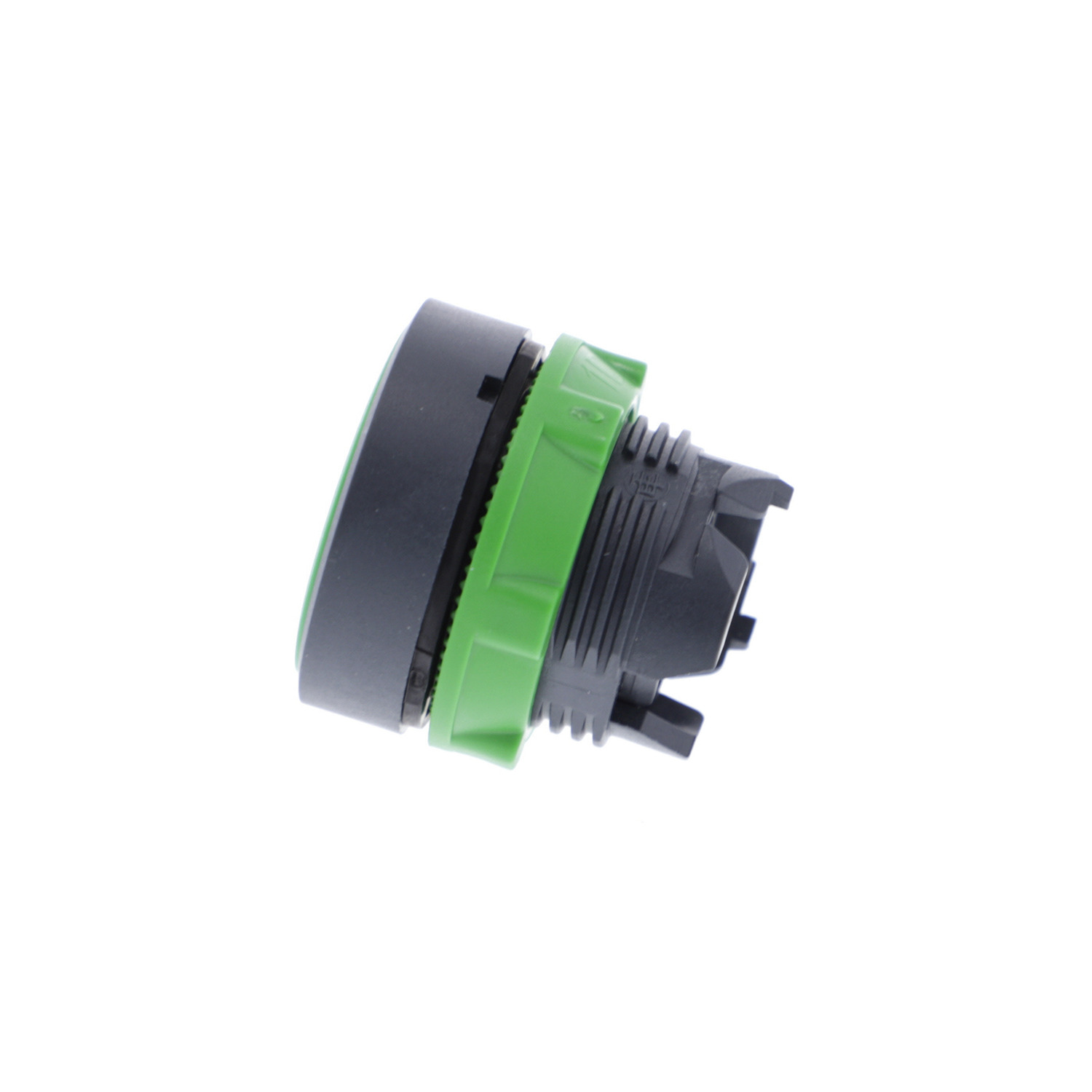

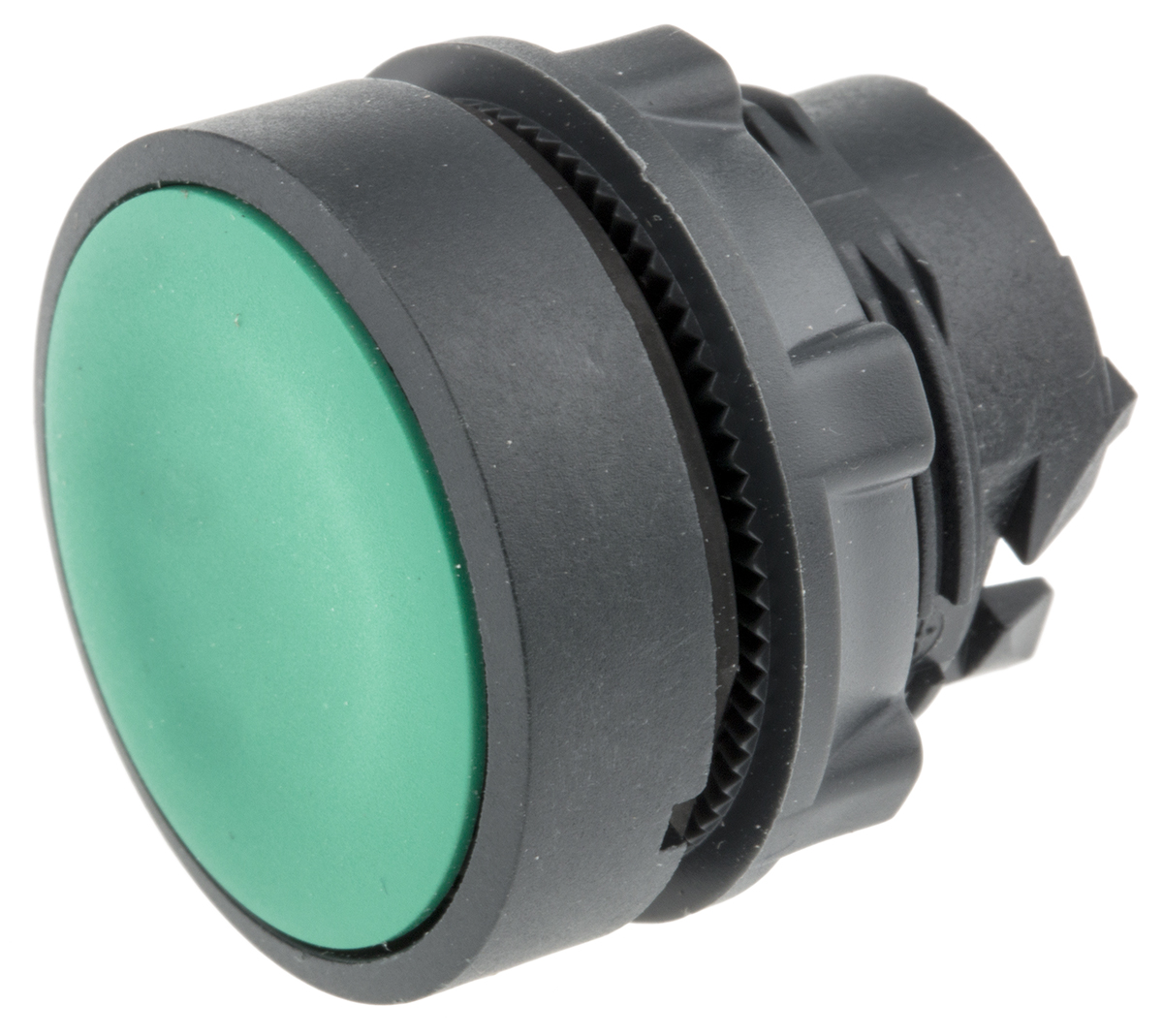

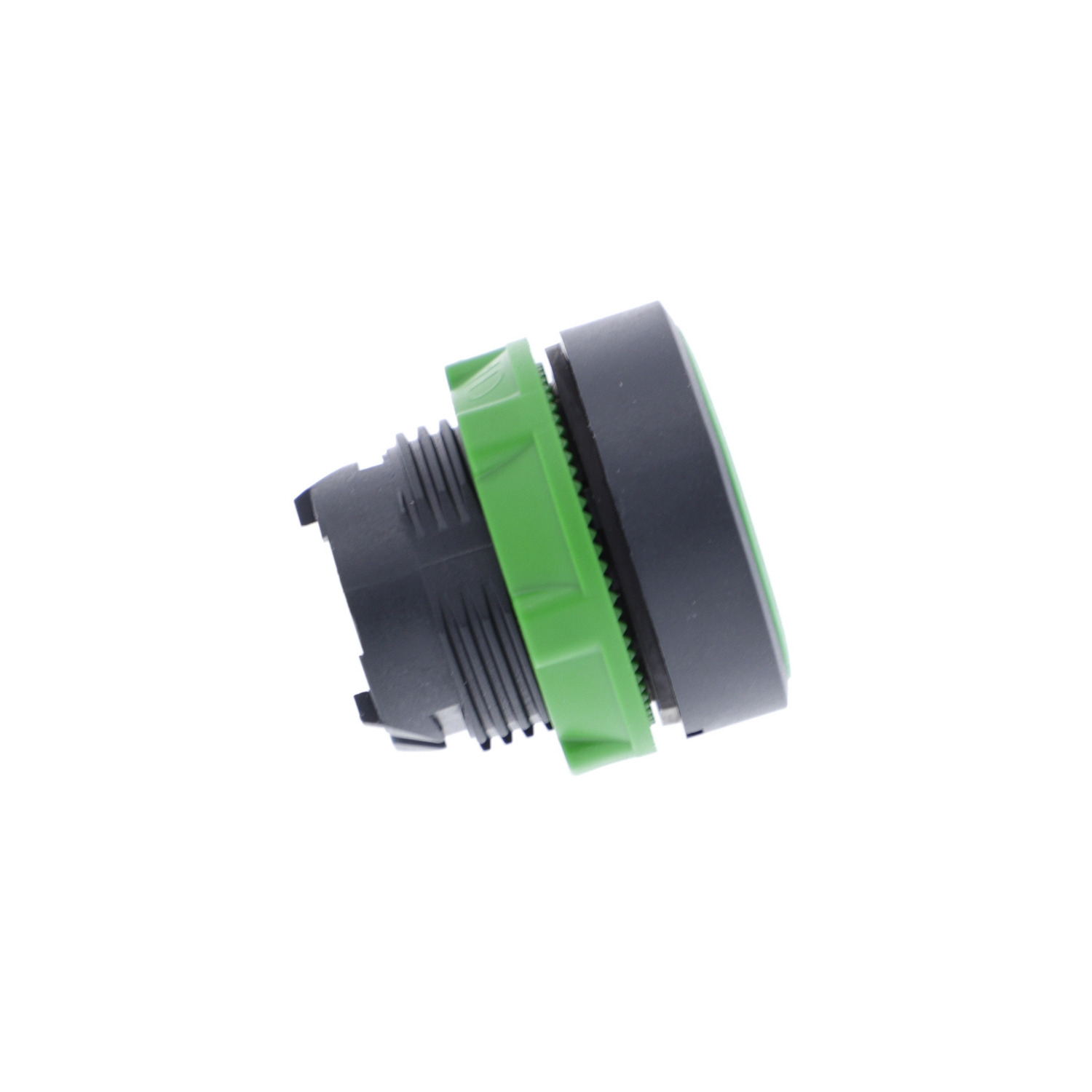

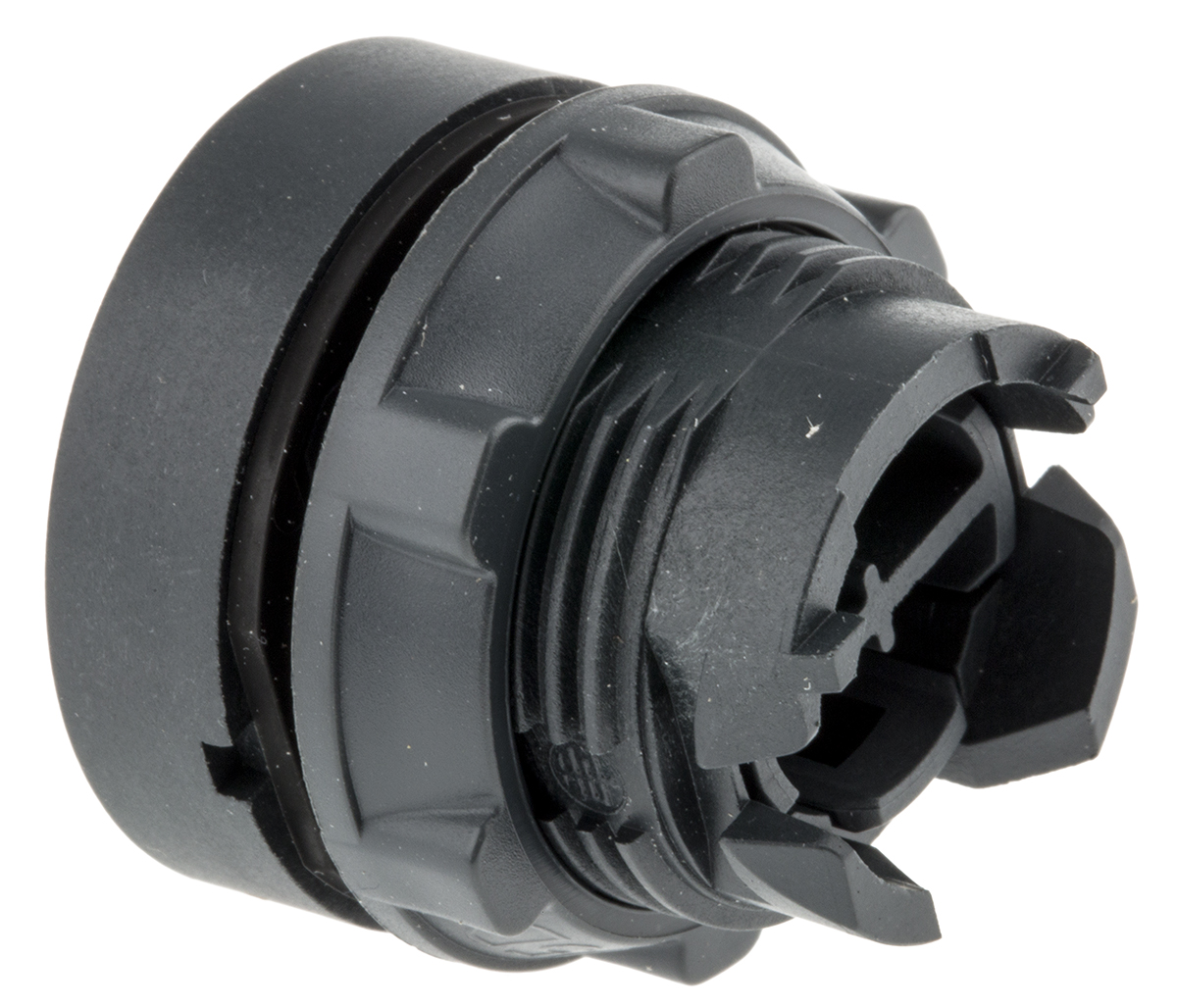

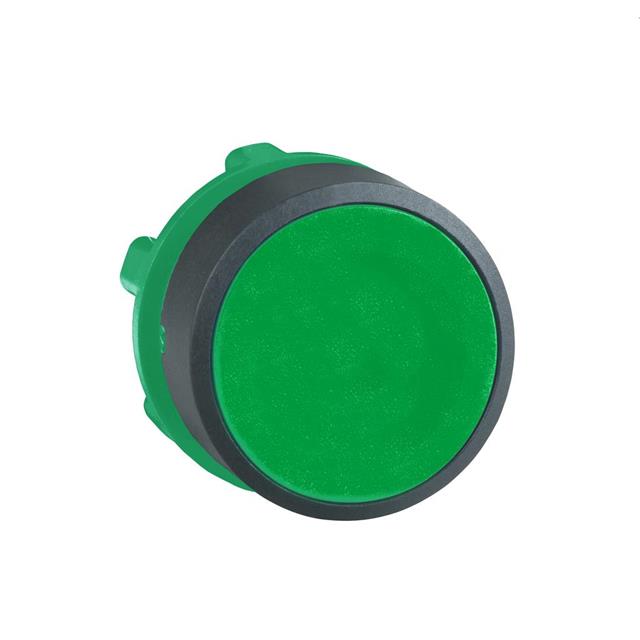

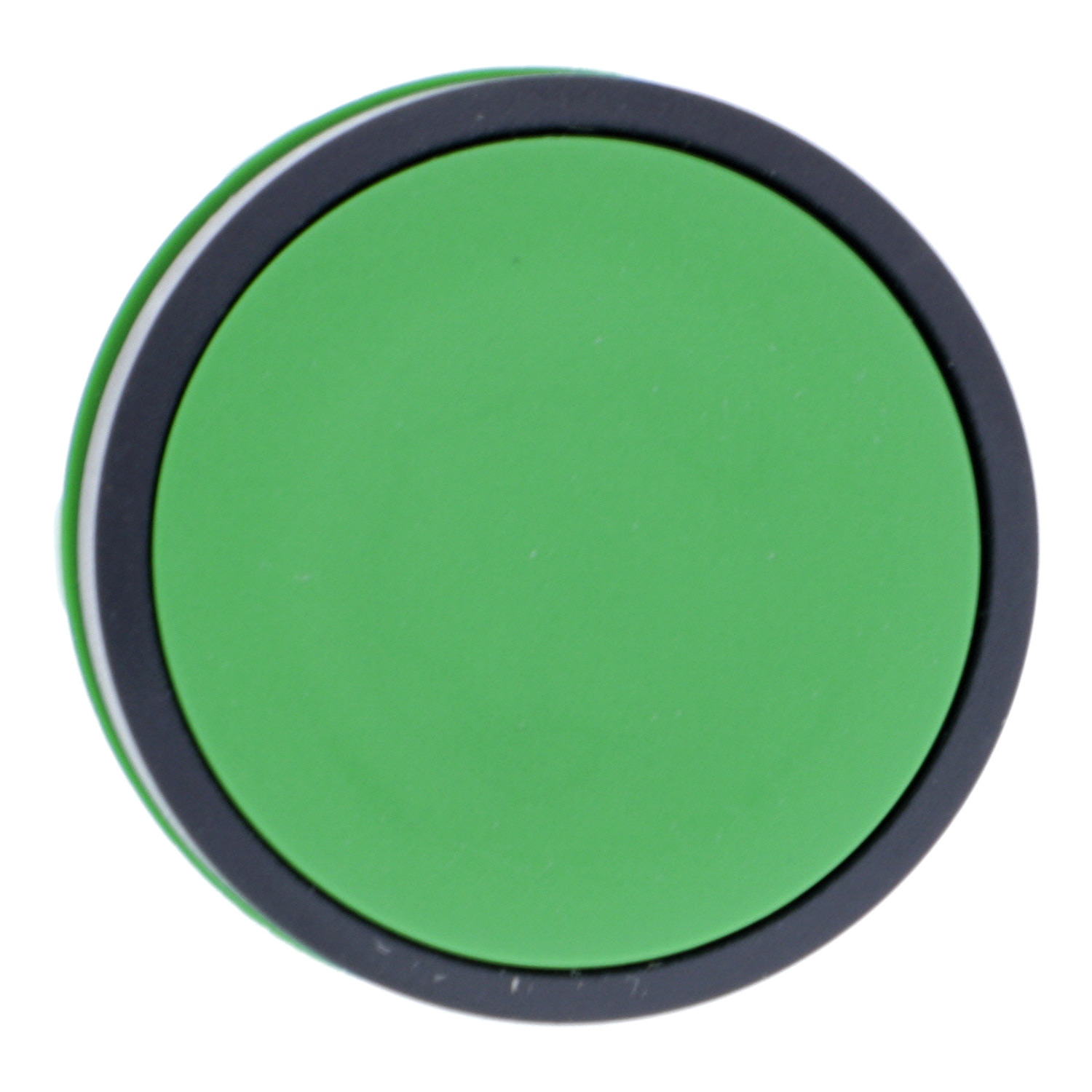

Series:
Harmony
IP Rating:
IP69K, IP67, IP66
Product Type:
Push Button Head
Cutout Diameter:
22mm
Push Button Shape:
Round
Push Button Style:
Round
Push Button Colour:
Green
Push Button Marking:
Unmarked
Standards/Approvals:
CSA C22.2 No 14, IEC 60536, UL 508, JIS C8201-5-1, JIS C8201-1, IP69K, IK06, IP66, IP67, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, IEC50102, IEC 60529, IP69
Better World Product:
Yes
Push Button Diameter:
28.5mm
Push Button Material:
Plastic
Push Button Actuation:
Spring Return
Body/Fixing Collar Included:
No
Hazardous Area Certification:
No
ECCN:
EAR99
Type:
Momentary
HTSUS:
8538.90.8180
Series:
Harmony XB5
Requires:
Contact Block(s)
IP Rating:
IP66, IP67, IP69K
Packaging:
Box
Illuminated:
No
RoHS Status:
ROHS3 Compliant
Illumination:
Non-Illuminated
REACH Status:
REACH Unaffected
Actuator Type:
Pushbutton, Round
Terminal Type:
Screw Clamp
Cutout Diameter:
22mm
standardLeadTime:
4 Weeks
Push Button Style:
Round
Push Button Colour:
Green
Better World Product:
Yes
Push Button Diameter:
28.5mm
Push Button Material:
Plastic
Push Button Actuation:
Spring Return
Panel Cutout Dimensions:
22mm (Round)
Better World Verification:
Green Premium
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-40°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
(Select First, Then Apply Filters) Compatible Series:
Schneider, Harmony XB5
