DJET miniature pushbuttons
These DJET series toggle and pushbutton switches are ideal for use across a number of industries and environments such as:-
• Outdoor applications
• Telecommunications
• Military Equipment
• Aviation Equipment
• Medical Equipment
• Power Supplies How are they fitted? The switches are mounted by pushing them through the mounting hole in the front panel and then secured with a fixing nut.
• Telecommunications
• Military Equipment
• Aviation Equipment
• Medical Equipment
• Power Supplies How are they fitted? The switches are mounted by pushing them through the mounting hole in the front panel and then secured with a fixing nut.

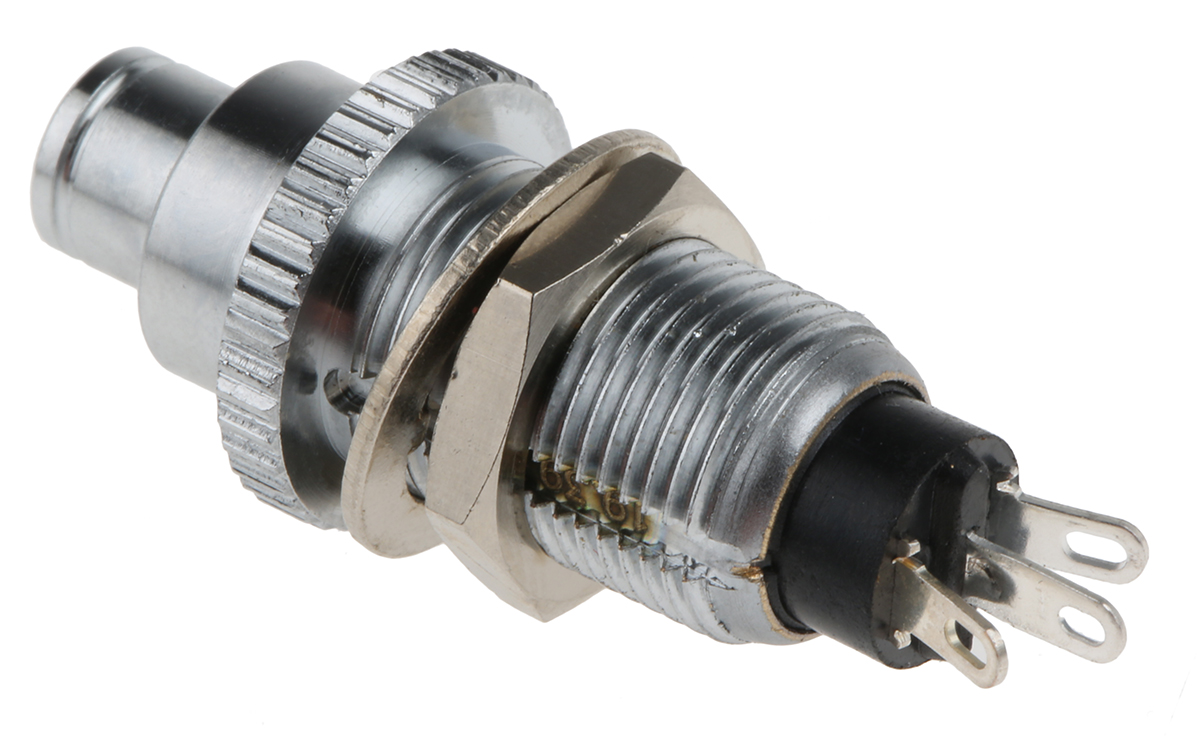

Push Button Switch, Momentary, Panel Mount, 10.2mm Cutout, SPDT, 12 - 220V ac
Manufacturer:
EOZ
Manufacturer Part No:
07.17502.21
Enrgtech Part No:
ET14064269
Warranty:
Manufacturer
£ 25.76
Checking for live stock
Switch Operation:
Momentary
Illuminated:
No
Panel Cut Out Diameter:
10.2mm
Mounting Type:
Panel Mount
Push Button Colour:
Silver
Contact Configuration:
SPDT
Voltage Rating:
12 - 220 V ac, 12 - 220V ac
Push Button Style:
Round
Contact Current Rating:
4.5 A @ 12 V dc
Contact Material:
Silver
Manufacturer Part No.:
07.17502.21
Terminal Type:
Solder
