DPS8 Miniature Rear Mounting
Solder terminals
Gold-plated break-before-make contact.
Two up/down buttons
Decade, BCD+complement
H 24mm, W 8mm, D 35mm
Cheeks available separately
Cut out, 19 by (no. of switches x 8 + 9) mm
Gold-plated break-before-make contact.
Two up/down buttons
Decade, BCD+complement
H 24mm, W 8mm, D 35mm
Cheeks available separately
Cut out, 19 by (no. of switches x 8 + 9) mm

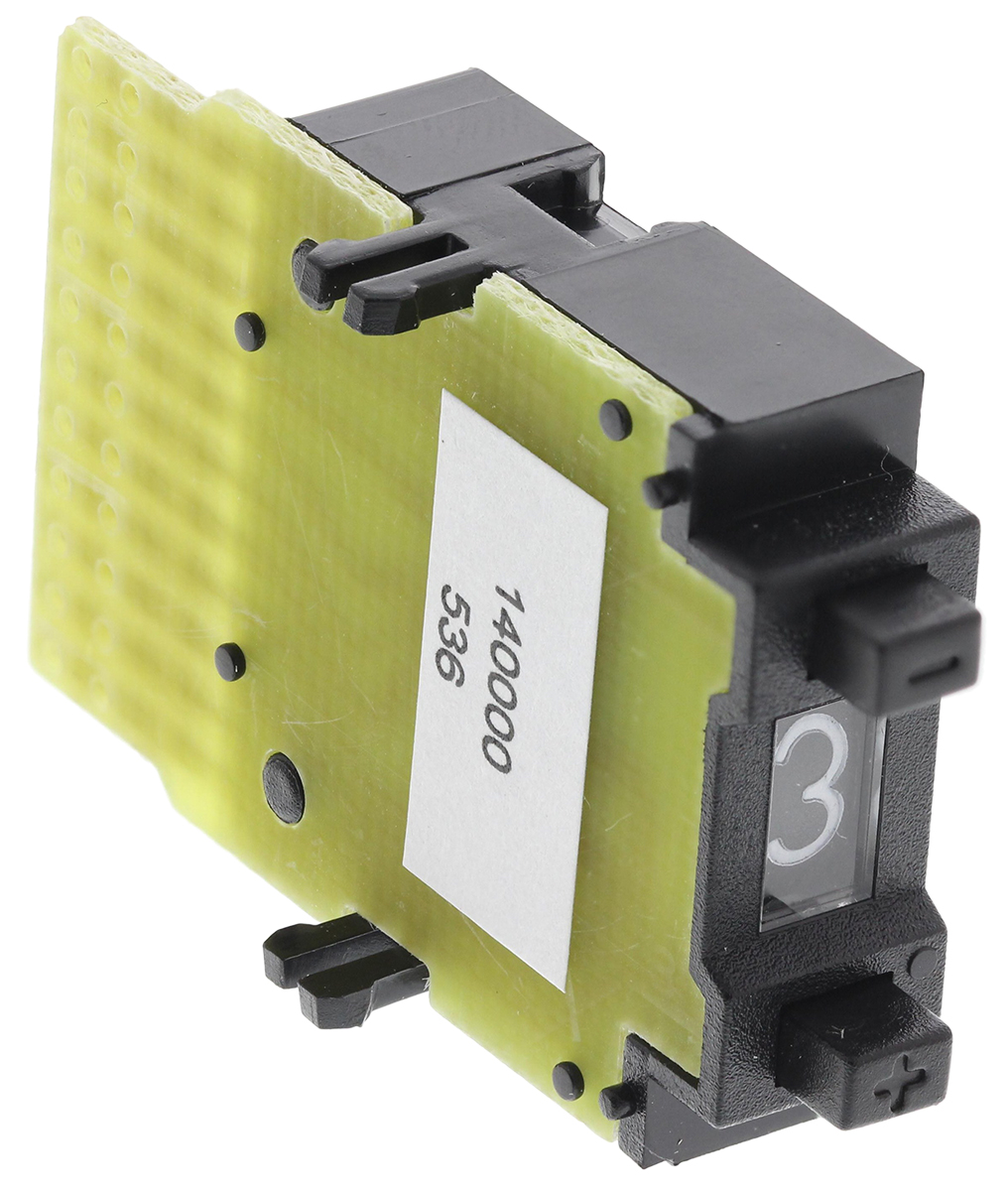

Pushwheel Switch BCD Pushwheel Through Hole Panel Mount 100mΩ 10-way DPS8-111-AK2
Manufacturer:
Hartmann
Manufacturer Part No:
DPS8-111-AK2
Enrgtech Part No:
ET16826385
Warranty:
Manufacturer
£ 11.39
Checking for live stock
Output Coding:
BCD
Switch Readout:
0 to 9
Actuator Type:
Pushwheel
Terminal Type:
Through Hole
Mounting Type:
Panel Mount
Contact Resistance:
100mΩ
Contact Material:
Gold Over Nickel Plated Copper Alloy
Number of Switch Positions:
10
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+80°C
Operating Temperature Range:
-20 → +80°C
Current Rating:
100 mA @ 40 V dc
