Models 201/204/301/305/3307/3607/3832
Strong steel construction, 35.3mm high, electro zinc plated and clear chromate
Precision high performance bearings
Mounting brackets and fittings supplied separately
Recommended fixings M4 cheese head screws (2.5mm high x 9.6mm diameter maximum) to DIN 85
Front disconnect and lockout features available for Models 204, 305,3307 and 3607
Precision high performance bearings
Mounting brackets and fittings supplied separately
Recommended fixings M4 cheese head screws (2.5mm high x 9.6mm diameter maximum) to DIN 85
Front disconnect and lockout features available for Models 204, 305,3307 and 3607

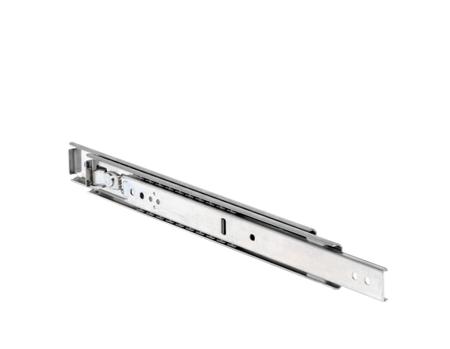

Telescopic Rail, 479mm Depth, 70kg Max Load
Manufacturer:
AccurideManufacturer Part No:
DZ0305-0018
Enrgtech Part No:
ET16802258
Warranty:
Manufacturer
£ 52.80
Checking for live stock
Type:
Telescopic Slide
Maximum Load:
70kg
Material:
Steel
Depth:
479mm
Width:
19.1mm
Height:
35.3mm
Slide Length Closed:
457mm
Lockout:
Yes
Series:
DZ0305
