Acti9 iC60H RCBOs
iC60H RCBO carries out complete protection of final circuits:
Protection against short-circuits and cable overloads
Protection of persons against electric shock by direct contact (10, 30 mA sensitivities)
Protection of persons against electric shock by indirect contact (100 mA sensitivity)
Protection of equipment against fires set by leakage currents (100 mA sensitivity)

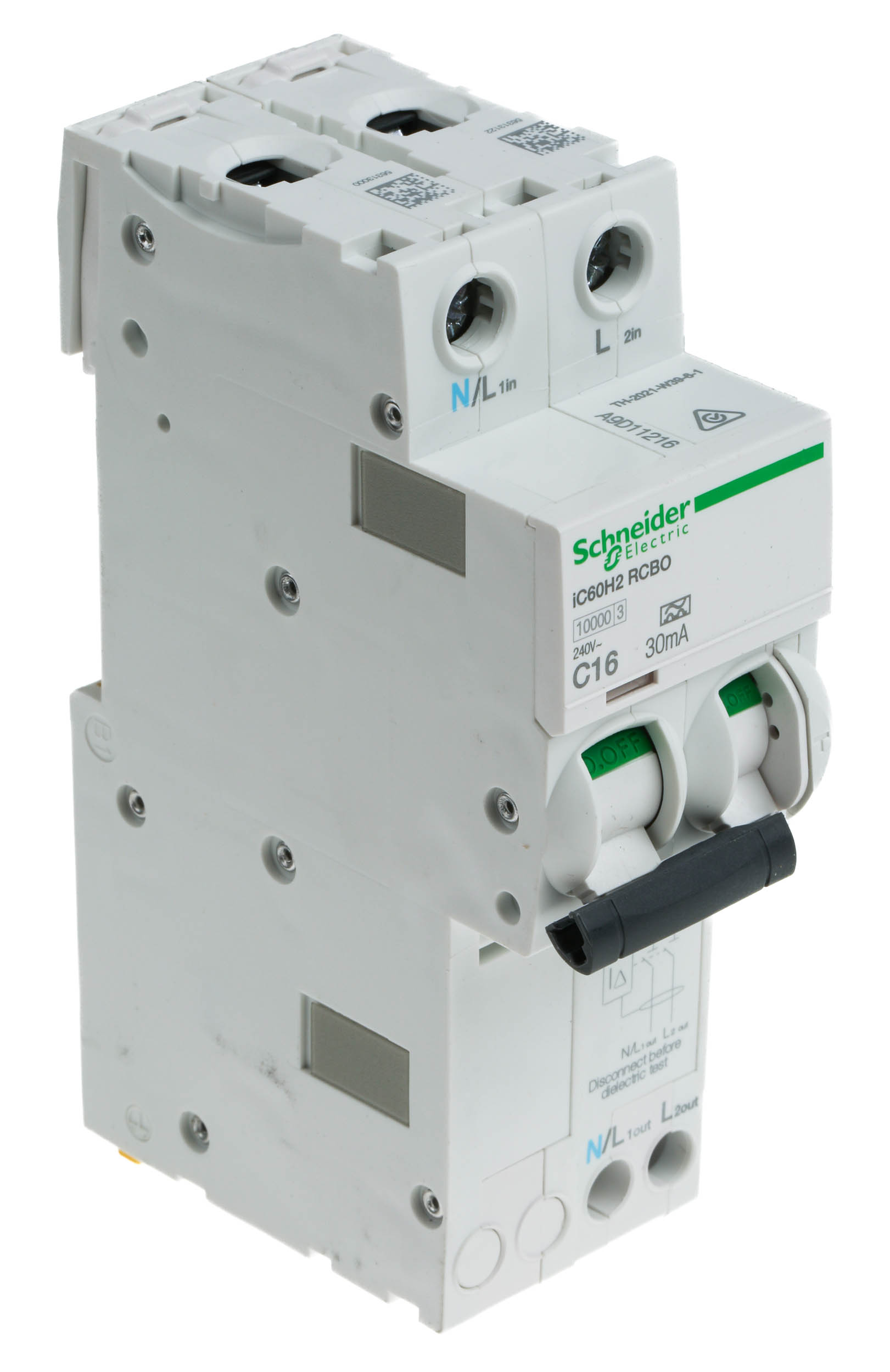

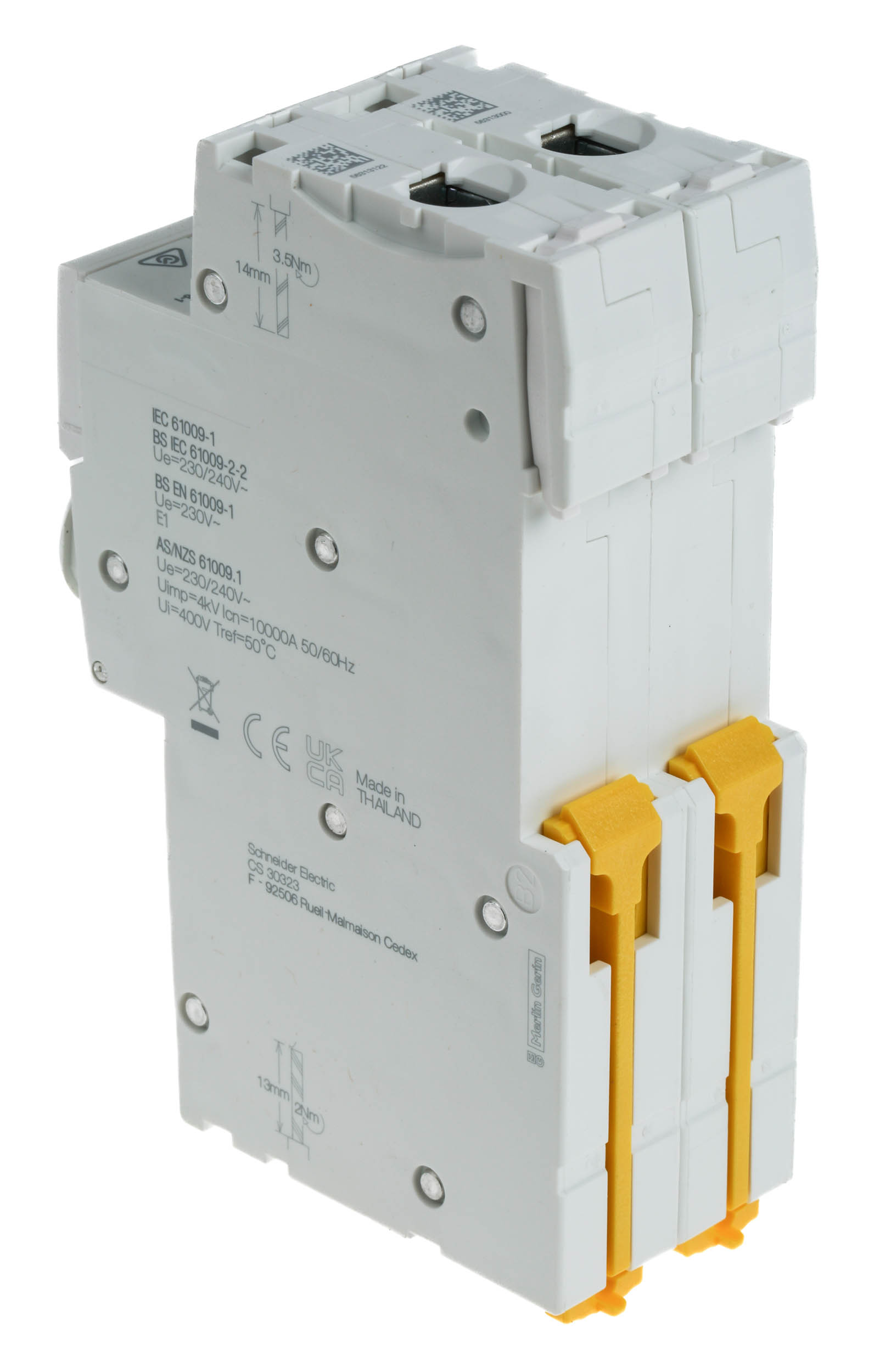

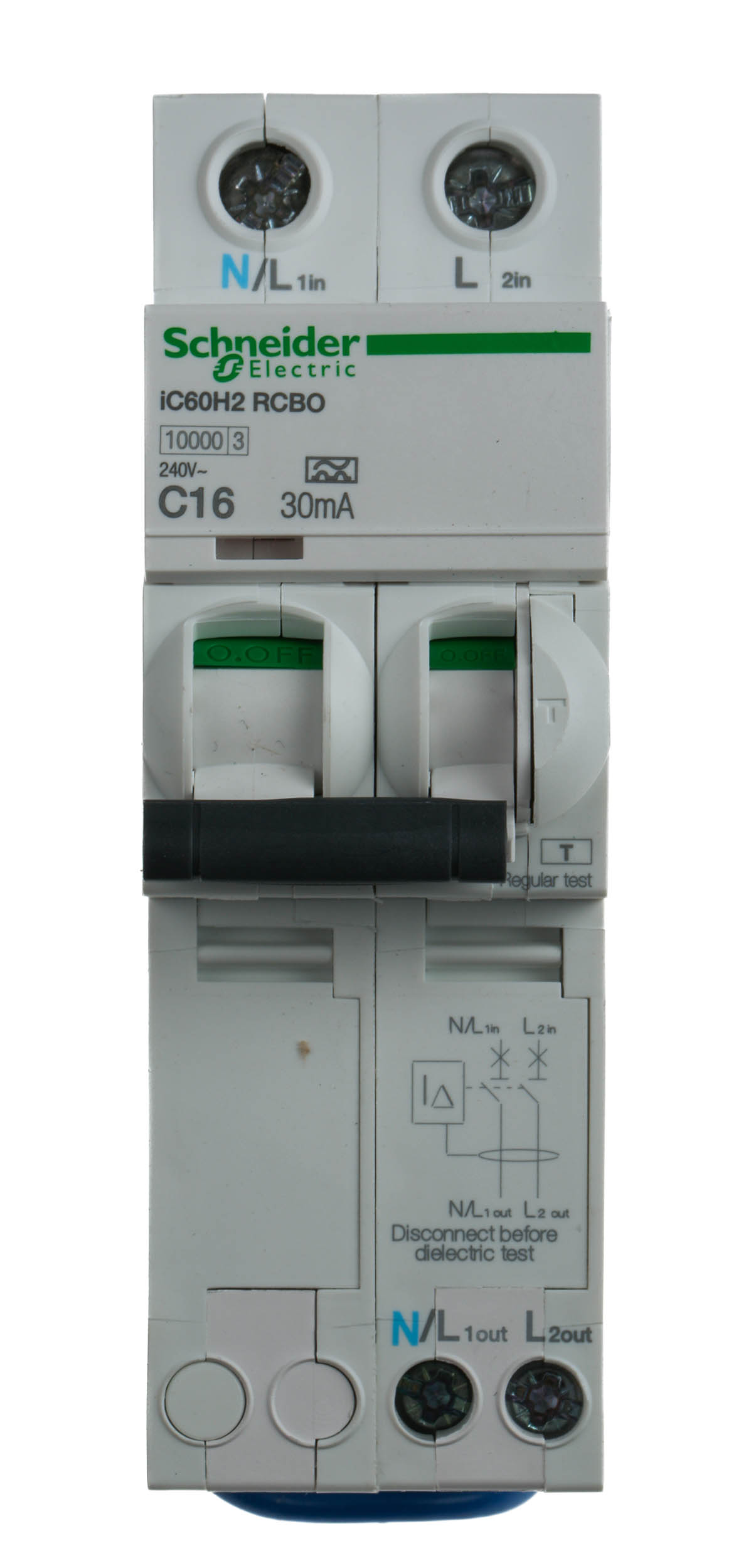

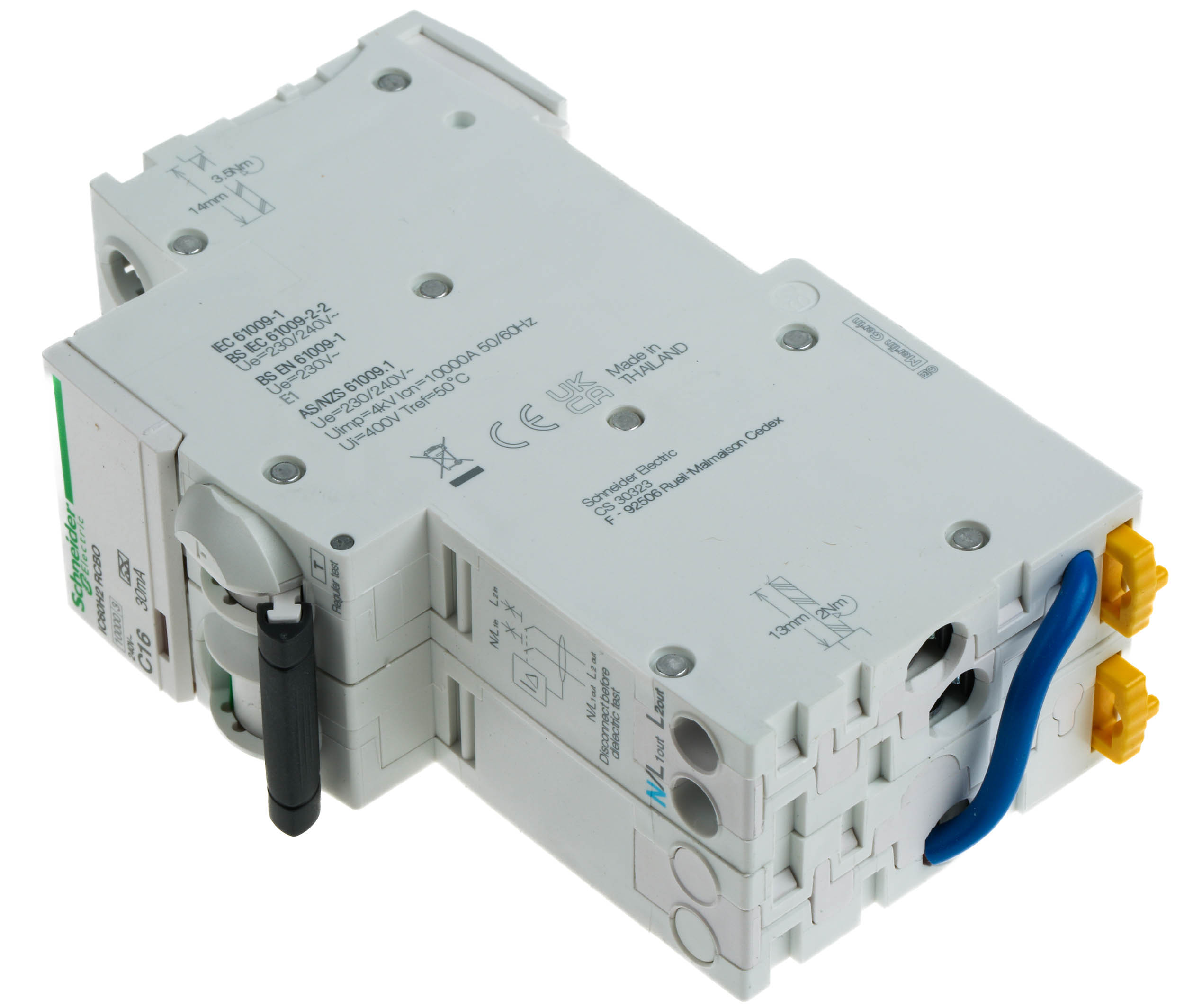

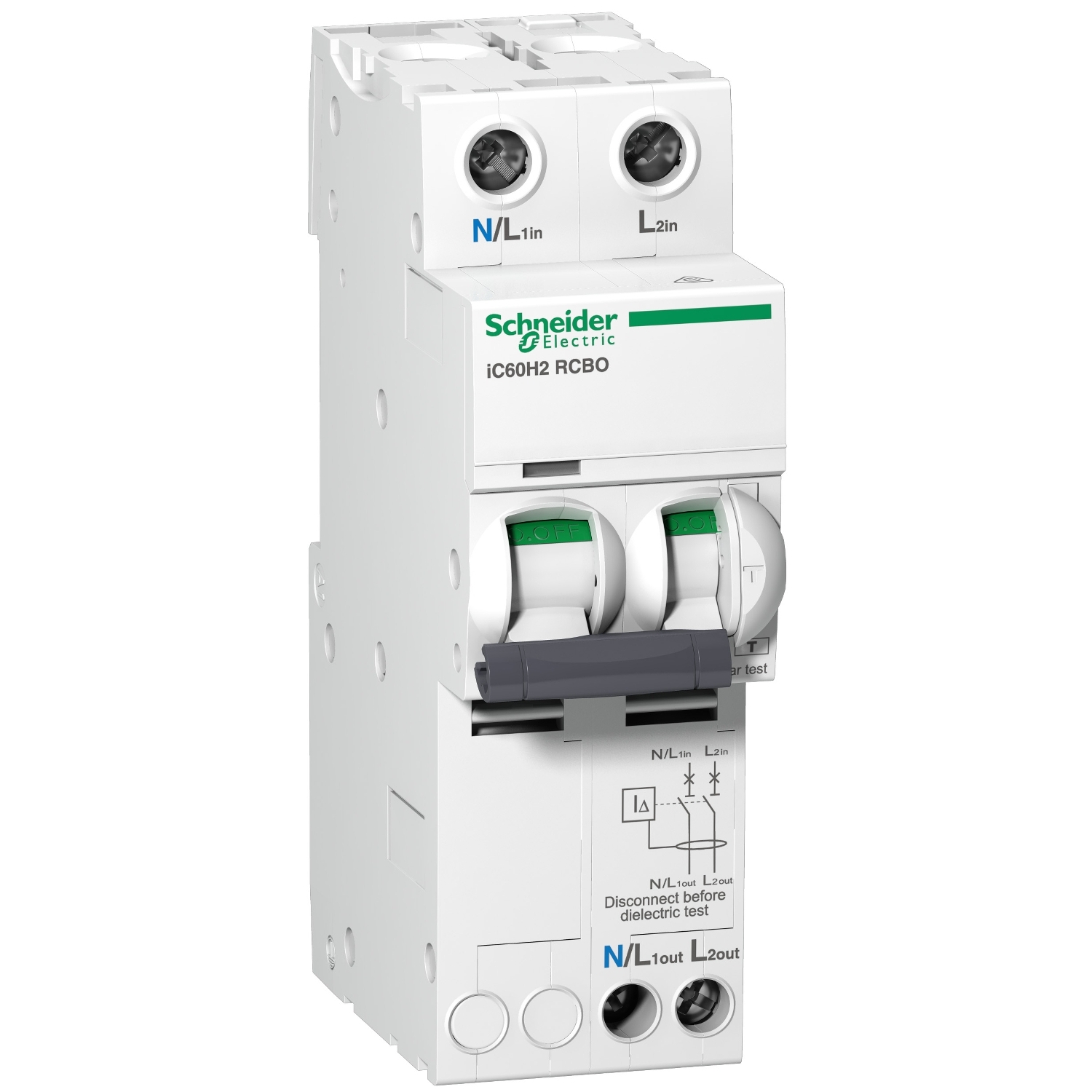

Schneider Electric A9D11216 2P 16 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA Acti 9 iC60H
Manufacturer:
Schneider ElectricManufacturer Part No:
A9D11216
Enrgtech Part No:
ET14150894
Warranty:
Manufacturer
£ 384.00
Checking for live stock
Current Rating:
16A
Application:
Distribution
Rated AC Voltage:
230/240V
Standards Met:
RoHS Compliant
Overall Length:
110mm
Overall Depth:
75.5mm
Breaking Capacity at Maximum Voltage Rating:
10 kA
Trip Sensitivity:
30mA
Tripping Characteristics:
Type C
Range:
Acti 9
Terminal Contact Type:
Screw
Earth Leakage Protection Type:
A
