Acti9 iC60H RCBOs iC60H RCBO carries out complete protection of final circuits: Protection against short-circuits and cable overloads Protection of persons against electric shock by direct contact (10, 30 mA sensitivities) Protection of persons against electric shock by indirect contact (100 mA sensitivity) Protection of equipment against fires set by leakage currents (100 mA sensitivity)

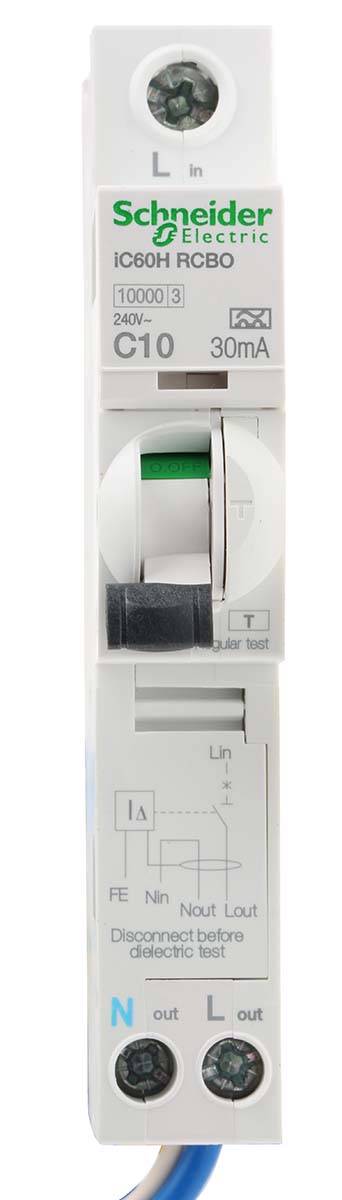

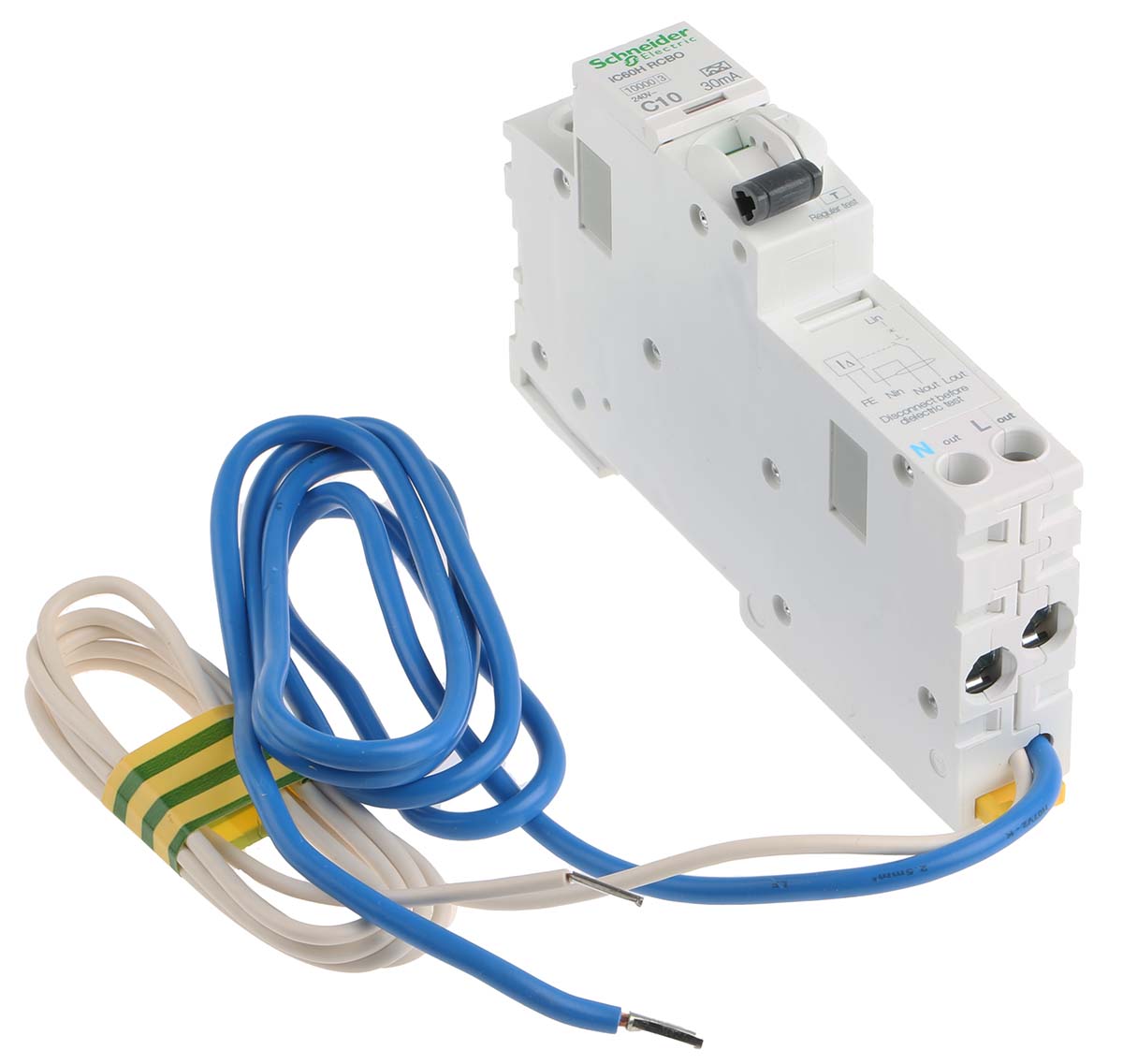

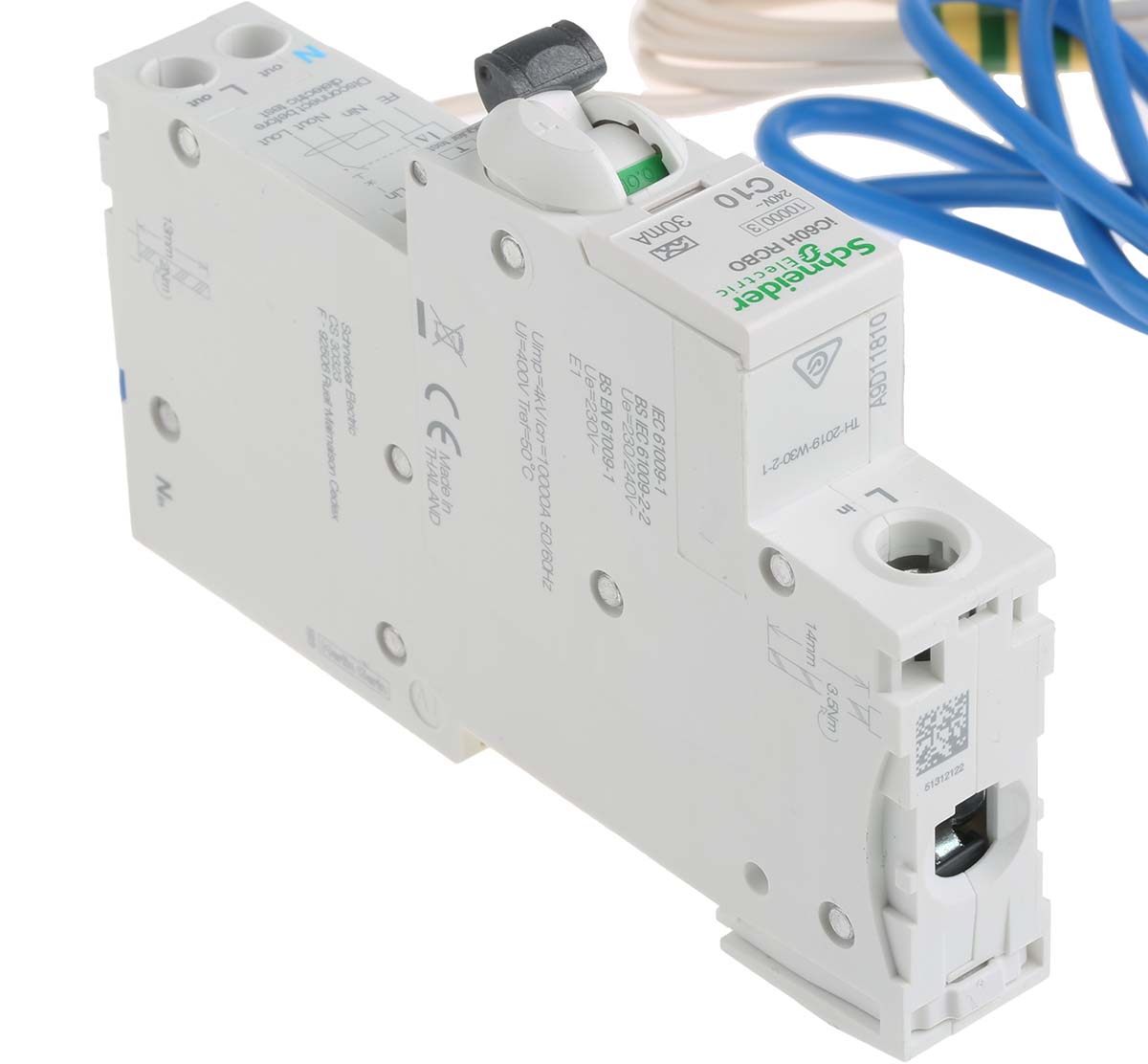

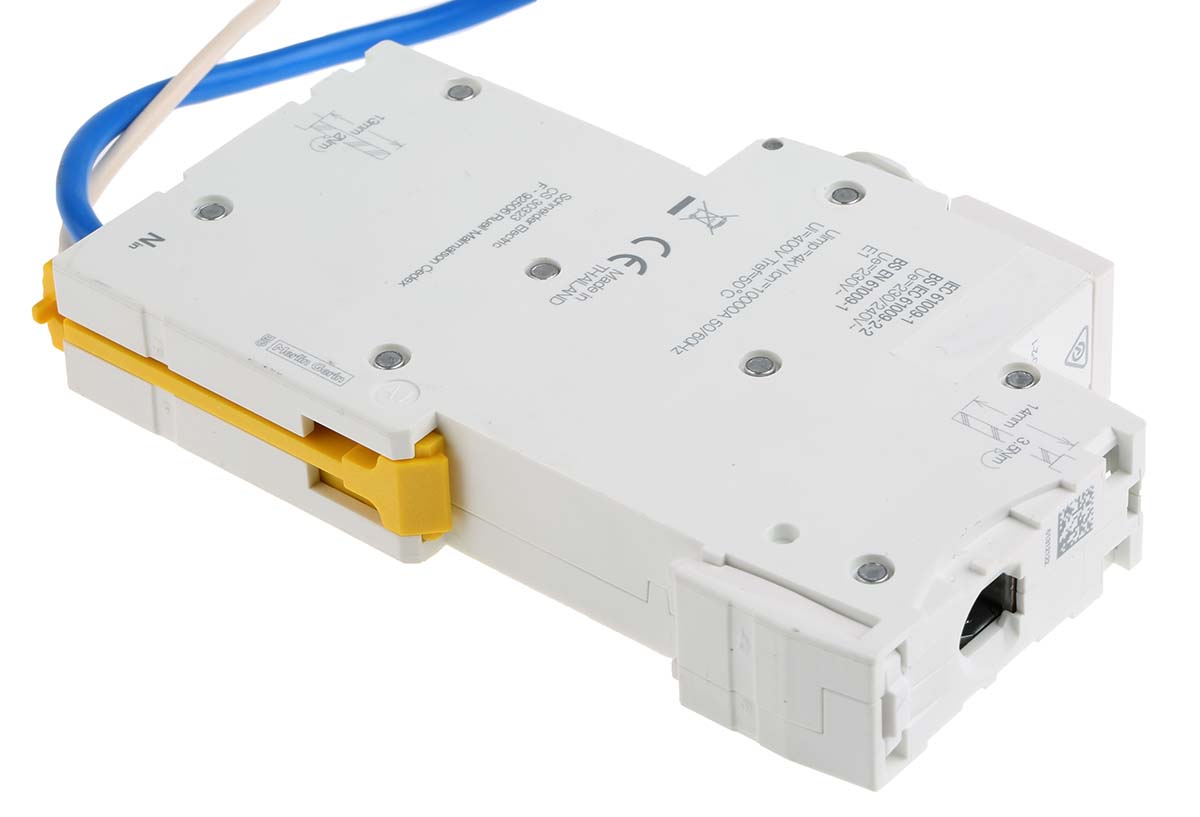

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 10A Current Rating, 1-Pole, 30 mA Trip

Manufacturer:
Manufacturer Part No:
A9D11810
Enrgtech Part No:
ET14150899
Warranty:
Manufacturer
49 - In Stock

Ships in 2-3 business days

Each

Quantity
Unit Price (ex VAT)
1
£ 138.08
Order Today!
From: United Kingdom
Est Ship Date: 27 Aug, 2026
Est Fastest Delivery: 28 Aug, 2026
seller
Quantity
Unit Price (ex VAT)
1
£ 180.45
Order Today!
From: United Kingdom
Est Ship Date: 27 Aug, 2026
Est Fastest Delivery: 28 Aug, 2026
Depth:
77.5mm
Range:
Acti9
Width:
18mm
Height:
110mm
Series:
iC60H
Mount Type:
DIN Rail
Application:
Distribution
Product Type:
Residual Current Circuit Breaker with Overload Protection
Terminal Type:
Screw
Current Rating:
10A
Number of Poles:
1
Rated AC Voltage:
230V ac
Trip Sensitivity:
30mA
Breaking Capacity:
10kA
Tripping Mechanism:
Thermal Magnetic
Standards/Approvals:
IEC, RoHS
Better World Product:
Yes
Earth Leakage Protection Type:
Type A
Range:
Acti 9
Series:
iC60H
Application:
Distribution
Overall Depth:
77.5mm
Overall Width:
18mm
Standards Met:
IEC
Current Rating:
10A
Mounting Style:
DIN Rail Mount
Number of Poles:
1P+N
Rated AC Voltage:
230/240V
Trip Sensitivity:
30mA
Overall Dimensions:
110 x 18 x 77.5mm
Tripping Mechanism:
Thermal-Magnetic
Better World Product:
Yes
Circuit Breaker Type:
RCBO
Terminal Contact Type:
Screw Clamp
Better World Verification:
Green Premium
Earth Leakage Protection Type:
Type A
Breaking Capacity at Maximum Voltage Rating:
10 kA
