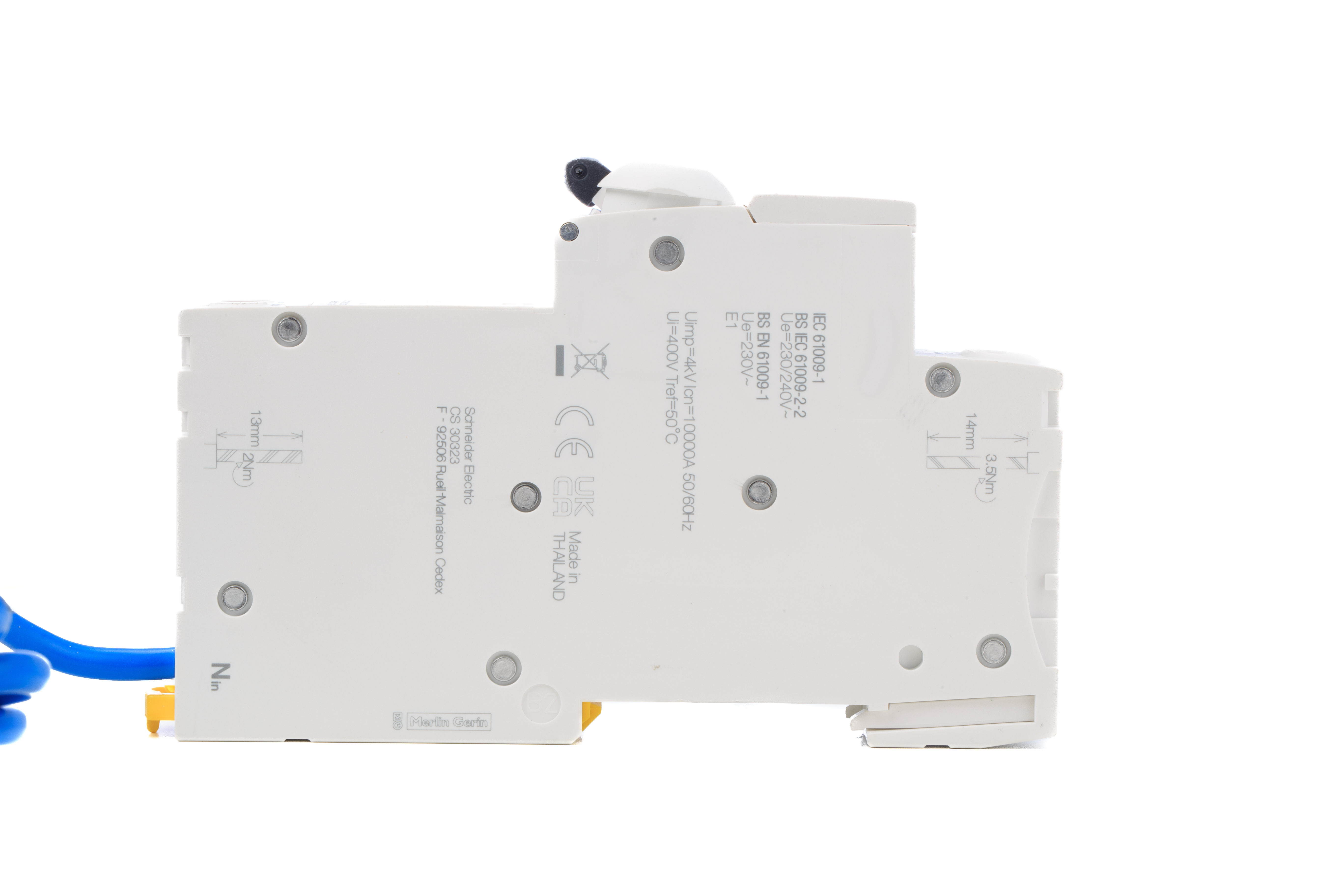

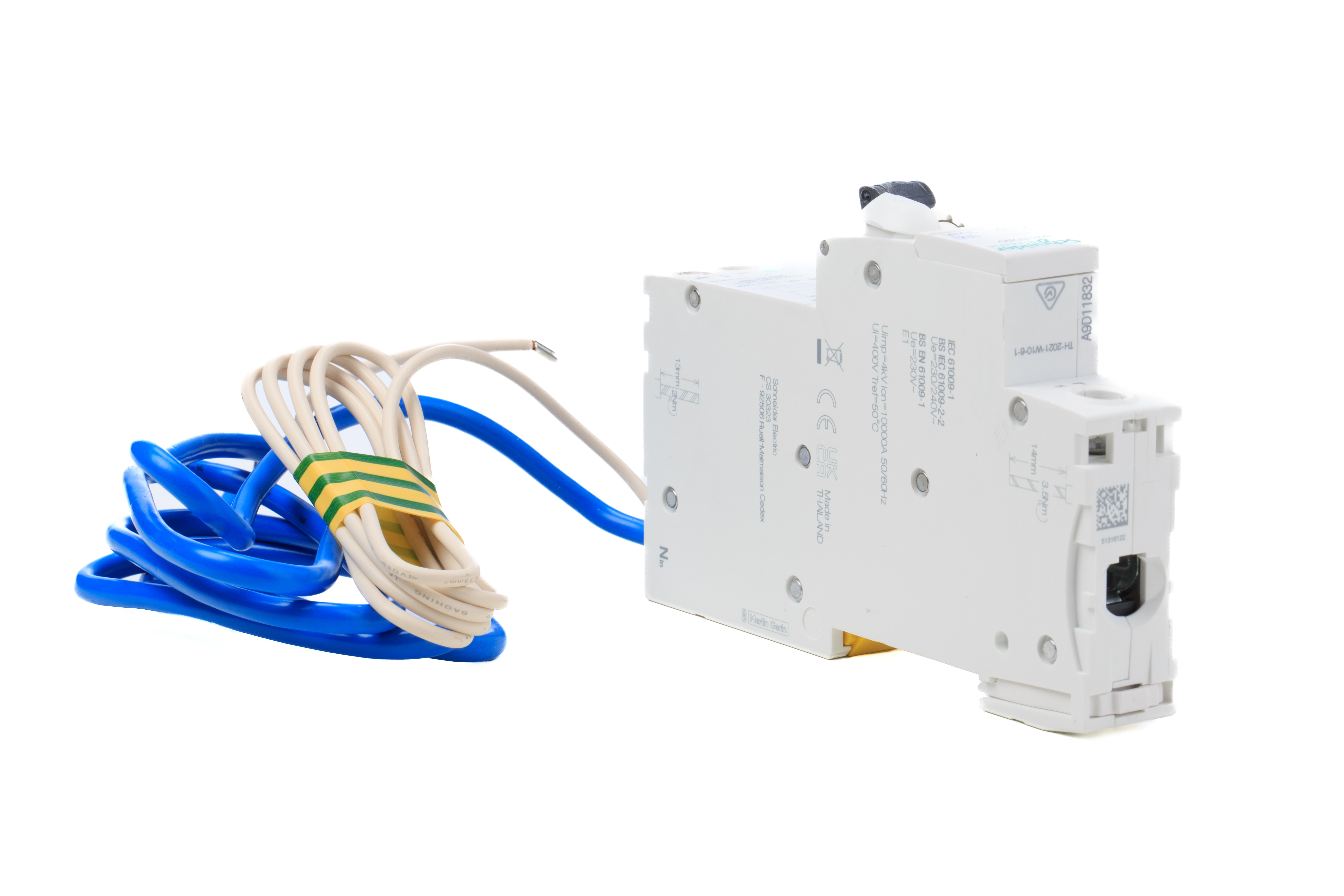

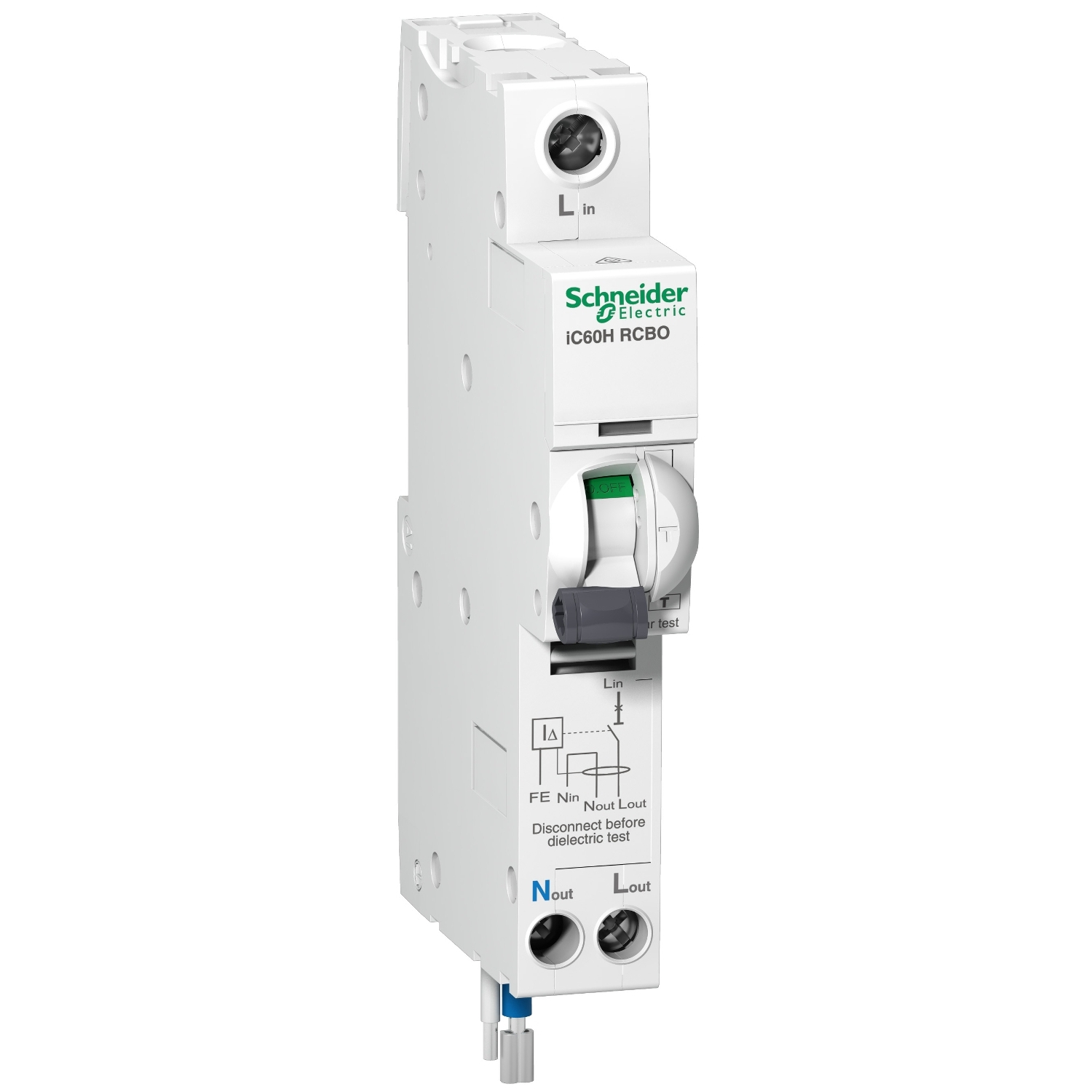

a9d11832 1P+N 32 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA Acti 9 iC60H

Acti9 iC60H RCBOs iC60H RCBO carries out complete protection of final circuits: Protection against short-circuits and cable overloads Protection of persons against electric shock by direct contact (10, 30 mA sensitivities) Protection of persons against electric shock by indirect contact (100 mA sensitivity) Protection of equipment against fires set by leakage currents (100 mA sensitivity)

For more information please check the datasheets.

Schneider Electric A9D11832 1P+N 32 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA Acti 9 iC60H

Name: 1P+N 32 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA Acti 9 iC60H
Brand: Schneider Electric
SKU: ET14150903
Availability: InStock

Manufacturer:

Schneider Electric

Manufacturer Part No:

A9D11832

Enrgtech Part No:

ET14150903

Warranty:

Manufacturer

£ 163.80

Checking for live stock

Current Rating:

32A

Application:

Distribution

Rated AC Voltage:

400V

Standards Met:

IEC

Overall Length:

110mm

Overall Depth:

77.5mm

Breaking Capacity at Maximum Voltage Rating:

10 kA

Trip Sensitivity:

30mA

Tripping Characteristics:

Type C

Range:

Acti 9

Terminal Contact Type:

Screw

Special Features:

Earth Leakage Protection

Instruction Sheet(Technical Reference)

Datasheet A9D11832(Technical Reference)

Multi9 to Acti9 Reference Guide(Technical Reference)

Acti9 Ordering Guide(Technical Reference)

Product Environmental Profile(Technical Reference)
