DSE201 Series Type A RCBO's ABB DSE201 series are 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module. For the protection against short circuit currents, overload, earth fault currents, indirect contacts and additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire. ABB RCBO's & RCCB's RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

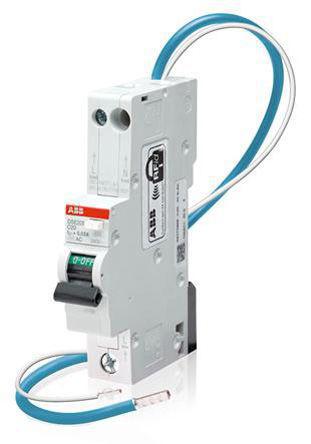

ABB 2CSR275151R1104 1P+N 10 kA 10 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA System M Pro DSE201 M

Manufacturer:
Manufacturer Part No:
2CSR275151R1104
Enrgtech Part No:
ET16746508
Warranty:
Manufacturer
£ 162.42
Checking for live stock
Earth Leakage Protection Type:
A
Current Rating:
10A
Circuit Breaker Type:
RCBO
Trip Sensitivity:
30mA
Series:
DSE201 M
Overall Width:
115mm
Overall Dimensions:
17.6 x 115 x 68.9mm
Breaking Capacity at Maximum Voltage Rating:
10 kA
Tripping Characteristics:
Type C
Mounting Style:
DIN Rail
Tripping Mechanism:
Thermal-Magnetic
Range:
System M Pro
Rated AC Voltage:
230 → 240V
Overall Length:
17.6mm
Overall Depth:
68.9mm
Number of Poles:
1+N
Reset Actuator Type:
Toggle Switch
pdf icon
Datasheet(Technical Reference)
