DSE201 Series Type A RCBO's
ABB DSE201 series are 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module. For the protection against short circuit currents, overload, earth fault currents, indirect contacts and additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.
ABB RCBO's & RCCB's
RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

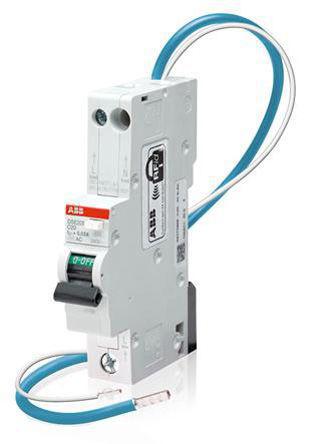

ABB 2CSR275151R1324 1P+N 10 kA 32 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA System M Pro DSE201 M
Manufacturer:
ABBManufacturer Part No:
2CSR275151R1324
Enrgtech Part No:
ET16746515
Warranty:
Manufacturer
£ 162.42
Checking for live stock
Earth Leakage Protection Type:
A
Current Rating:
32A
Circuit Breaker Type:
RCBO
Trip Sensitivity:
30mA
Series:
DSE201 M
Overall Width:
115mm
Overall Dimensions:
17.6 x 115 x 68.9mm
Breaking Capacity at Maximum Voltage Rating:
10 kA
Tripping Characteristics:
Type C
Mounting Style:
DIN Rail
Tripping Mechanism:
Thermal-Magnetic
Range:
System M Pro
