The Schneider Electric N40 Vigi series have RCBO having 10 A rated operating current and its used for the distribution application. This RCBO have thermal magnetic trip unit technology with C curve code. This RCBO have toggle control type with din rail mounting. IP degree of protection is IP20 and IP40 Ambient air temperature for operation is -5 to 60 °C

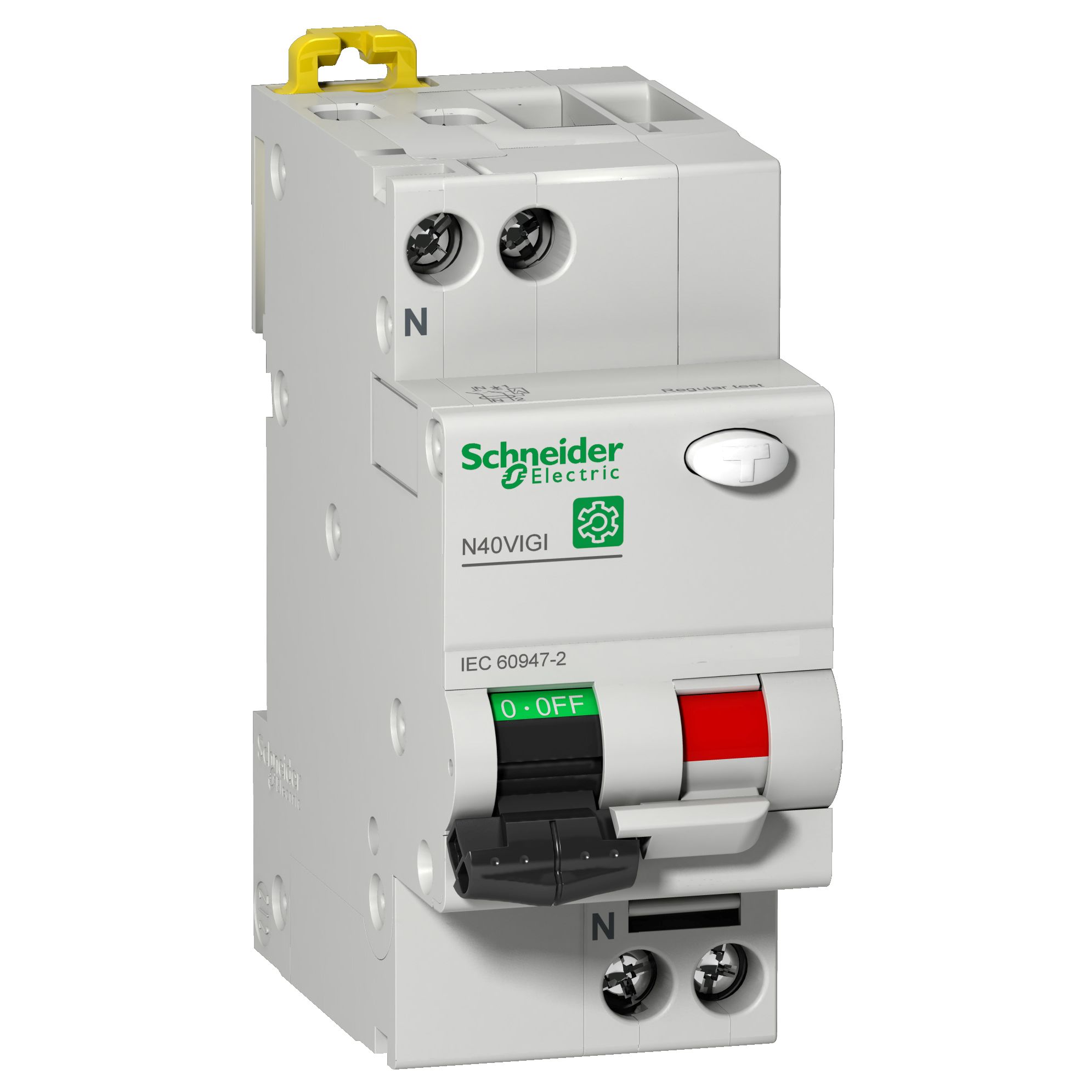

Schneider Electric RCBO - 1P, 10A Current Rating, N40 Vigi Series

Manufacturer:
Manufacturer Part No:
M9D11610
Enrgtech Part No:
ET21605381
Warranty:
Manufacturer
£ 166.62
Checking for live stock
Earth Leakage Protection Type:
AC
Better World Verification:
Green Premium
Better World Product:
Yes
Current Rating:
10A
Circuit Breaker Type:
RCBO
Trip Sensitivity:
30mA
Series:
N40 Vigi
Overall Width:
36mm
Overall Dimensions:
70 x 36 x 81mm
Tripping Characteristics:
Type C
Mounting Style:
DIN Rail Mount
Range:
Multi 9
Rated AC Voltage:
240V
Overall Depth:
70mm
Number of Poles:
1
Reset Actuator Type:
Toggle Switch
Breaker Type:
Thermal Magnetic
Mounting Type:
DIN Rail
Series:
Multi9
Voltage Rating - AC:
240 V
Packaging:
Box
Illumination Voltage (Nominal):
-
Approval Agency:
-
Actuator Type:
Toggle
Illumination:
None
standardLeadTime:
5 Weeks
Number of Poles:
1
Current Rating (Amps):
10A
pdf icon
Datasheet - M9D11610(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
