Easy EZ9 Series MCB's, RCBO's, RCCB's and Accessories The Easy9 product range is an affordable circuit protection solution that you can depend on. Schneider Electric work closely with worldwide electricians to make sure they bring you an excellent choice of user-friendly products designed to better support your business needs. High Quality (100% designed by Schneider Electric) User Friendly Design Full Compliance with International IEC Standards 3rd Party Certification Robust and Reliable Circuit Protection Range Consists of Insulated Enclosures, Metal Enclosures, Switch-Disconnectors, RCCB's, MCB's, RCBO's and Accessories Merlin Gerin - Easy 9 Series Miniature Circuit Breaker

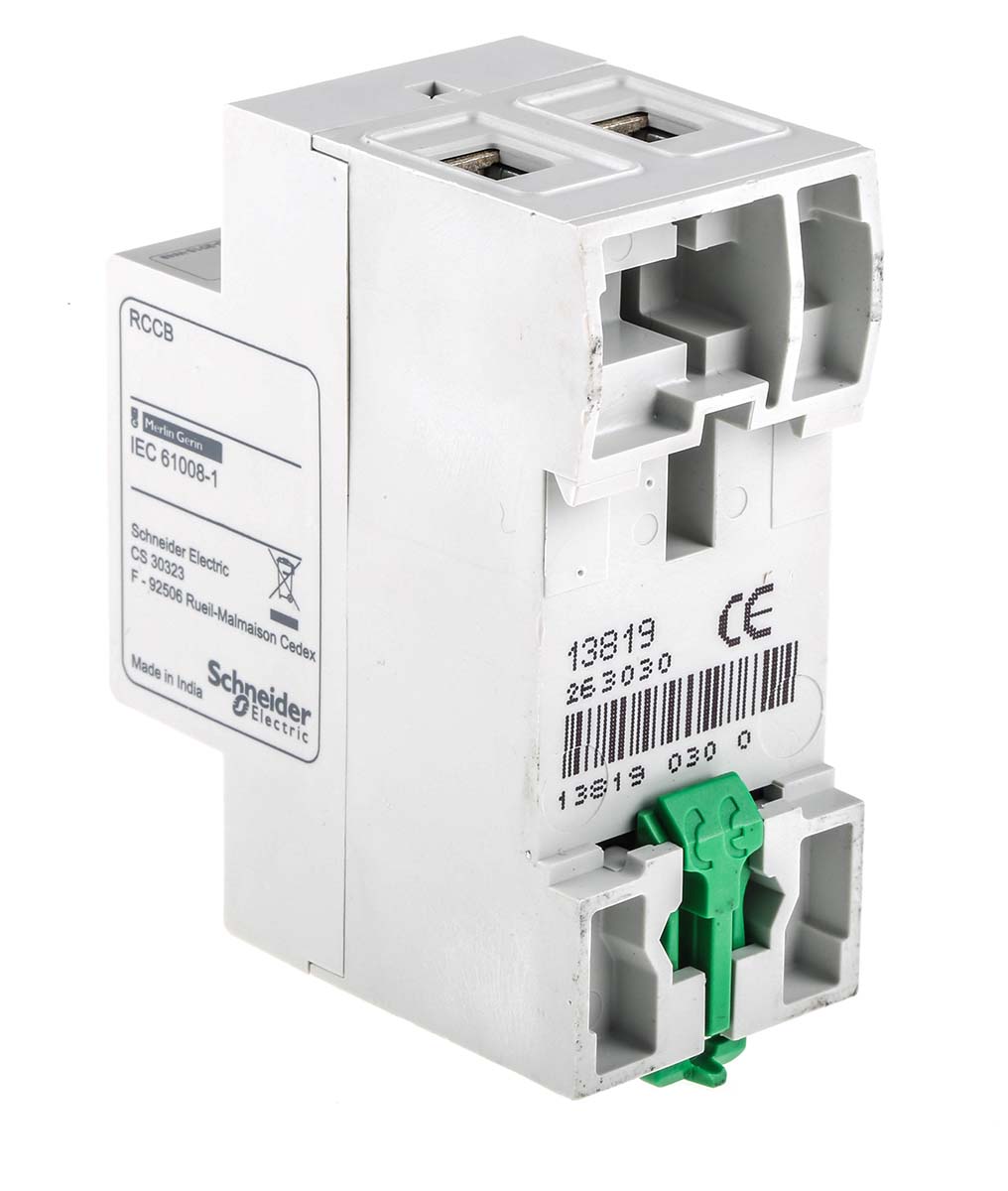

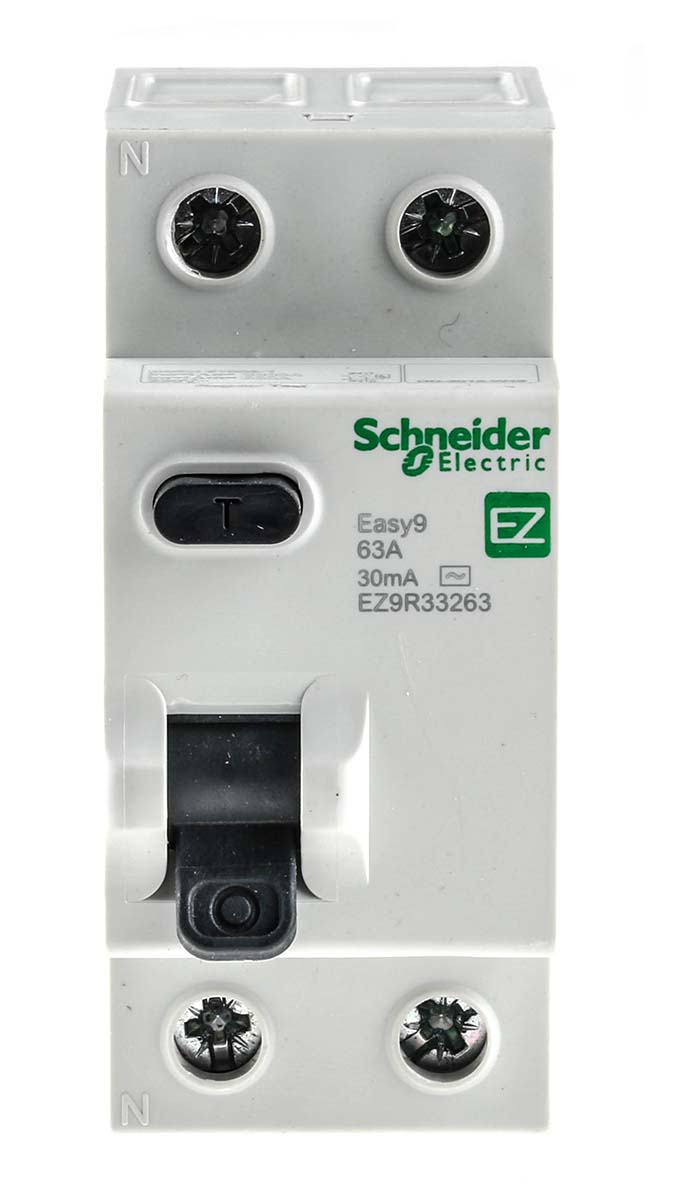

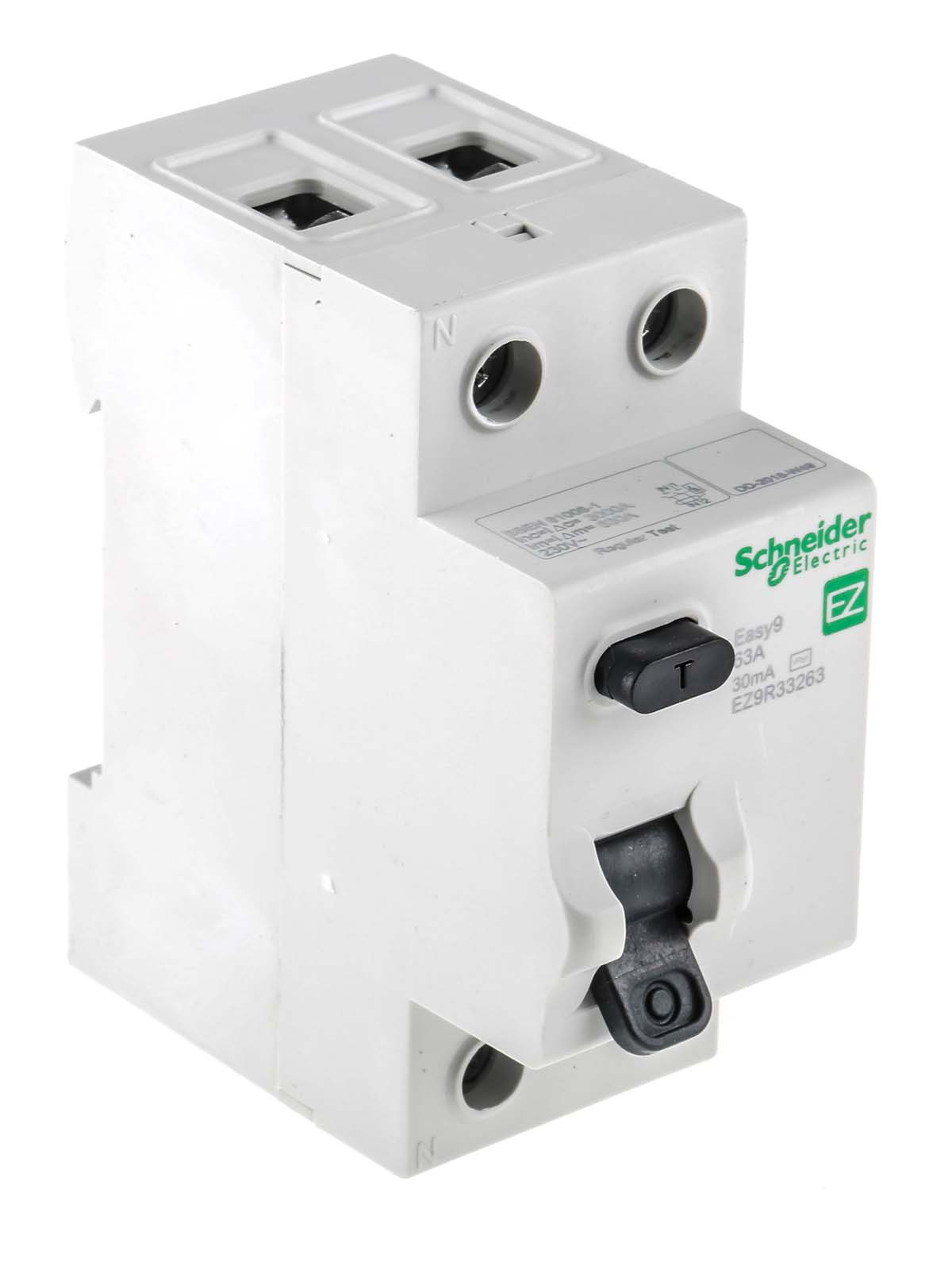

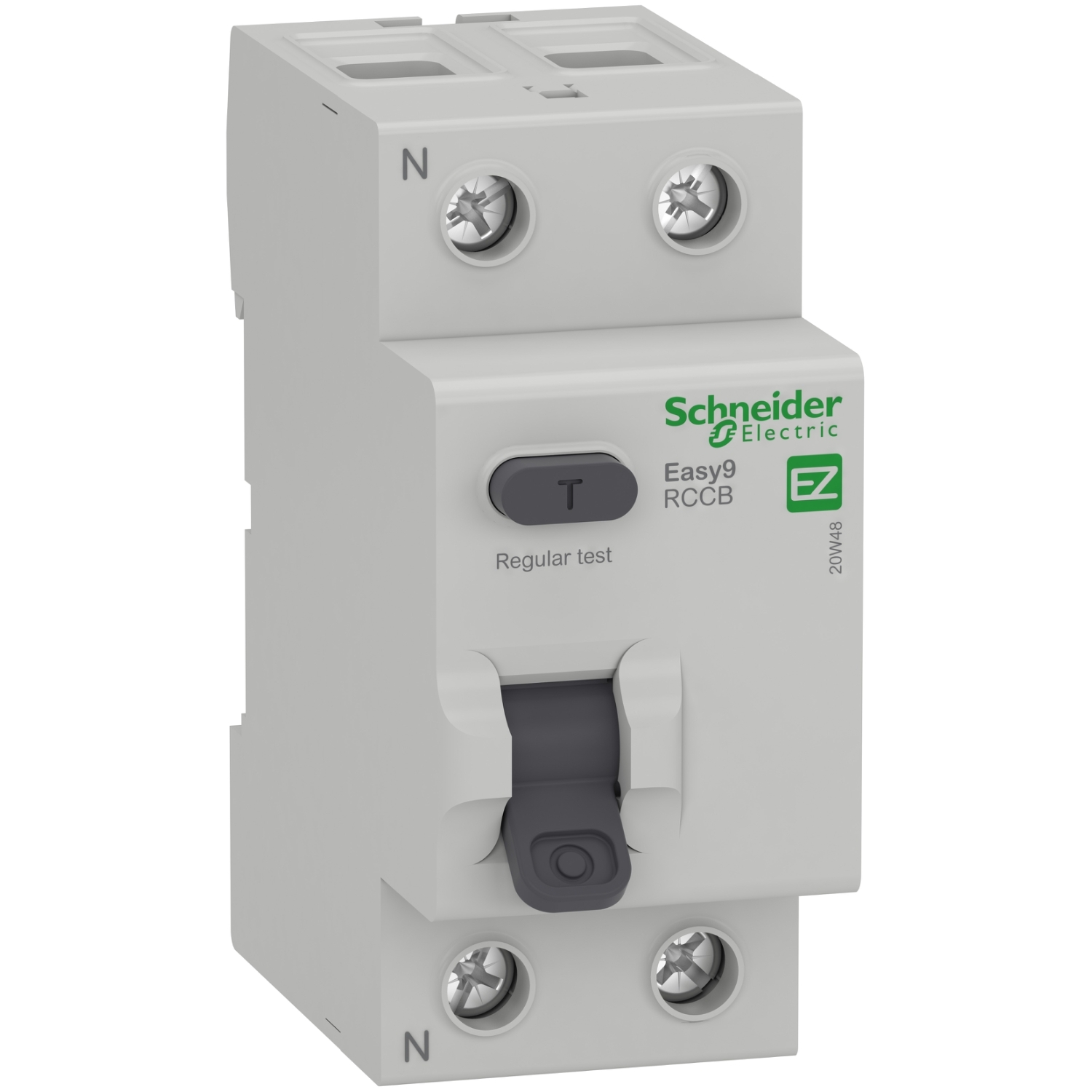

Schneider Electric 2 Pole Type AC Residual Current Circuit Breaker, 63A EZ9, 30mA

Manufacturer:
Manufacturer Part No:
EZ9R33263
Enrgtech Part No:
ET14151236
Warranty:
Manufacturer
£ 33.25
Checking for live stock
Earth Leakage Protection Type:
Type AC
Better World Verification:
Green Premium
Better World Product:
Yes
Current Rating:
63A
Voltage Rating:
230V ac
Trip Sensitivity:
30mA
Series:
EZ9
Overall Width:
36mm
Circuit Breaker Type:
RCCB
Overall Dimensions:
36 x 82 x 72mm
Tripping Characteristics:
Type AC
Mounting Style:
DIN Rail Mount
Range:
Easy9
Rated AC Voltage:
230V
Terminal Contact Type:
Tunnel Terminal
Overall Depth:
72mm
Number of Poles:
2
pdf icon
Selection Guide(Technical Reference)
pdf icon
SE8585-Easy9_brochure0.1(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)



Product Reviews
