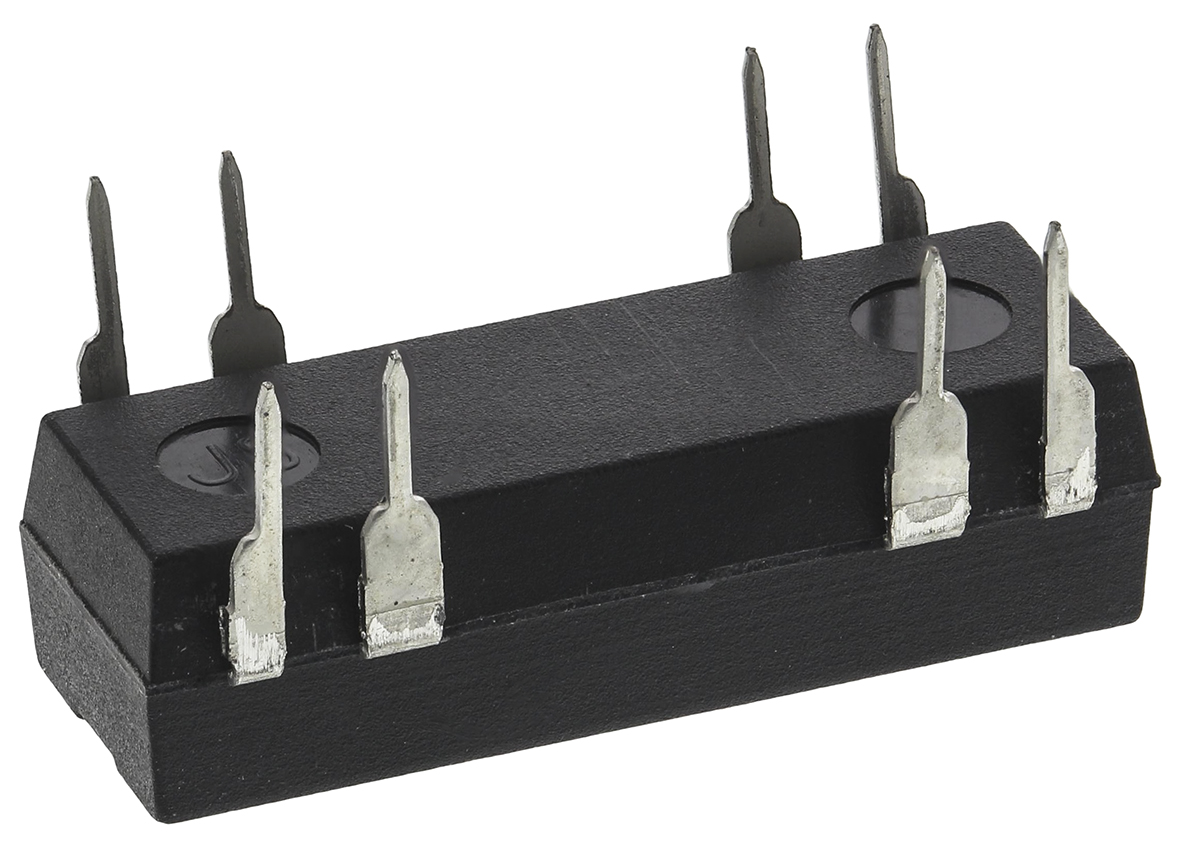

PCB Mount Reed Relay, 5V dc Coil, DPST, 100V dc Max, 200Ω

Contact Configuration:

DPST

Coil Voltage:

5V dc

Mounting Type:

PCB Mount

Maximum Switching Voltage DC:

100V dc

Coil Resistance:

200Ω

Length:

19.1mm

Height:

6.4mm

Depth:

6.6mm

Dimensions:

19.1 x 6.6 x 6.4mm

Isolation Coil To Contact:

1.4kV dc

Operating Time Including Bounce:

1ms

Terminal Type:

Through Hole

Contact Material:

Rhodium

Contact Resistance:

150 mΩ

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+70°C

Operating Temperature Range:

-40 → +70°C

Maximum Switching Power AC:

10VA

Life:

1000000000 (Mechanical)Cycles
