HV Vacuum Encapsulated D Series These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality. High power switching Through hole PCB & panel mount or flying lead versions 15kV high isolation versions available Tungsten contacts enable high voltage switching

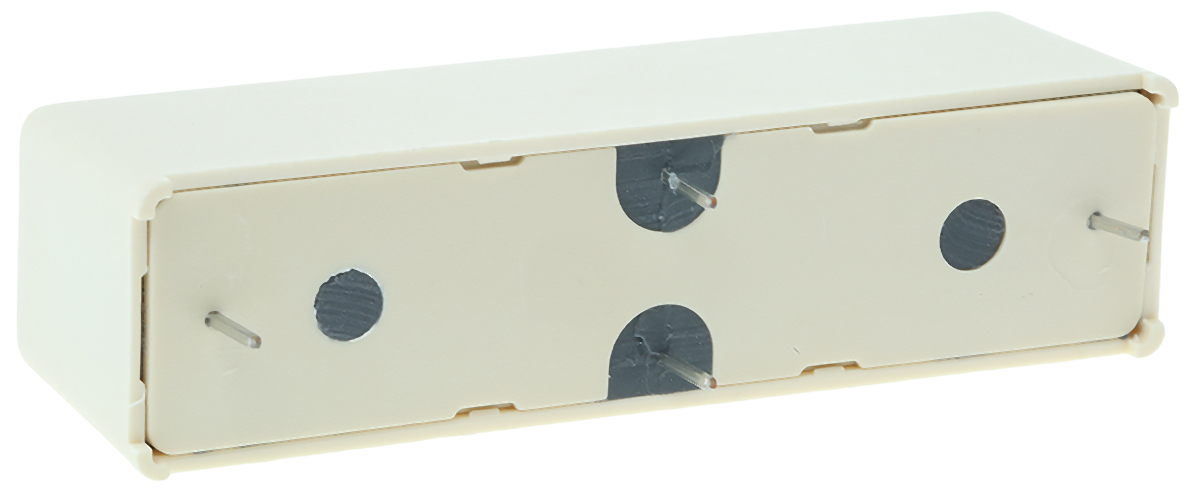

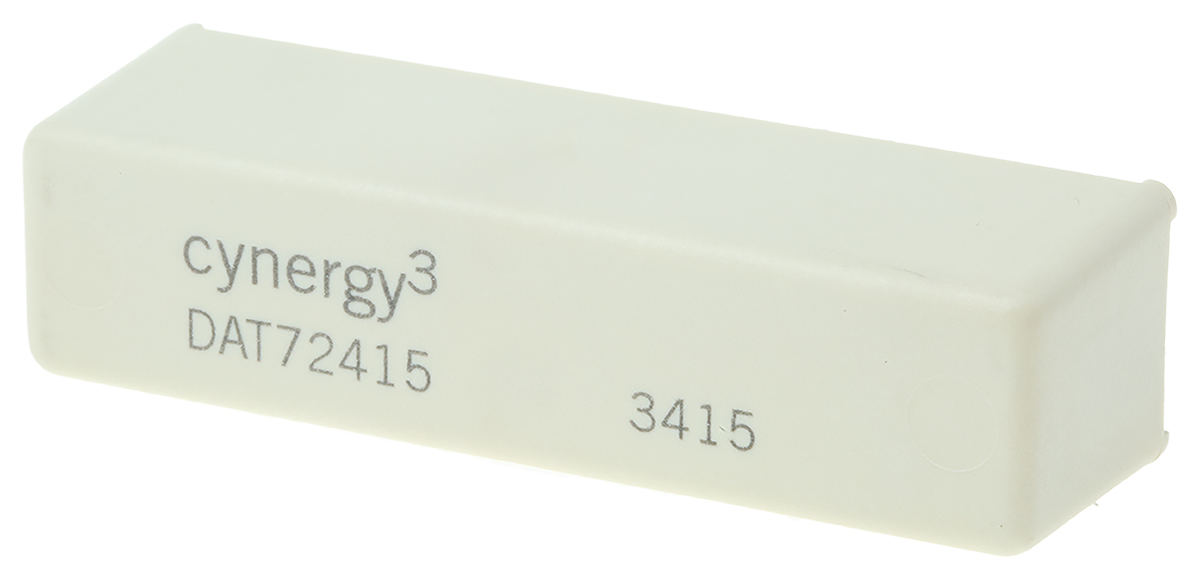

Cynergy3 DAT72415, SPNO Reed Relay, 24V dc

Manufacturer:
Manufacturer Part No:
DAT72415
Enrgtech Part No:
ET14026557
Warranty:
Manufacturer
£ 45.11
Checking for live stock
Contact Resistance:
250 mΩ
Dimensions:
60 x 15.8 x 18.5mm
Coil Voltage:
24V dc
Coil Resistance:
350Ω
Life:
100000000 (Electrical) Cycles
Maximum Switching Voltage DC:
10000V dc
Maximum Switching Power DC:
50 W
Isolation Coil To Contact:
15kV ac/dc
Maximum Operating Temperature:
+70°C
Terminal Type:
Through Hole
Maximum Switching Current AC:
2 A
Operating Temperature Range:
-20 → +70°C
Contact Configuration:
SPST
Depth:
15.8mm
Mounting Type:
PCB Mount
Operating Time Including Bounce:
3ms
Length:
60mm
Height:
18.5mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
10000V ac
Minimum Operating Temperature:
-20°C
Contact Material:
Tungsten
pdf icon
D Series HIGH VOLTAGE RELAYS 10KV & 15KV Datasheet(Technical Reference)
pdf icon
Brochure - Reed Relays(Technical Reference)
pdf icon
Application Note - Reed Relays(Technical Reference)
