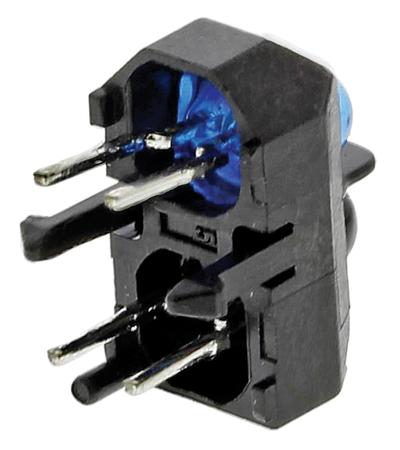

Reflective Sensor TCRT5000 The TCRT5000 and TCRT5000L are reflective sensors
which include an infrared emitter and phototransistor in a
leaded package which blocks visible light. The package
includes two mounting clips. TCRT5000L is the long lead
version. Features: • Package type: leaded • Detector type: phototransistor • Dimensions (L x W x H in mm): 10.2 x 5.8 x 7 • Peak operating distance: 2.5 mm • Typical output current under test: IC = 1 mA • Daylight blocking filter • Emitter wavelength: 950 nm • Lead (Pb)-free soldering released • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC Applications: • Position sensor for shaft encoder
• Detection of reflective material such as paper, IBM cards,
magnetic tapes etc.
• Limit switch for mechanical motions in VCR
• General purpose - wherever the space is limited
