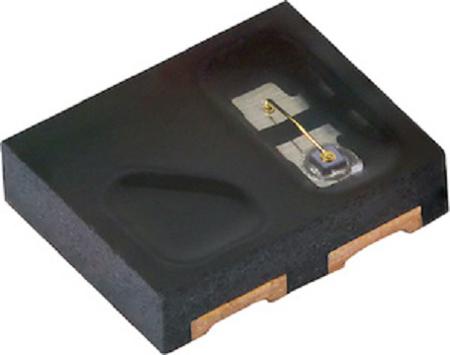

The Vishay reflective sensor has a compact construction where the emitting light source and the detector are arranged in the same plane. The detector consists of a silicon phototransistor. The sensor analog output signal (photo current) is triggered by detection of reflected infrared light from a close by object. The sensor has a built in daylight blocking filter, which greatly suppresses disturbing ambient light and therefore increases signal to noise ratio. Package type is SMD
Emitter wavelength is 940 nm
Moisture sensitivity level (MSL) is 3
AEC-Q101 qualified
