Radiall 50 Ohm SMA RF Coaxial Attenuators
50 ohm SMA plug to socket RF coaxial attenuators with a PTFE dielectric and gold plated centre contact.
50 ohm SMA attenuators with part number R4118xx124 have a DC 3 GHz operating frequency range, 1 W average power @ 25°C and a nickel plated brass body.
50 ohm SMA attenuators with part number R4118xx121 have an DC 18 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
50 ohm SMA attenuators with part number R4118xx122 have a DC 26.5 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
50 ohm SMA attenuators with part number R4118xx124 have a DC 3 GHz operating frequency range, 1 W average power @ 25°C and a nickel plated brass body.
50 ohm SMA attenuators with part number R4118xx121 have an DC 18 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.
50 ohm SMA attenuators with part number R4118xx122 have a DC 26.5 GHz operating frequency range, 2 W average power @ 25°C and a passivated stainless steel body.

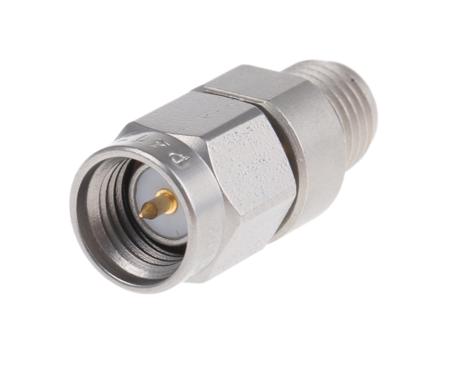

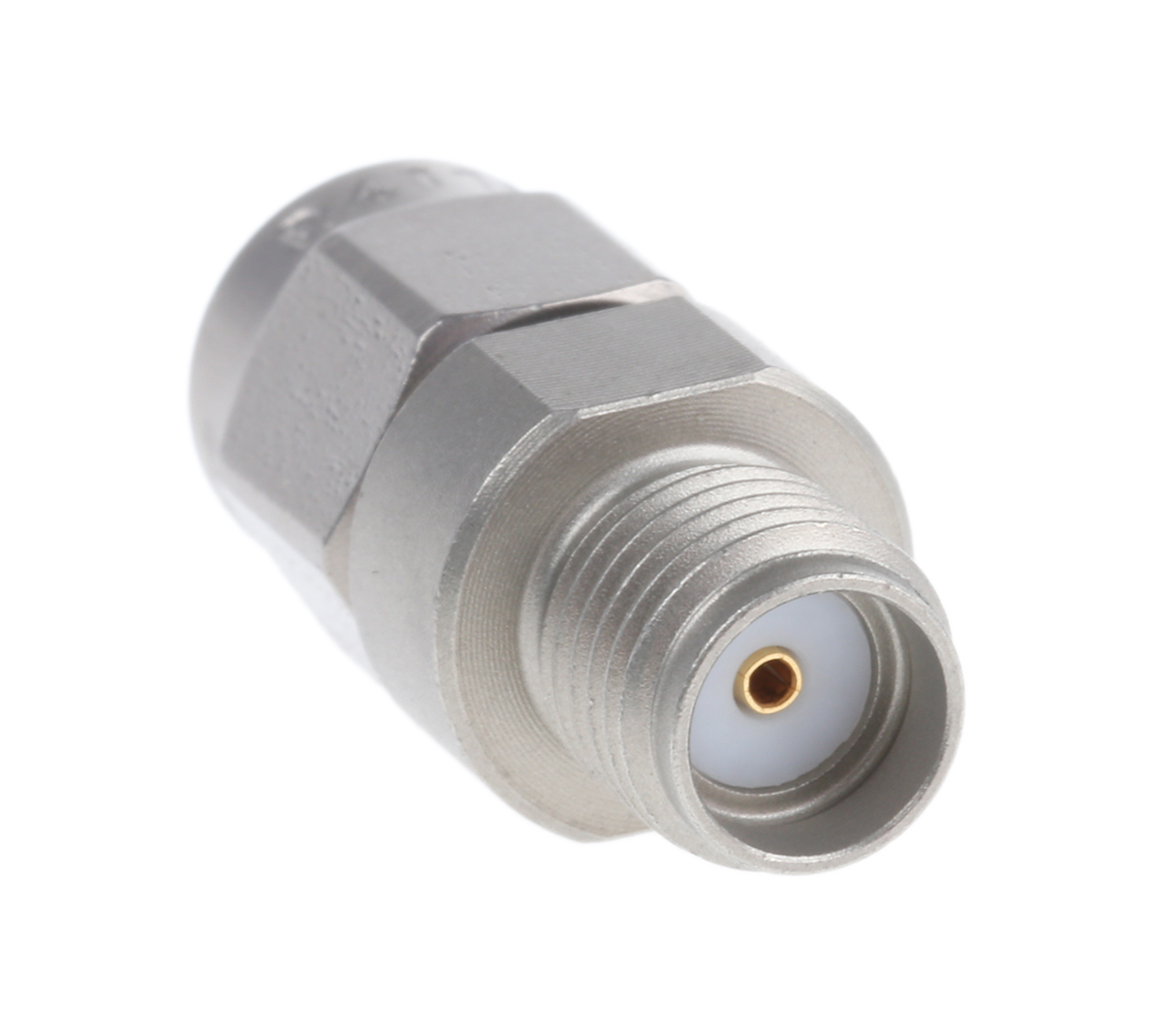

50Ω RF Attenuator Straight SMA Connector SMA Plug to Socket 20dB, Operating Frequency 18GHz
Manufacturer:
Radiall
Manufacturer Part No:
R411820121
Enrgtech Part No:
ET16791984
Warranty:
Manufacturer
£ 88.33
Checking for live stock
Interface Type:
SMA Plug to Socket
Attenuation:
20dB
Body Orientation:
Straight
Impedance:
50Ω
Operating Frequency:
18GHz
Contact Material:
Stainless Steel
Connector Type:
SMA
Gender A:
Male
Gender B:
Socket
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=8032&DisplayLogo=False
