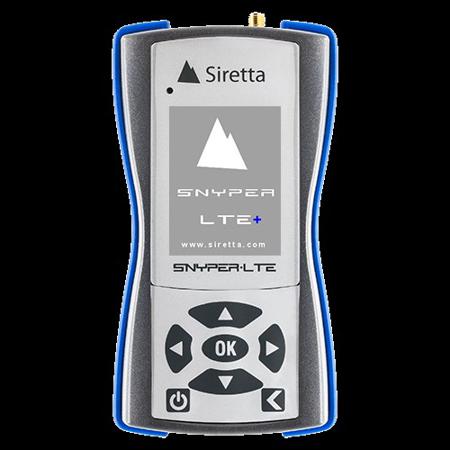

SNYPER-LTE+ SPECTRUM (EU) V2 The SNYPER-LTE+ Spectrum (EU) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE, 3G/UMTS & 2G/ GSM European networks. The SNYPER-LTE+ Spectrum (EU) does not require a SIM in order to provide network survey results. Features & Benefits Enhanced cellular surveying of new and existing installations on 4G / LTE, 3G / UMTS and 2G / GSM networks
Establish most suitable operator for application
Evaluate your “preferred” MNO’s performance
Determines “hotspots” & assists with antenna alignment, through Siretta’s liveSCAN feature
Results are reported in CSV & graphical HTML format
SIM free operation on all bands and technologies
Complete network breakdown and summary results Additional Features The SNYPER-LTE+ Spectrum is supplied with an omni-directional antenna to detect “hotspots” in buildings and perform site surveys and also includes a directional antenna kit to perform point-to-point antenna alignment. The SNYPER can survey the local network and display results from all discovered cellular cell towers observed in the area. Results are ordered from highest to lowest “visible” base-station signal and the key network parameters of each are displayed. Physical Interfaces 1 x USB 2.0 FS (12 MBits/s)
1 x SMA female cellular antenna connector
1 x Red LED charging indicator
1 x 2.4” Diagonal QVGA 240 x 320 RGB TFT
1 x Tactile multifunction keypad Supplied Accessories 1 x General Purpose Omni-Directional Antenna
1 x 2600MHz Omni-Directional Antenna
1 x LiveSCAN Antenna
1 x 0.5m USB Mini Cable
1 x 1.5M Extension Cable for LiveSCAN Antenna
1 x Multi-Region Power Supply UK / EU / US / AU Certifications CE
RoHS
